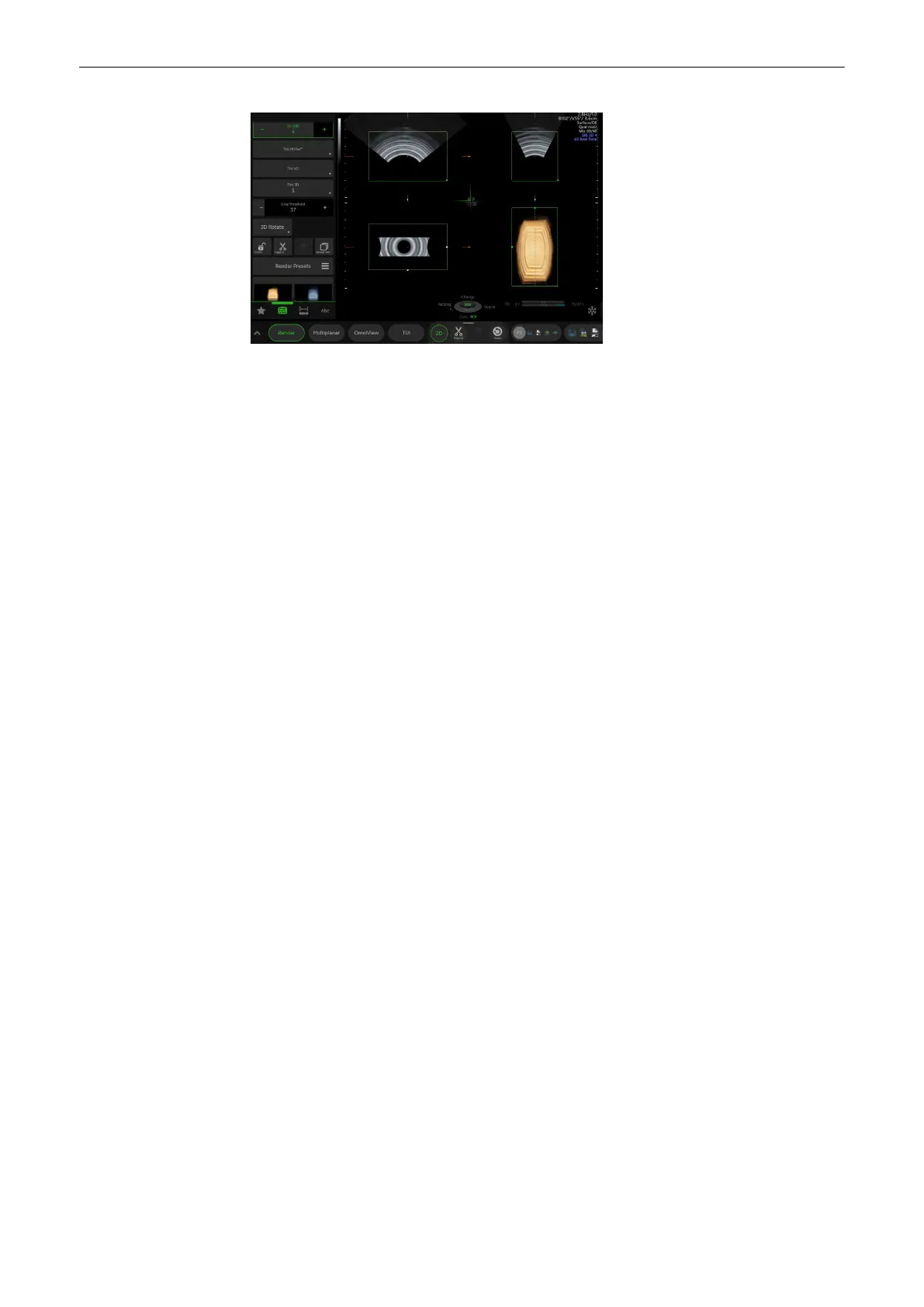

Figure 8-7 Volume Visualization Mode
Render Opens Render Mode.
Multiplanar Opens Multiplanar Mode.
TUI Opens TUI Mode.
Omniview Opens OmniView Mode
Render Menu Controls
Edit Light The Light source position can be changed with the trackball to any position or with
the preset buttons to dedicated positions. The current position is shown with help of
the Light Icon.
Render Presets Selects the desired render preset.
3D: SRI Applies the filter to the rendered 3D image only.
2D : SRI Applies the filter to the rendered 2D image only.
MagiCut Displays the MagiCut menu.
Fix ROI The image data outside of the render box will be shown dimmed.
Zooming doesn't cut off parts of the image.
3D Contr. Adjusts the contrast.
3D Brightn. Adjusts the brightness.
Mix Adjusts value between the two selected render modes and gray threshold low of 3D
images.
Gray thresh. Displays the Gray Threshold and adjusts the value.
SonoRenderlive Selects SonoRenderlive and adjusts value of the sensitivity.
Quality This control improves the resolution by reducing the frame rate. Respectively it
reduces the resolution by increasing the image frame rate.
Vol. Angle Adjusts the Volume Angle.
Save Saves the preset.
B Mode Quality Switches the B Mode Quality on/off.
3D Rotate Opens 3D Rotate menu.
Init Sets all transitions and rotations back to the initial acquisition mode.
XL Changes to wide format.
3D and 4D Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4 8-15
