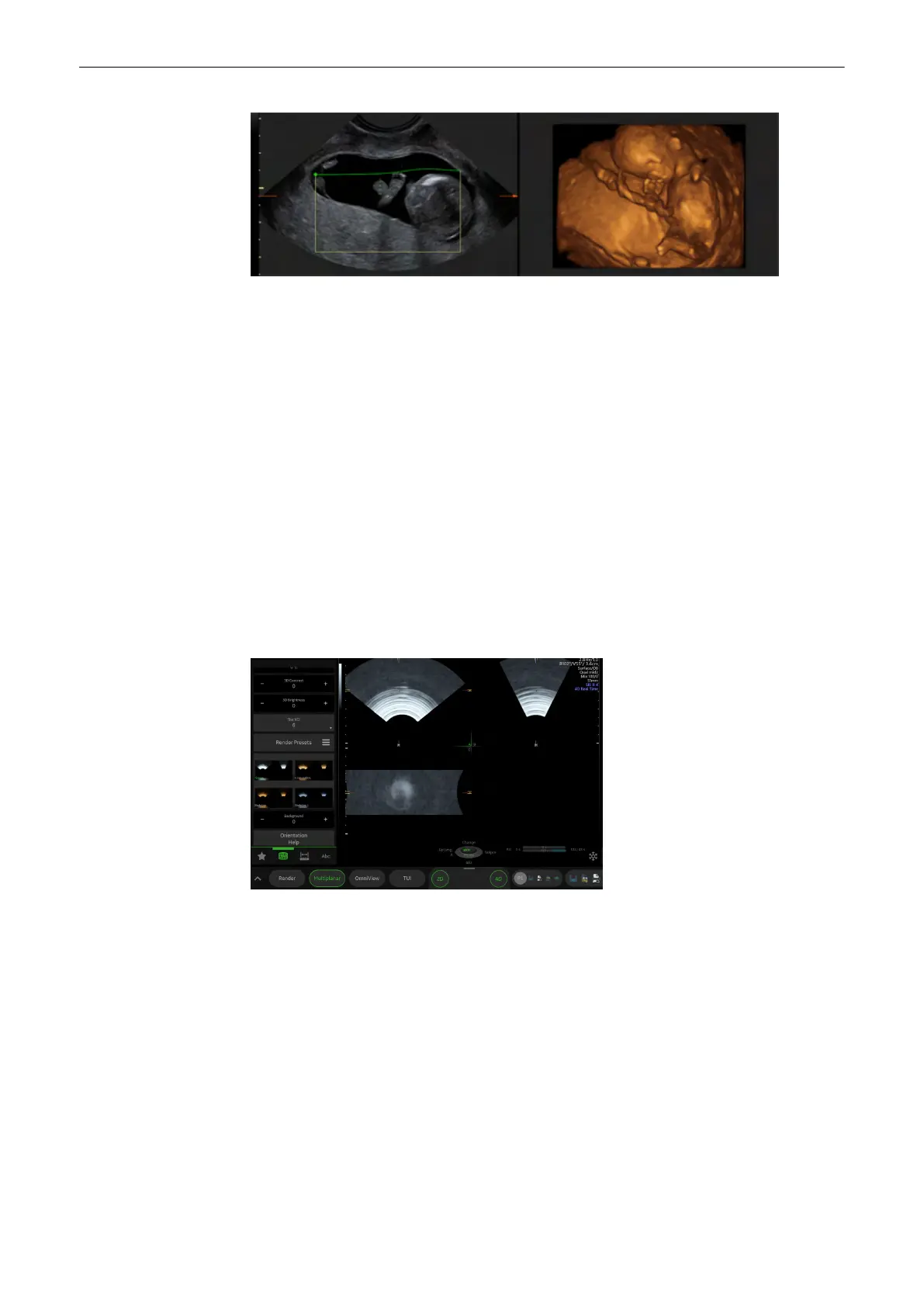

Figure 8-9 Screen display: Sono RL on
Using SonoRender
live
1. Start the Render Visualization Mode.
2. Press the Sono RL .
3. To adjust the distance between the render start position and the render object, control
the sensitivity value using -/+ button.
Info
In the case that Sono RL is not used, the Render Start line can also be modified manually.
Press the trackball button Curv to activate Curved Render Start and move the trackball to
modify the line.
8.7.2 Multiplanar
Possible Acquisition Modes:
•
4D Real Time
•
3D Static
Figure 8-10 Multiplanar
Render Opens Render Mode.
Multiplanar Opens Multiplanar Mode.
TUI Opens TUI Mode.
OmniView Opens OmniView Mode.
Multiplanar Menu Controls
Render Preset Selects the desired render preset.
3D Contr. Adjusts the 3D Contrast.
3D Brightn. Adjusts the 3D Brightness.
Gray Thresh. Displays the Gray Threshold and adjusts the value.
3D and 4D Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4 8-17
