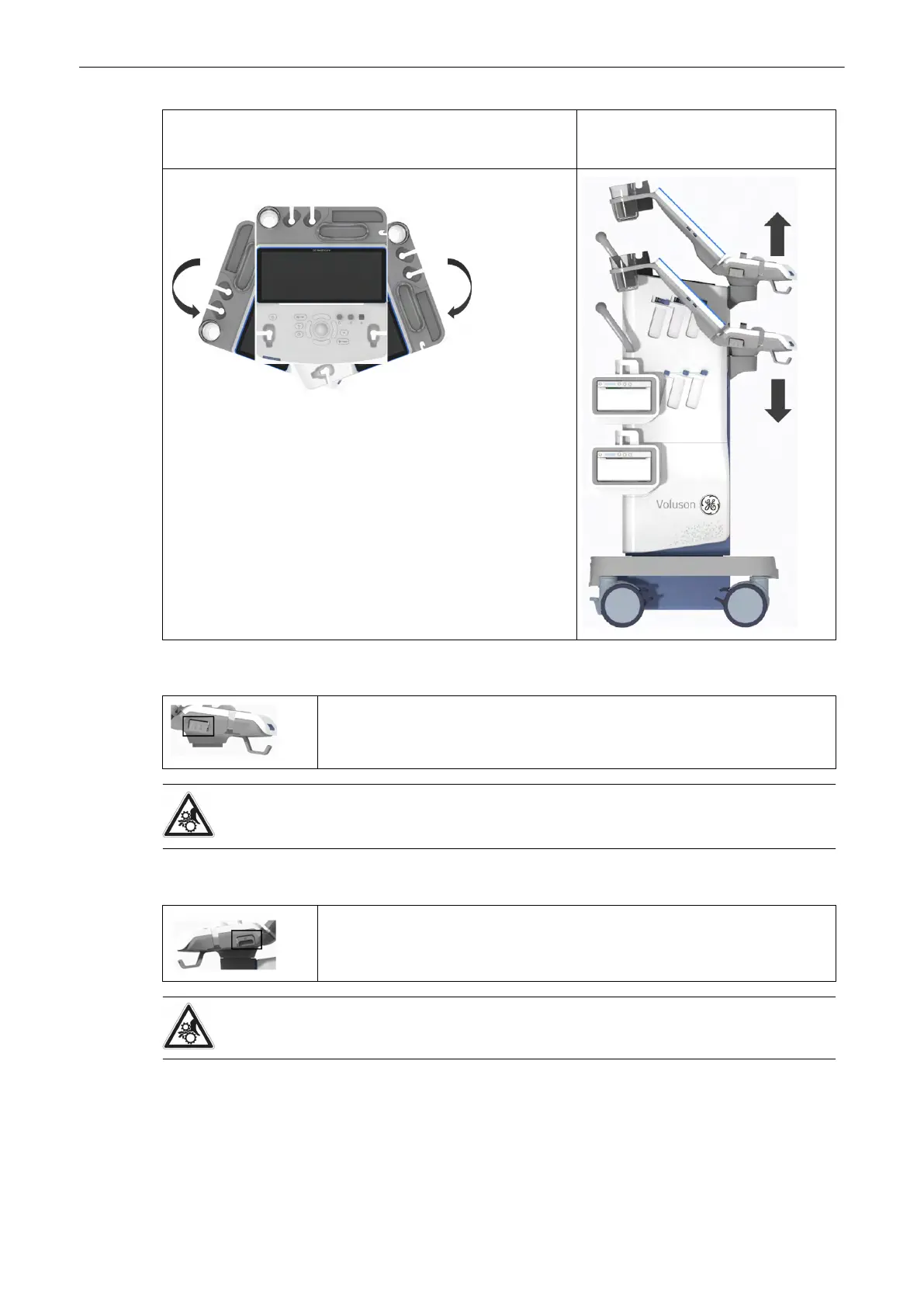

Rotate console ; see 'Rotation of the Control Console'
on page 3-4
Adjust console height ; see 'Vertical
Movement of the Control Console'
on page
3-4
3.3.1.1 Rotation of the Control Console
Pull the left rotate button to manually turn the console to the desired position. Return
position to lock.
Do not put your hand between the control console and the main body when moving it to the 0
position: Danger of injury!
Do not lift the system from the front of the user interface.
3.3.1.2 Vertical Movement of the Control Console
Manually move the control console upward or downward by keeping the right button pressed
at the user interface.
Make sure that nothing would be jammed while moving.
3.3.1.3 Console-Transportlock
There is a lever for locking and unlocking the control console, mounted at the left side below
the control console. When preparing the system for transport, the lock shall be engaged in
order to secure the console against uncontrolled rotation. The bolt set to the locking position,
the lock catches in when the console is rotated to its center 0˚ position.
System description
3-4
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
