Use the touch rotate controller to rotate around X-Y- and Z-
axis.

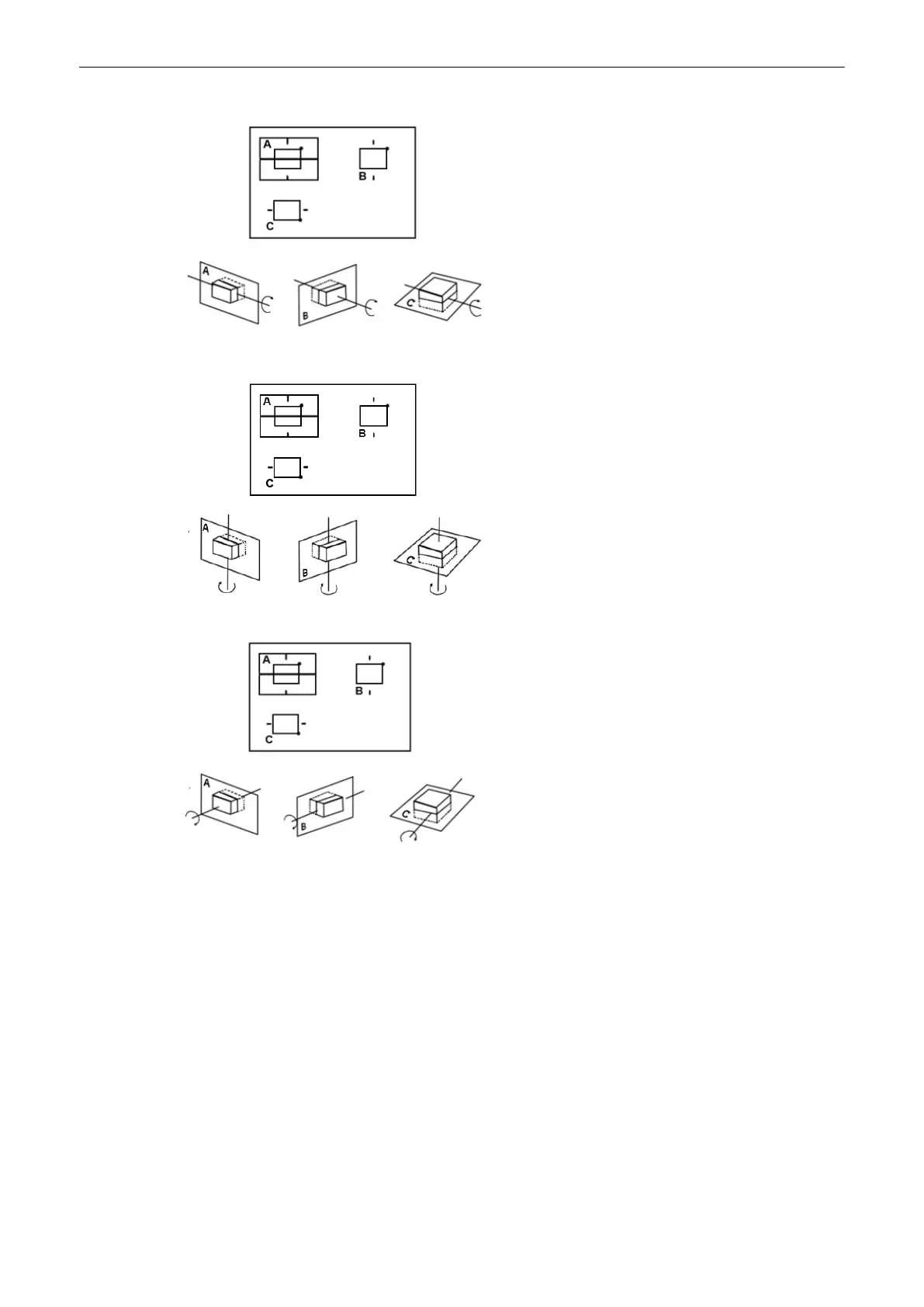

By rotation of the volume body in relation to the screen plane (as shown) the new sectional
planes are calculated in real time and displayed on screen.
Displacement of the volume body relative to the display plane
The translation allows a displacement of the center of rotation along the intersection lines of
the sectional planes A, B and C. The displacement of the center of rotation leads to the display
of parallel sectional images.
To perform parellel slicing of images use the
Parallel shift
touch button.
3D and 4D Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4 8-5
