3. Select the
Exit
button to close the menu.
8.8.8 Probe Orientation
In order to simplify orientation in a 3D or 4D data set the user can activate the display of
directions like cranial, caudal, left, right, anterior, posterior at the border of the 3D or 4D data
set. The user has to select the position and the rotation of the probe in respect to the patient
(or in obstetrics in respect to the fetus) at the time of acquisition. Then the actual display of the
directions has to be activated manually. When the volume is rotated the orientations at the
border of the image are automatically adjusted accordingly. The display remains active until a
new acquisition is performed or until it is turned off by the user. If the display is activated and
the data set is saved, the probe orientation settings are stored in the data set. If the display is
turned off however, probe orientation settings are not stored.
Caution
Ensure that the actual probe position corresponds to the probe orientation configuration.
Special accuracy is required in Acquisition Mode 4D. Moving the probe can lead to errors in
displayed directions with respect to the displayed image.

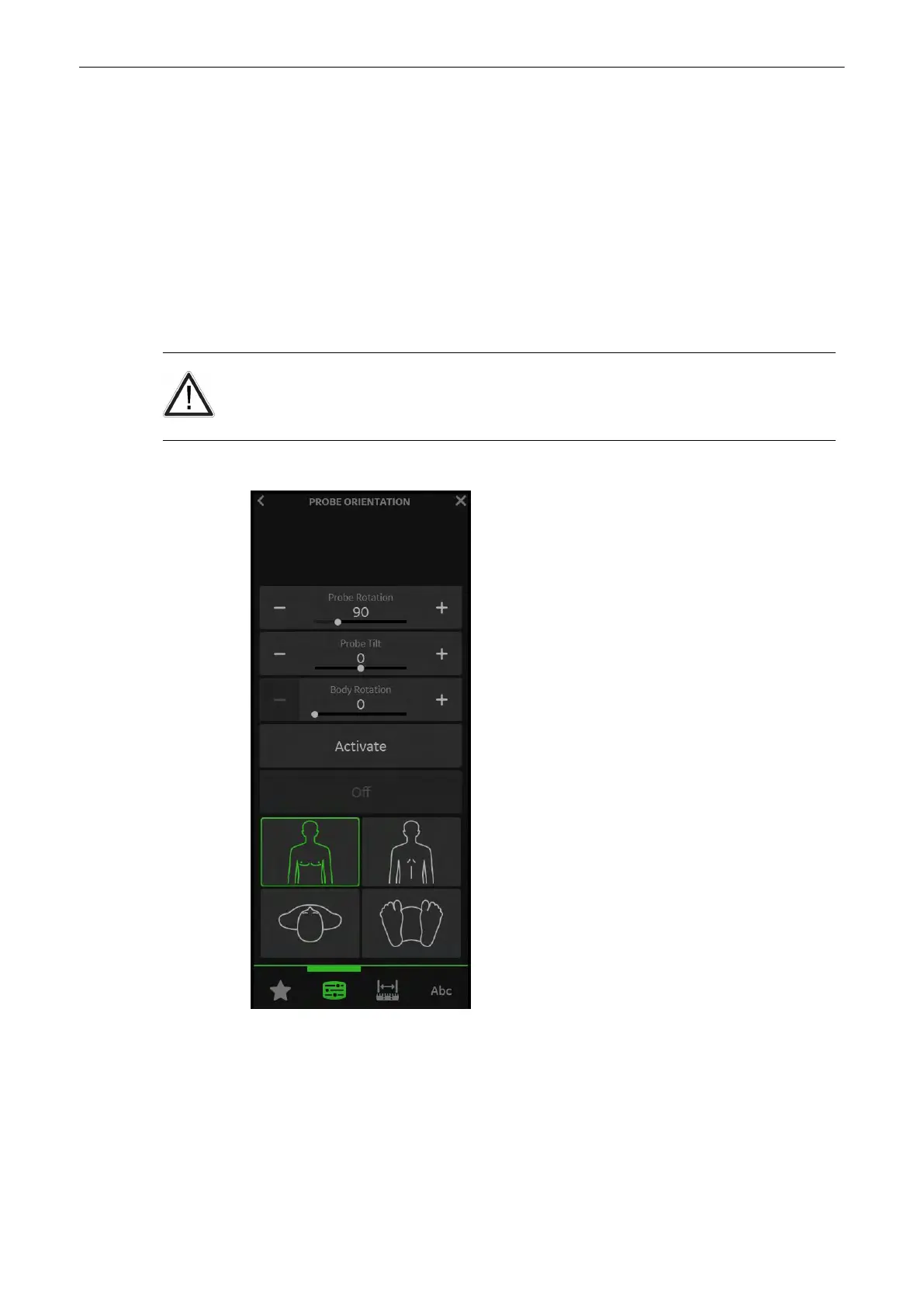

Probe Orientation Menu
Figure 8-34 Probe Orientation Menu
Exit
Press
Exit
to go back to the previous menu.
Off
Return to 3D/4D menu without applying changes. The orientation marks in 3D/4D
mode are hidden. Reset of probe orientation setting to default values. This key is
only available if probe orientation menu has been activated once.
3D and 4D Mode
8-50
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
