6.2.7 Pulsed Wave Doppler (PW)
PW Doppler is typically used for displaying the speed, direction, and spectral content of blood
flow at information.

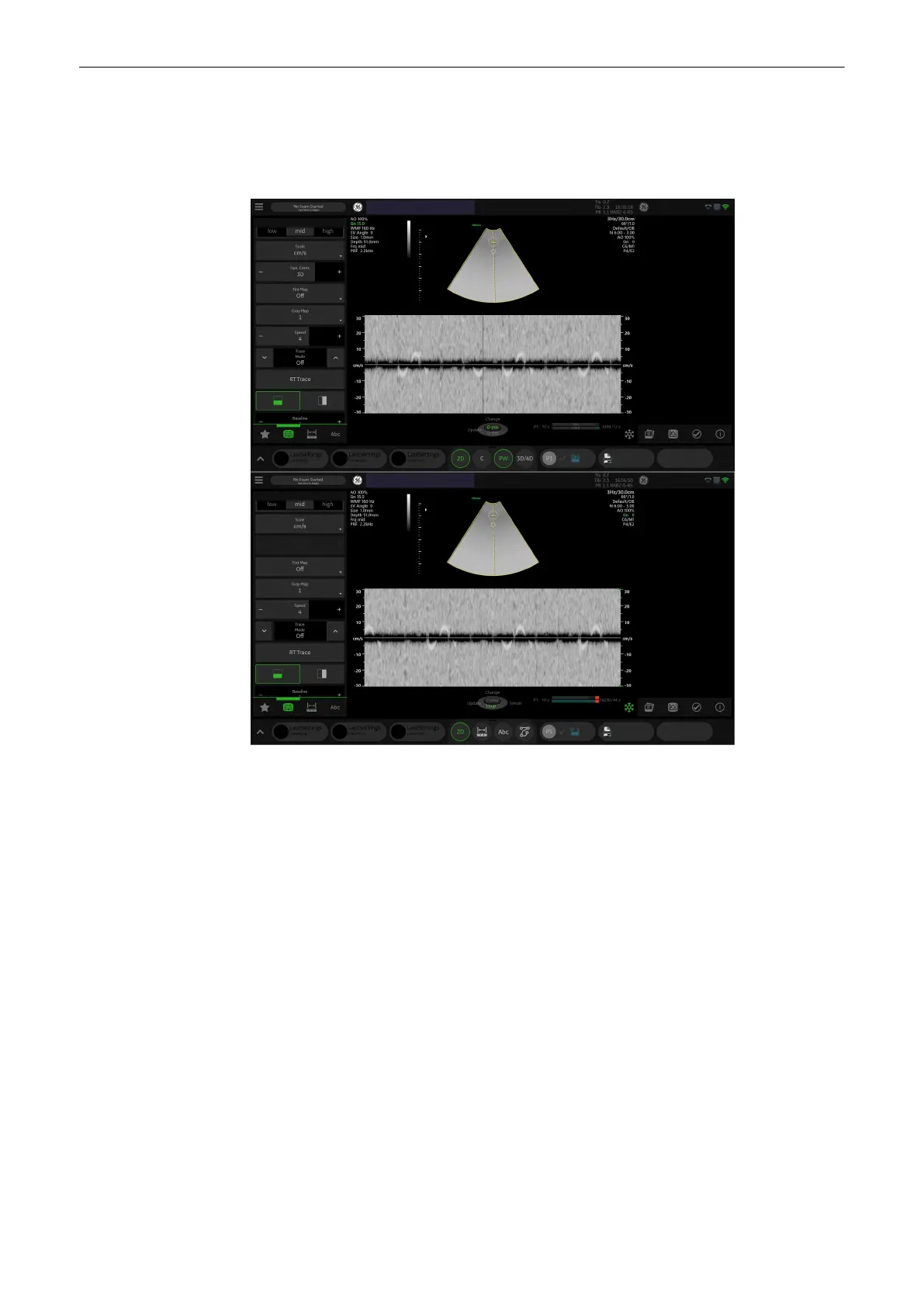

Figure 6-7 PW-Mode: Scan Mode and Read Mode
Using PW Doppler
1.
Touch
2D
on the user interface to start B-Mode.
2. Optimize the B-Mode image.
3. Touch PW on the user interface to start PW Doppler Mode.
4. The
PW Main
menu appears.
Hint
To change PW Gain rotate the 2D-button (only in run mode).
Info
Also see
'B-Mode'
on page 6-4 and
'Button description'
on page 3-5.
PW Menu
Display Format Select the desired display format.
RT Trace Real Time Trace on/off
Angle
Angle correction. The blood flow velocity calculation based on the incident angle of
the ultrasound onto the axis of the vessel can be determined this way.
Cine #
Select the desired Cine #.
Speed
Changes the speed at which the timeline is swept.
2D Mode
6-14
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
