Image info
Screen reference: 8
Caution
A lossy image compression can reduce image quality which can lead to a false diagnosis!
Light position icon
Screen reference: 9
The light position icon indicates the current position of the light source.
8.5 Volume Pre mode

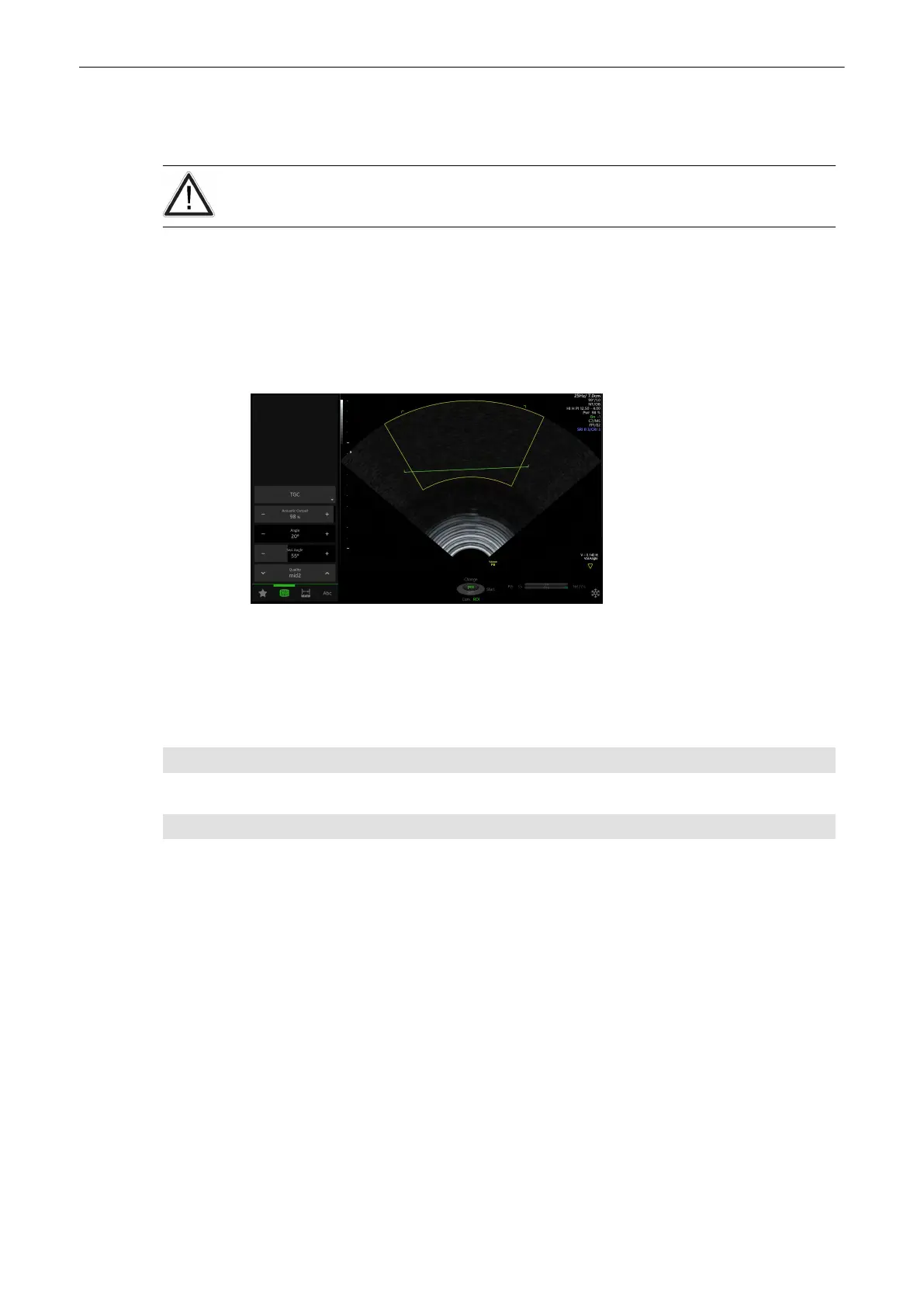

Figure 8-4 Volume Pre mode
2D/C(CFM)/PW/M Opens 2D, C(CFM), PW or M Mode
3D/4D sub menus
:
VCI-OmniView/VCI-A/3D/4D/
Volumne Analysis
Opens VCI-OmniView, VCI-A, 3D,4D or Volumne Anaylsis mode. One is always on
if 3D/4D button is pressed.
Settings
3D/4D User Programs Selects the desired user program.
Controls
TGC
Opens the TGC slider
Init
Sets all transitions and rotations back to the initial acquisition mode.
Acoustic Output
Adjusts the Acoustic Output
Vol.Angle
Adjusts the Volume Angle
Quality
This control improves the resolution by reducing the frame rate. Respectively it
reduces the resolution by increasing the images frame rate
3D CRI
Selection of the 3D CRI function independent from B-Mode imaging
Note
It is available to control Focus Depth, Focus Zones Quality, Vol.Angle and TGC Curve with
touch gestures and guide lines.
Note
It is available to control Gain and Focus Depth with Hard key.
8.6 Volume Acquisition Modes
3D and 4D Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4 8-11
