button highlighted in green: The measurement is selected for editing.
•
black background: The measurement is available/done.
•
black background, text grayed: The button is disabled.
Note
It is possible to configure measurements in the measure setup as well as performing manual
measurements.
Guide
In combination with SonoCNS a
Guide
appears and can be used if desired. The
Guide
leads
through SonoCNS and helps with clinical information.

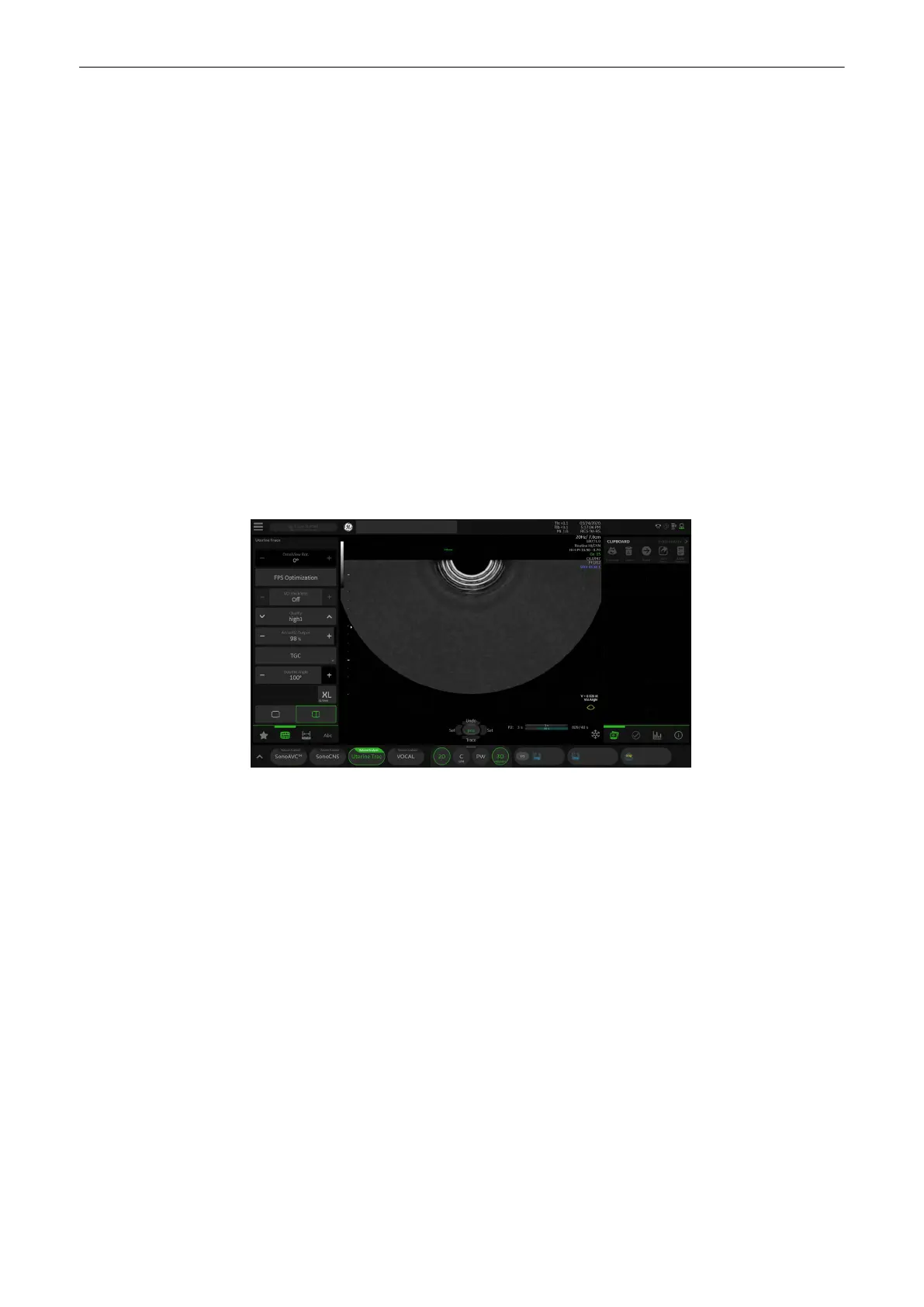

8.8.6.5 UterineTrace
The Uterine Trace is a guided way to visualize the coronal plane of the uterus to recognize
malformations or other anatomical variants.
Note
Only available in 3D mode and 3D pre-mode.
Note
Uterine Trace is only available for GYN probe applications.
Invoke from 3D pre-mode:
1. Select any preset with GYN application.
2. Press
3D
button on UI,
Volume Analysis
and
Uterine Trace
on the touch screen.
3. Follow the instructions of the user
Guide
.
4. 3D is automatically activated to display coronal plane based on line drawn.
Invoke from 3D mode:
1. Press
Volume Analysis
and
Uterine Trace
on the touch screen.
2. Follow the instructions of the user guide.
3. Draw a line along the endometrium to display the coronal plane.
4. Press
New Line
to clear the current line and to draw a new line.
5. Press
New Aquisition
to start a new Volume Aquisition.
6. Choose
Uterine Classification
to classify the variant of uterine.
3D and 4D Mode
8-46
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
