SonoAVC™
follicle Main Menu

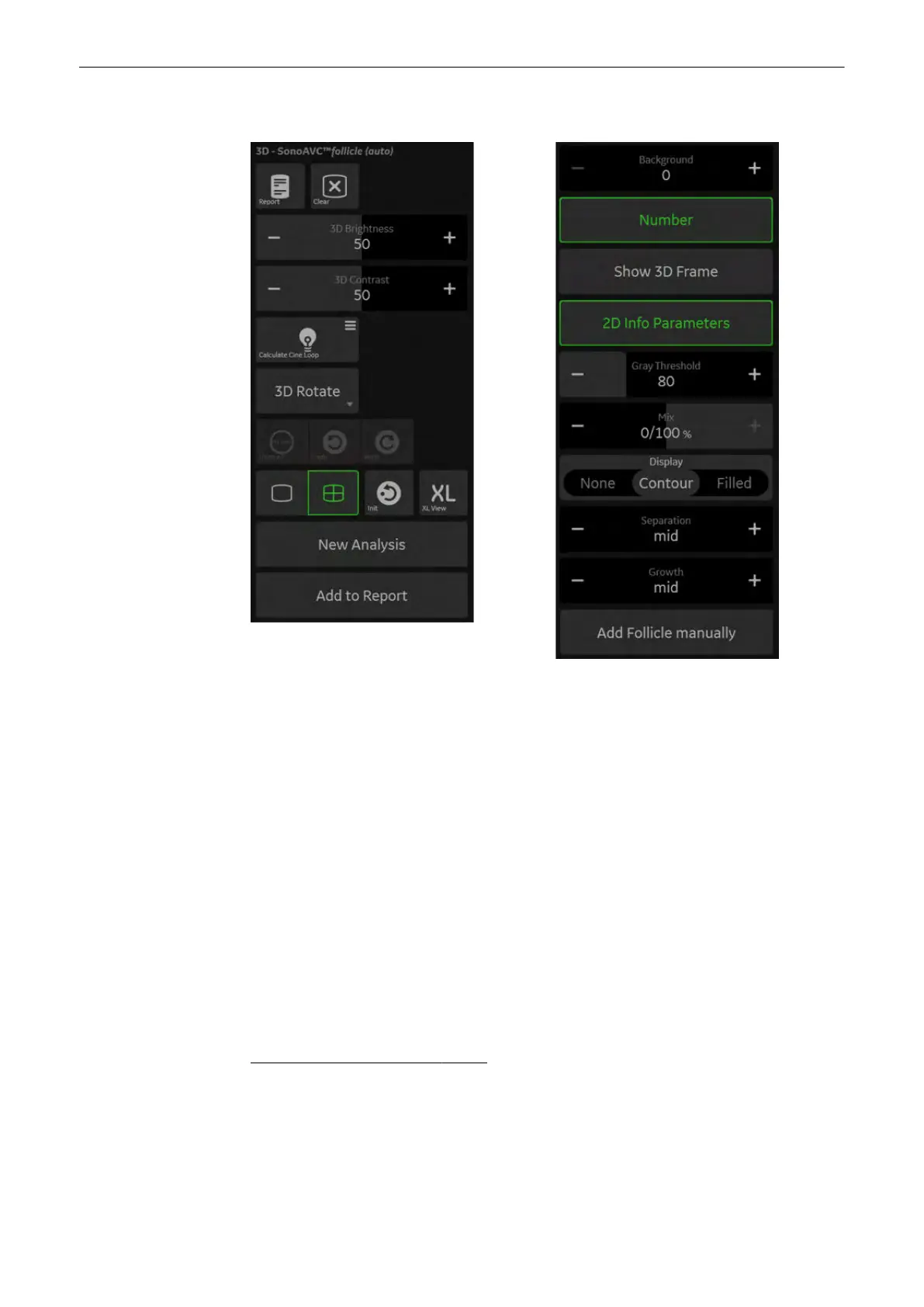

Figure 8-27 SonoAVC™follicle Main Menu
Add Follicle manually Only available when semi-auto is selected.
Not detected or wrong detected follicles may be added.
Add to Report Adds the data to the report.
Cut/Merge
•
Undo All : Undo all edits.
•
Redo : Redo the last edit.
•
Undo : Undo the last edit.
Init Set all translations and rotations back to the initial acquisition position.
Display
•
None : No visible segmentation.
•
Contour : Segmentation are shown with a contour-line.
•
Filled : Segmentation are filled with color.
Number Hide or show numbering next to the segmentations, according to the index.
Using SonoAVC™
follicle
Follicle Measurement Method:
manual
1. Scan and freeze or reload a follicle volume data set.
2. Switch sect. plane A to full size if not present.
3. Adjust the sect. plane A with x, y, z rotation, parallel shift and zoom to achieve the
correct measuring plane.
3D and 4D Mode
8-40
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
