6.2.1 B-Mode
B-Mode is intended to provide two-dimensional images and measurement capabilities
concerning the anatomical structure of soft tissue.

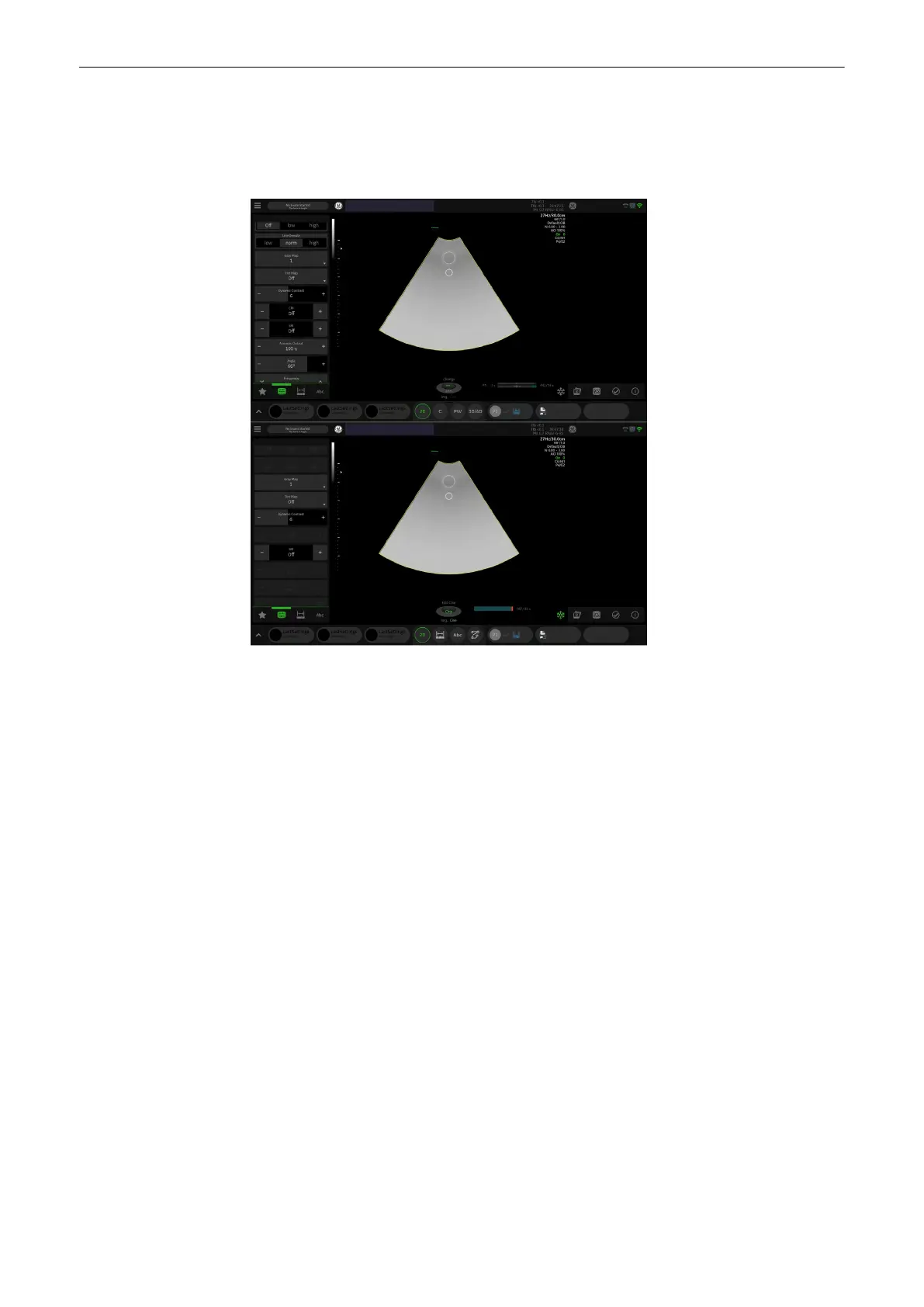

Figure 6-3 B-Mode: Scan Mode and Read Mode
Using B-Mode
1.
Start a new exam and enter all relevant patient information.
2. Connect a probe to the system.
3. Select the probe and a preset.
4. The
Main 2D
menu appears.
5. Perform the scan.
6. Press Freeze.
Hint
To change 2D Gain rotate the 2D button or use on screen gestures. To change the Frequency
use the touch panel.
Info
Also see
'Button description'
on page 3-5.
Note
The availability of some functions or features depends on the probe and ultrasound system
used.
2D Mode
6-4
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
