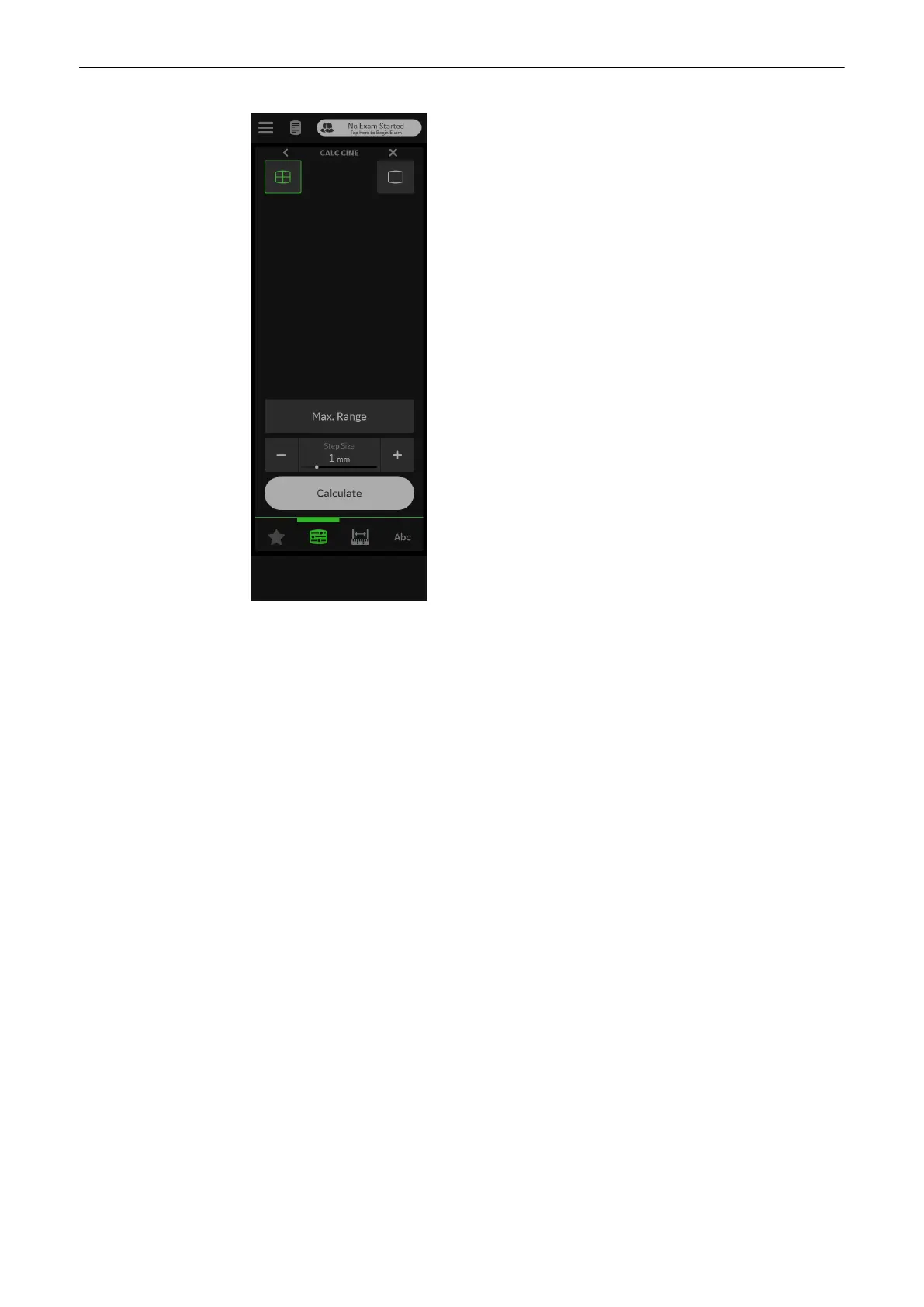

Figure 8-20
3D T
ransl. Cine
Menu
Step Size
Defines the amount of translation between adjoining 3D images.
Calculate
Start the calculation of the cine sequence.
1.
Select the
Step Size
.
2.
Select the
Calculate
button.
3D Slice Cine
2D images are moved in a translational movement through a volume.
3D and 4D Mode
8-32
Voluson™ SWIFT / Voluson SWIFT+ Instr
uctions For Use
5831612-100 R
evision 4
163
