The Voluson™ SWIFT / Voluson SWIFT+ provides an Image Management System that allows
fast and extremely easy image management. It allows users to view, print and transfer images
stored in the Voluson™ SWIFT / Voluson SWIFT+. In addition, it allows users to send and
receive DICOM images over the DICOM Network.
Note
The images are stored according to the patient’s ID. If there is no ID assigned to the current
images, enter an ID for proper storing.
The results of calculations are recorded in application dependent patient worksheets.
Note
•
To Backup or Export exams to USB, please confirm that the USB storage medium used
is clean and not scratched! When the SSD has reached its maximum capacity a
message will be displayed on the screen.
•
It is recommended to copy data stored on a USB every three years onto a new disc to
avoid data loss.
9.1 Open Archive
No exam started
To open the Archive touch the Menu button and then select the
Archive
button.
Exam started
To open the Archive, touch the Menu button and then select the
Archive
button.
Usage without ultrasound hardware/probe
The Archive can be started without a connected probe.
If no probes are connected, following functions are disabled:
•
Current Patient
screen
•
Use as current
•
Reopen Exam
Image History
and
Exam Review
(Reload) work without any change.
The Archive menu appears:

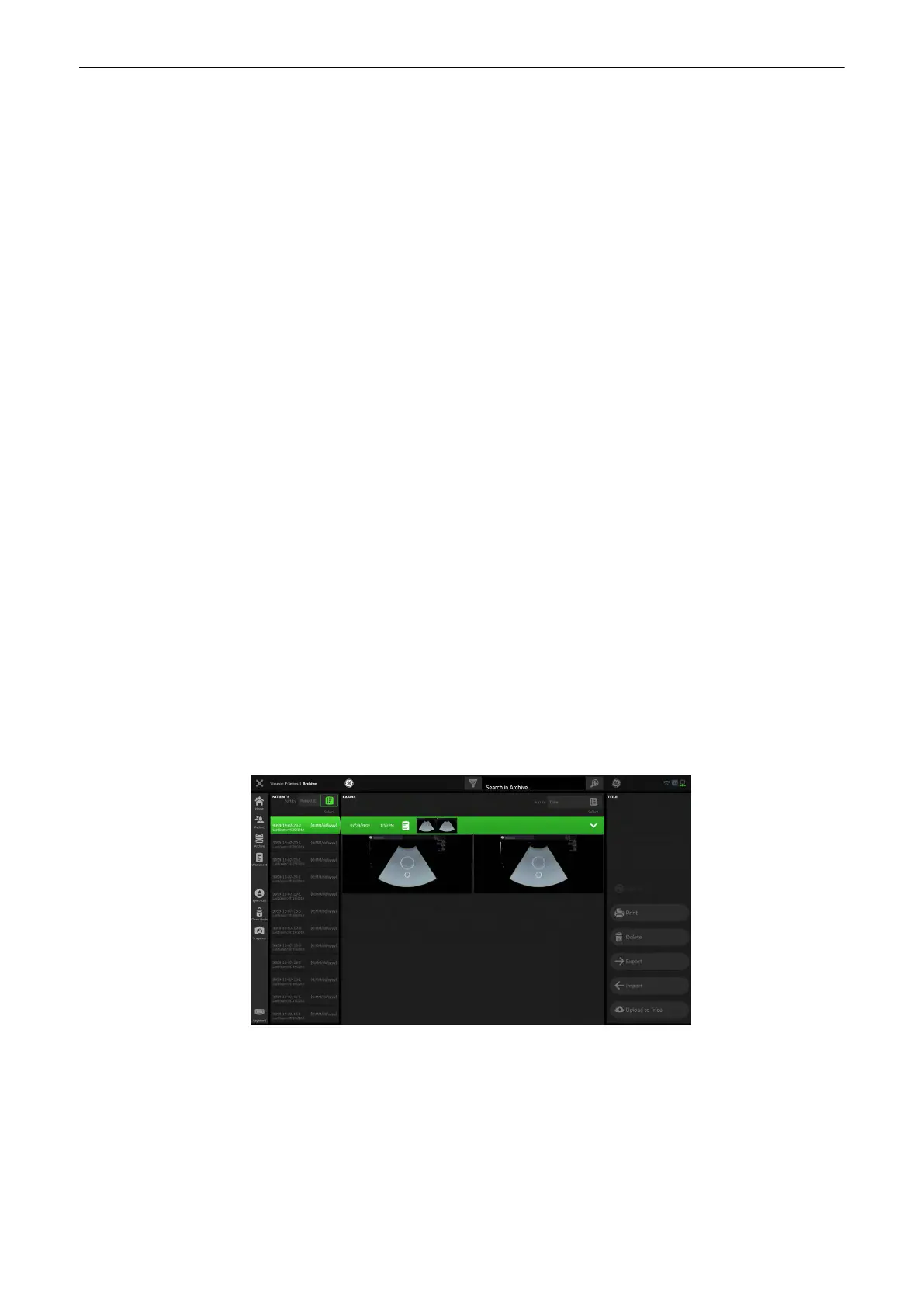

Figure 9-1 Archive menu
Archive
9-2
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
