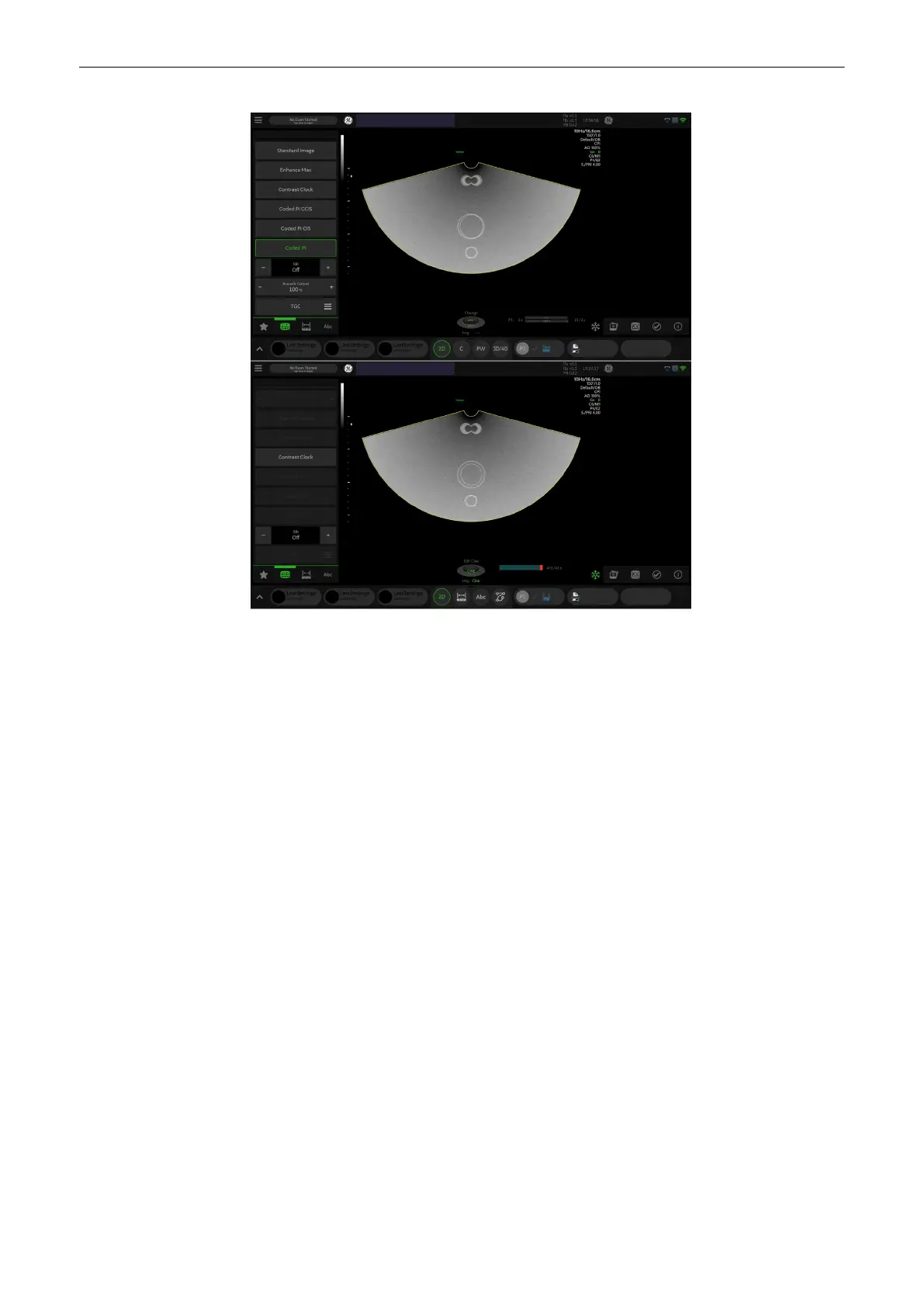

Figure 6-10 Contrast: Scan Mode and Read Mode
Menu
Coded PI
Contrast Transmitter Mode: Coded PI
Standard Image
Contrast Transmitter Mode: Standard Image (2D Image)
Enhance Max
Sets the acoustic output to its maximum setting (100%), it does not take care about
any gain correction
CIS CIS
(Contrast Imaging Simultaneous). Simultaneous display of the 2D image and
the Contrast Image in a dual format left/right.
SRI
Speckle Reduction Imaging ( SRI ) is an adaptive algorithm to reduce the unwanted
effects of speckle in the ultrasound image. Image speckle usually appears as a
grainy texture in otherwise uniform areas of tissue. Its appearance is related to
image system characteristics, rather than tissue characteristics, so that changes in
system settings, such as probe type, frequency, depth, and others, can change the
appearance of the speckle. Too much speckle can impair image quality and make it
difficult to see the desired detail in the image. Likewise, too much filtering of speckle
can mask or obscure desired image detail. Extra care must be taken to select the
optimal SRI level. SRI is available in B-Mode imaging and may be used with any
transducer or clinical application when image speckle appears to interfere with the
desired image detail.
Contrast Clock
You can use the Contrast Clock by activating it at the time of injection and
deactivating it at the end of the exam.
CCIS
2CCIS (Colored Contrast Imaging Simultaneous) Simultaneous display of the 2D
image and the Contrast Image on a single format.
Time Delay Time Delay scans images at set intervals, delaying imaging according to the time
delay that you specify.
Accumulation Off Accumulation enhances the displayed flow in an image.
2D Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4 6-19
