2.1.2 Description of symbols and labels
Some symbols used with electrical medical equipment have been accepted as standard by
IEC. They serve for marking connections, accessories, and as warnings.

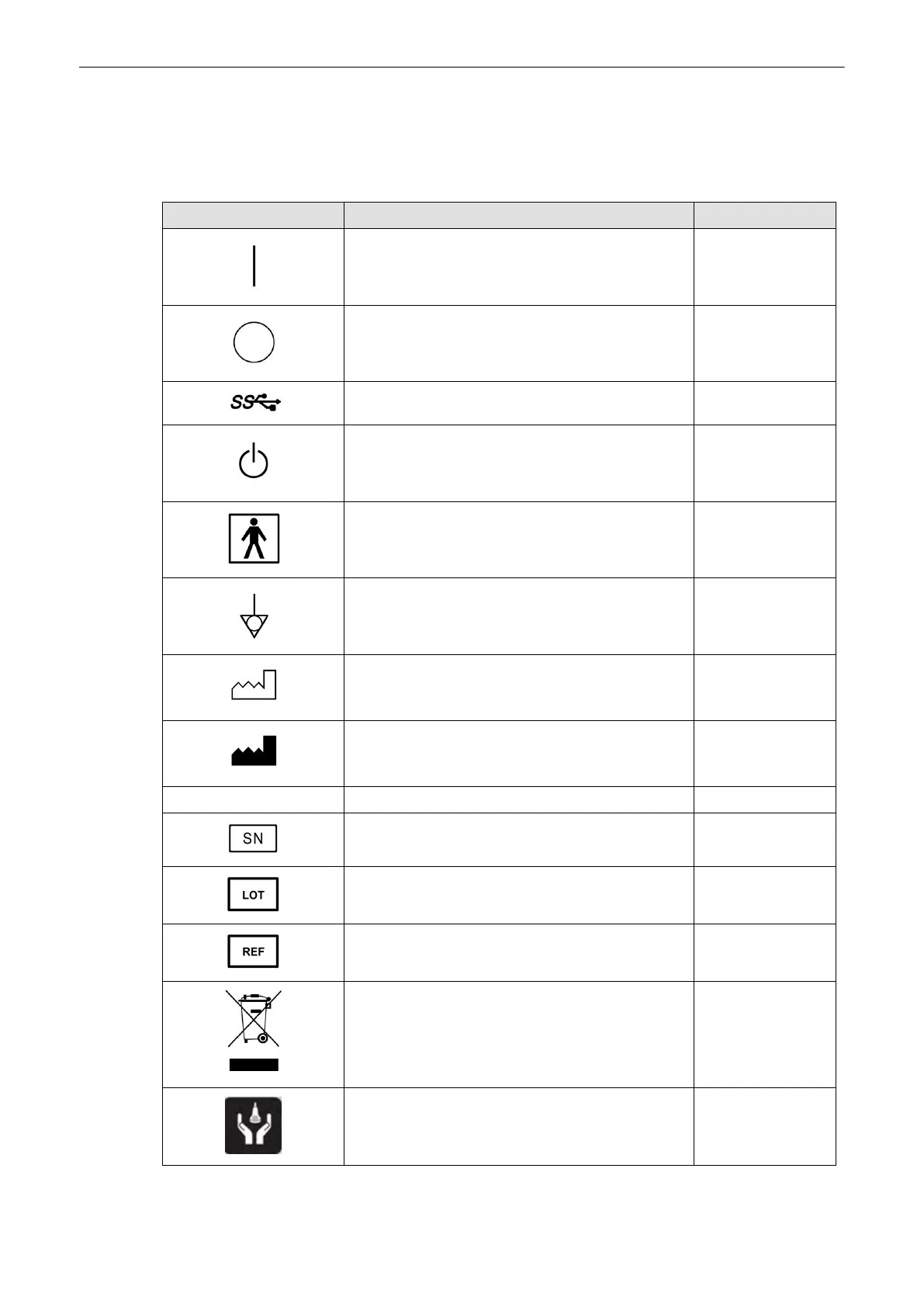

Symbol Meaning Reference
Main power switch ON IEC 60601-1; IEC
60417-5007
Main power switch OFF IEC 60601-1; IEC
60417-5008
USB3.0 USB 3.0 standard
Standby button; Stand-by IEC 60601-1; IEC
60417-5009
Insulated patient applied part (Type BF) IEC 60601-1; IEC
60417-5333
Potential equilibrium connection IEC 60601-1; IEC
60417-5021
This symbol is followed by the manufacturing date of the
device in the form YYYY-MM
ISO 15223-1
This symbol is followed by the name and address of the
manufacturer of the device.
ISO 15223-1
P/N Refers to the Part number of the system. GE crafted symbol
This symbol is followed by the serial number of the device. ISO 15223-1
Batch or lot number ISO 15223-1
Brand and model (reference number) ISO 15223-1
This symbol indicates that the waste of electrical and
electronic equipment must not be disposed as unsorted
municipal waste and must be collected separately. Please
contact the manufacturer or other authorized disposal
company to decommission your equipment according to local
regulations.
'Disposal'
on page 2-18
2012/19/EU (WEEE)
Pictogram on Probe Care Card:
Use care when handling ultrasound probes and protect the
probe head from damage.
GE crafted symbol
Safety
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
