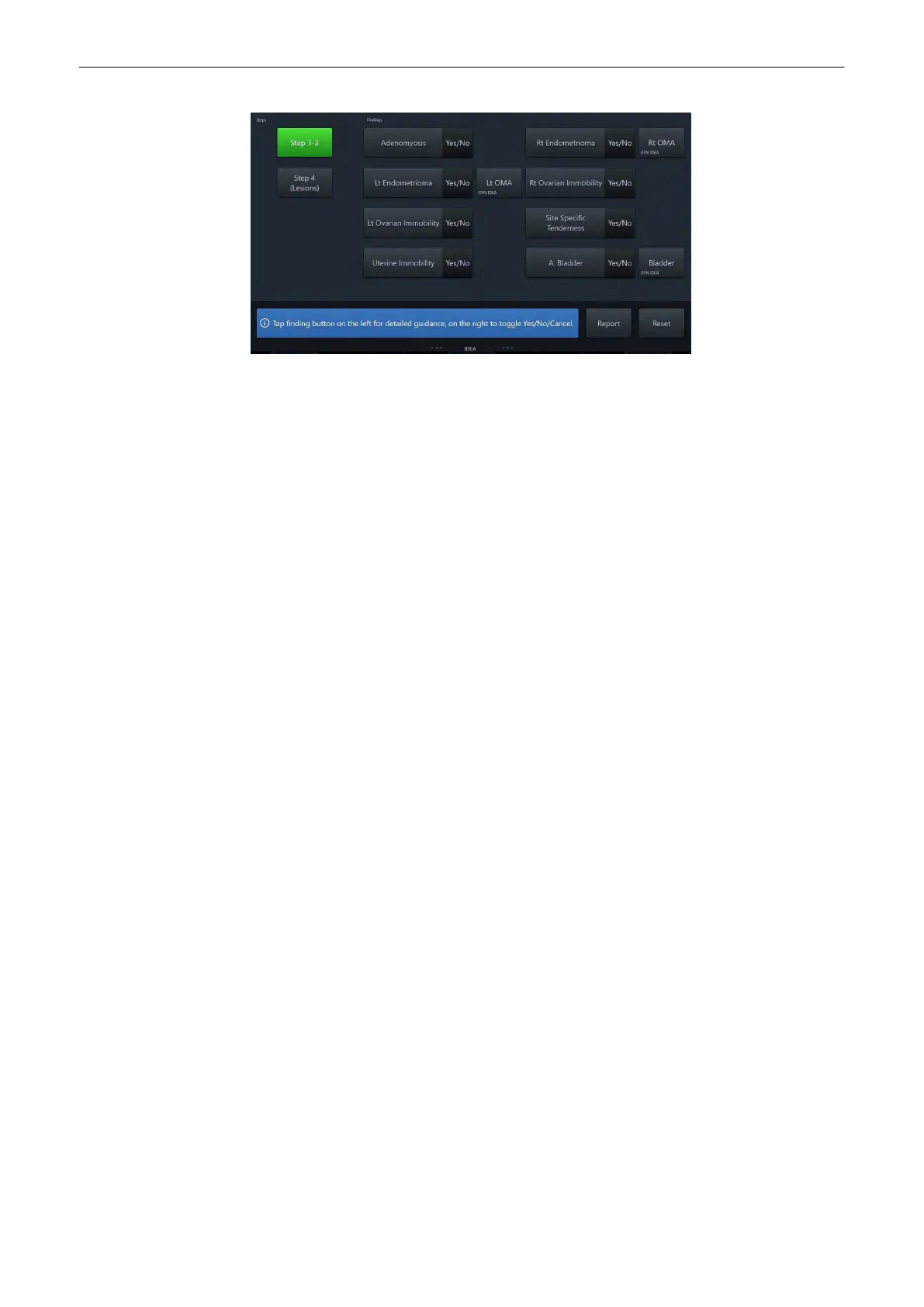

Figure 10-14 Assessment tool (example)
For each step the corresponding
Findings
are displayed. It is possible to select the items
individually (
Yes
/
No
). Press the measurement button to start the measurement. A tap onto
the desired findings button opens the corresponding dialog displaying additional information.
Reset
resets all selections in the IDEA assessment tool.
Report
opens the
Worksheet
with the IDEA page selected automatically.
Measurements and Calculations
10-30
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4
