7. DISASSEMBLY AND ADJUSTMENT
(11) Remove the two M3L6 at head screws holding the left side of Y slider cover.
Some of the washers are installing between the left side of Y slider cover and the Y slider. This depends
on how the Y-slider-cover is tilting. If the washers had been installed do not forget to reinstall the
washers when reinstalling the Y slider cover.
M3L6 at head screw

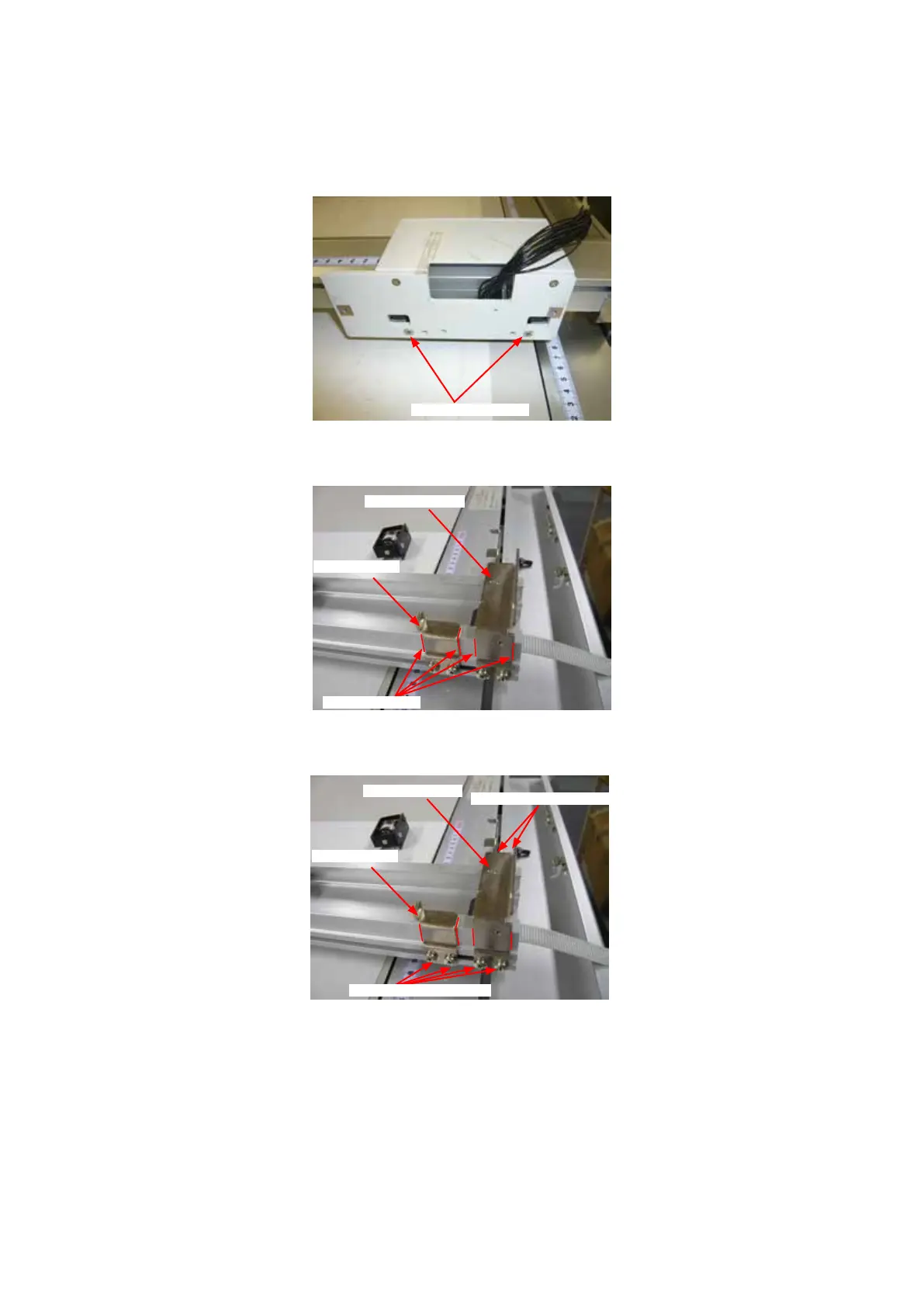

(12) Mark the position for the Y slider stopper and Y bar end bracket by using pencil before removing those
parts as shown in the picture below. (Position to those marks when those parts will be reinstalled.)
Y slider stopper
Y bar end bracket
Positioning marks
(13) Remove the six M4L6 binding head screws holding the Y slider stopper and the Y bar end bracket and
then detach them.
Y slider stopper
Y bar end bracket
M4L6 binding head screw
M4L6 binding head screw
(14) Slide out the Y slider from the Y bar.
