3. OPER ATIONS

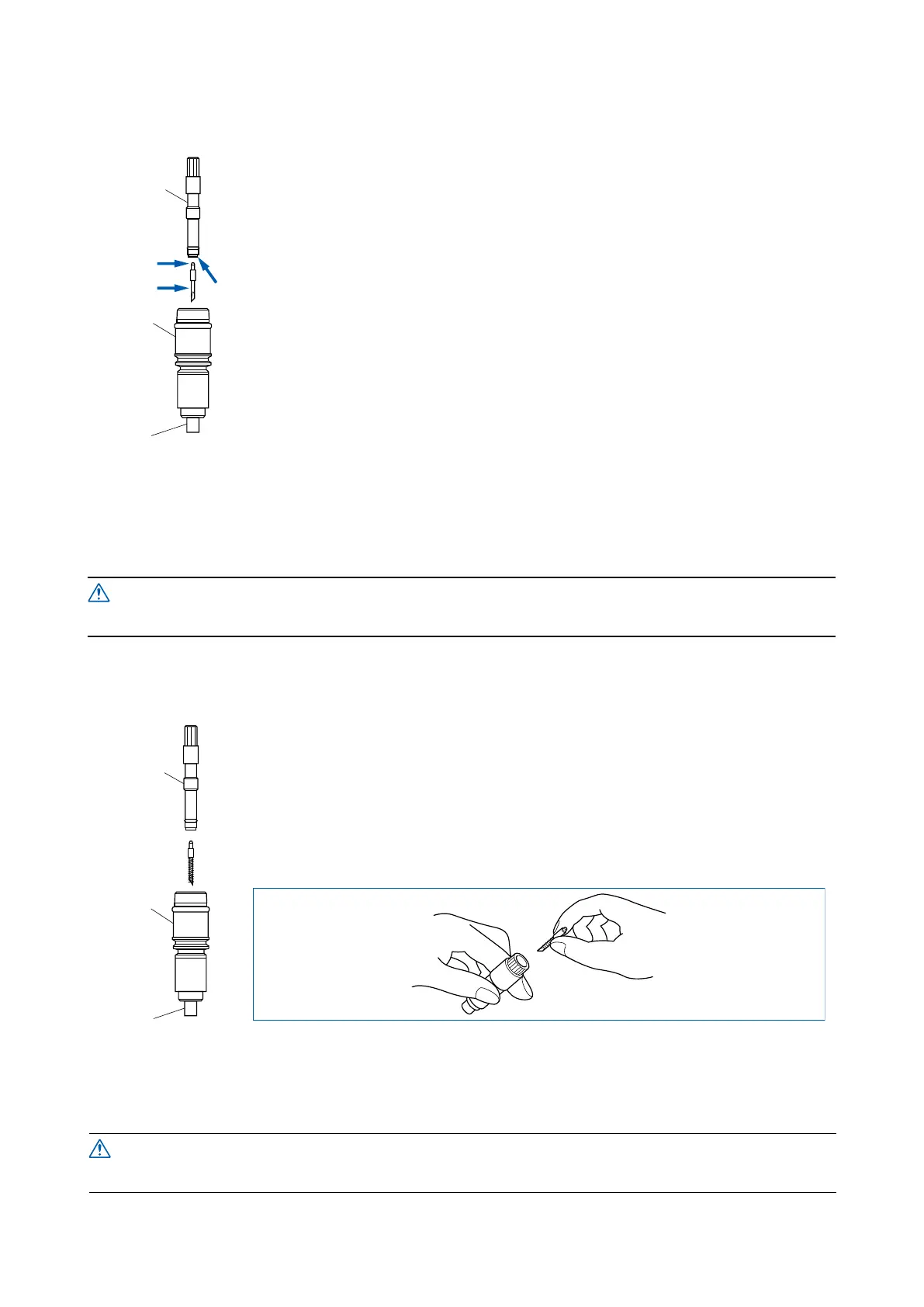

Color of the blade length adjustment knob: Red
(PHP31-CB15-HS cutter pen for 1.5 mm blades)
Holder (B)
Plunger
Holder (A)
(Inside plunger body)
(1) Remove holder (B) by turning the blade length adjustment knob in the
counterclockwise direction.
(2) Remove the blade from holder (A).
(3) With the tip of holder (A) facing downward as shown, insert the new blade.
(4) Make sure the blade is inserted straight into the holder. If the blade is positioned
at an angle, gently tap the plunger to correct the orientation of the blade.
(5) With the tip of holder (A) facing downward, attach the holder cap and then turn
the blade length adjustment knob in the clockwise direction until the blade tip is
visible.
(6) Using your nger, check that the cutter blade rotates smoothly inside the cutter
pen (be careful not to stab your nger at this time).
(7) If the blade does not rotate smoothly or the blade falls off after attaching the cutter
pen to the pen carriage, the inside of the holder is insufciently lubricated.
In this case, apply the grease provided to the three points indicated by arrows in
the gure.
CAUTION
Be careful not to stab your nger when handling the cutter blade.
Color of the blade length adjustment knob: Green
(PHP31-CB15B-HS cutter pen for 1.5 mm diameter blades tted with a spring)
Holder (B)
Plunger
Holder (A)
(Inside plunger body)
(1) Remove holder (B) by turning the blade adjustment knob in the counterclockwise
direction.
(2) Remove the blade and the spring from holder (A).
(3) With the plunger held at an angle, and with the plunger cap pointing upward,
insert the blade with its spring attached into the plunger. Take care that the spring
does not fall off the blade.
(4) Make sure that the blade is inserted straight into the plunger. If the blade is
inserted at an angle, gently tap the plunger to correct the orientation of the blade.
(5) With the plunger still in the upright position, insert the holder cap until you hear it click into place. Turn
the blade adjustment knob in the clockwise direction to adjust the length of the blade.
CAUTION
Be careful not to stab your nger when handling the cutter blade.
