FC2250-UM-251-9370 7-26
7. DISASSEMBLY AND ADJUSTMENT
Regarding replacement of the pen block
There are three type of the pen block.
Each type of Pen Block has been installing on the following serial number of FC2250.
Serial Number Parts number Name of the Pen Block Assembly
D90540480 and before D90510478. 792256711 FC2250 Pen Block Assembly
D09520479, and from D9050481 to D003xxxxx. 792256721 FC2250 (SH) Pen Block Assembly
After D004xxxxx. 792256731 FC2250 (PM) Pen Block Assembly

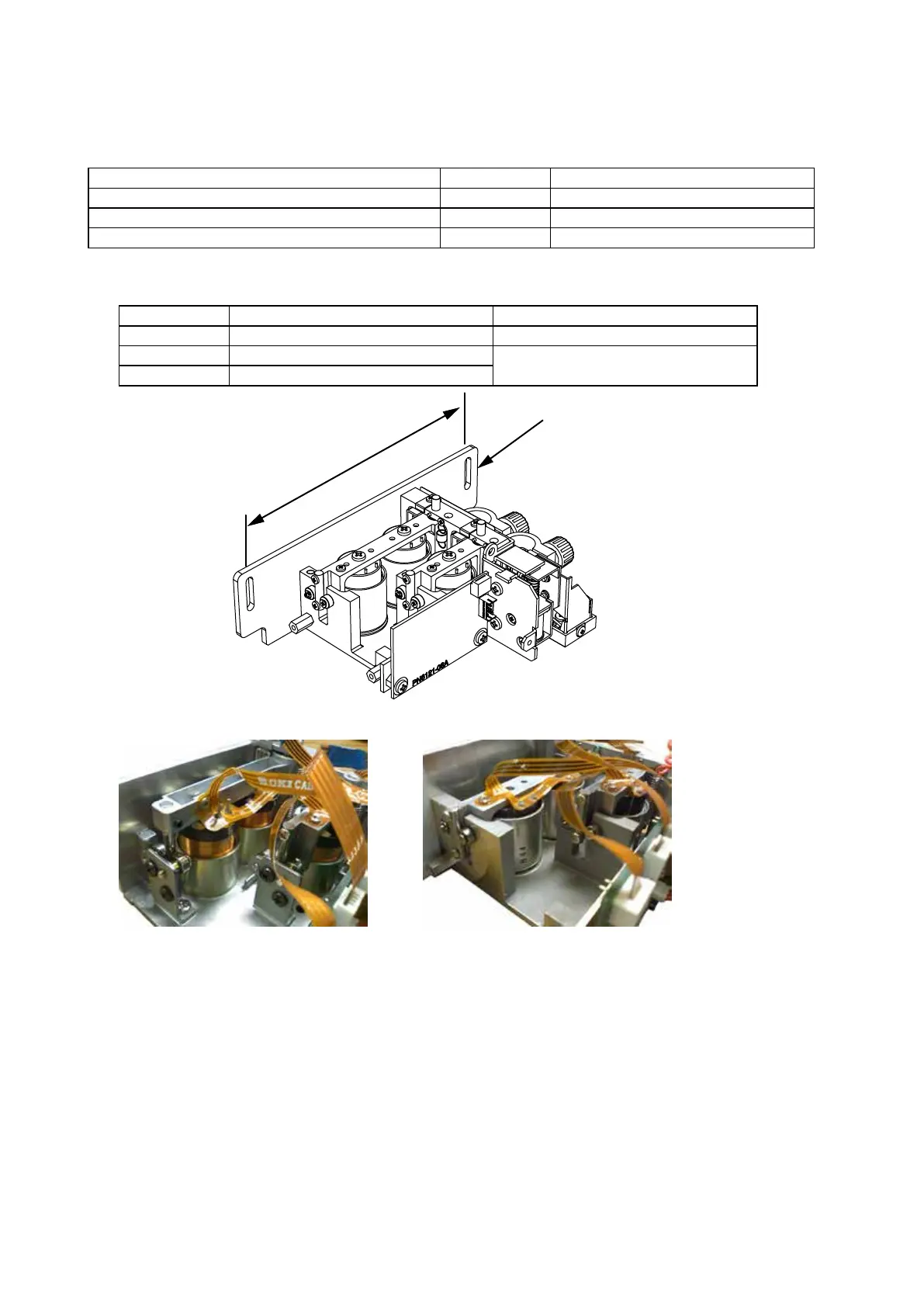

How to recognize each pen block
(1) Conrm the location of the screw holes.
Parts number Name of the Pen Block Assembly Distance of D
792256711 FC2250 Pen Block Assembly 145 mm
792256721 FC2250 (SH) Pen Block Assembly
135 mm
792256731 FC2250 (PM) Pen Block Assembly
Pen Block Plate
D
(2) Conrm the Type of the MC coil.
FC2250 (PM) Pen Block Assembly FC2250 (SH) Pen Block Assembly
FC2250 Pen Block Assembly
To Next Page
