special tools
diagram of
special tools
Front hub

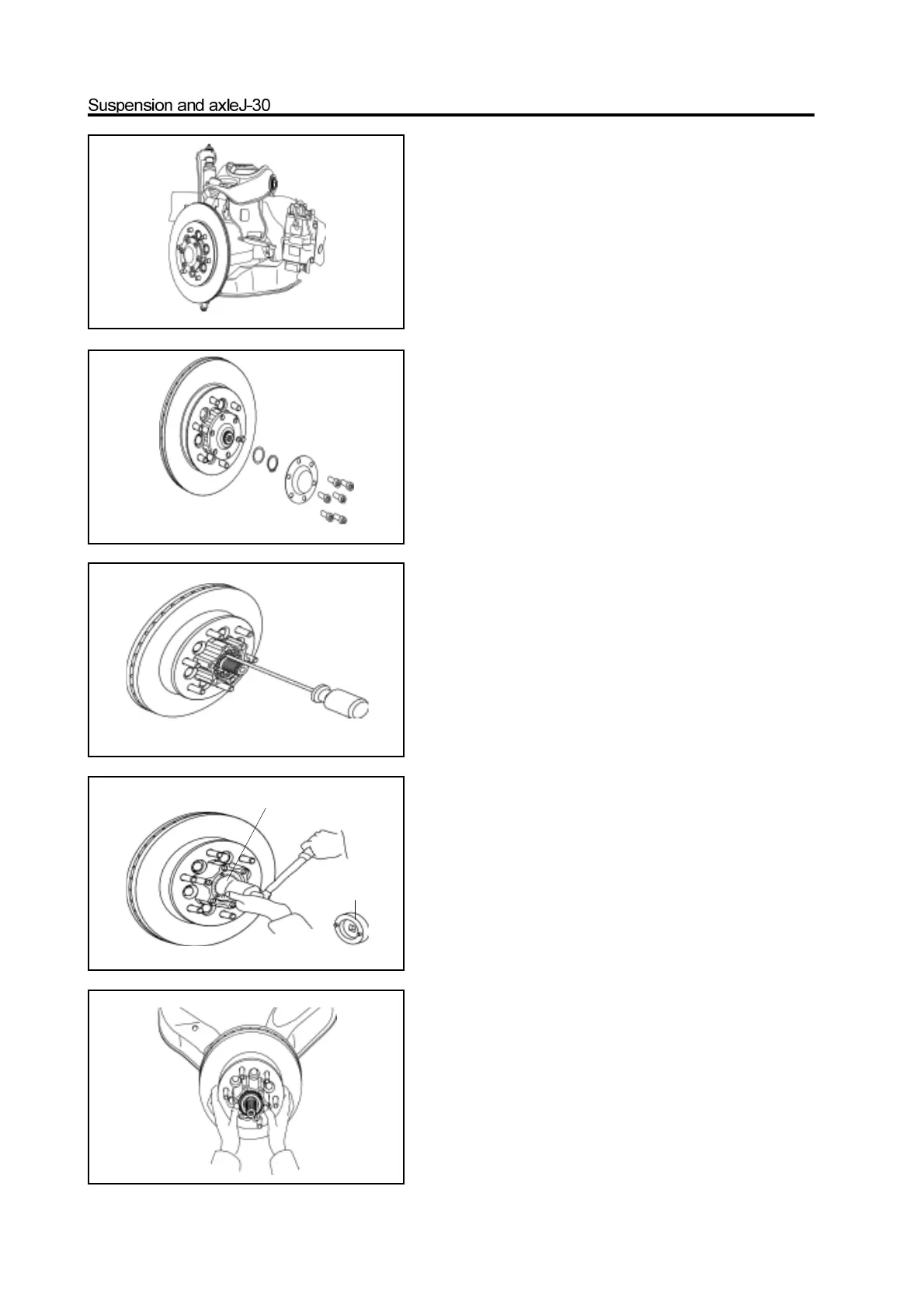

Disassembly of front hub
1. Remove the disc brake
Remove the brake caliper and hang it by steel cable.
Remarks: Do not remove the brake pipe and brake hose.
2. Remove the hub cap and flange
a. Use the inner hexagon spanner to screw off the fastening blot
and remove the hub cap.
b. Use the pliers to remove the circlip and remove the adjusting
washer.
c. Remove the flange.
3. Remove the hub and brake disc
a. Use the Philips screwdriver to screw off the tight screw;
remove the lock washer.
b. Use the special tools to remove the lock nut.
c. Remove the hub and brake disc with the outer bearing.
