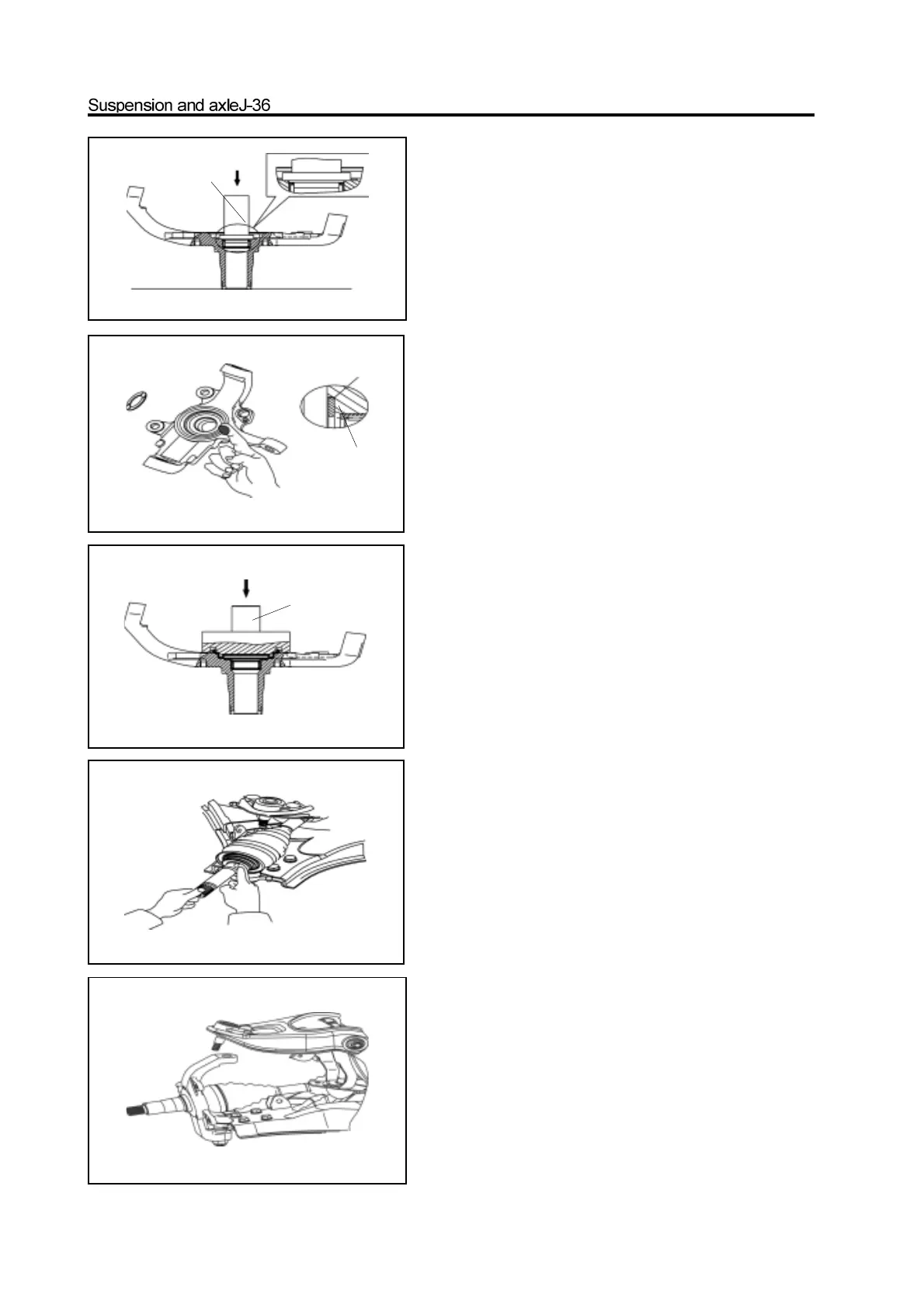

5. Installation of needle bearing
Use the special tools and hand hammer to knock in the new
needle bearing slightly.
Remarks: The thicker end of needle bearing should be
upwardly when knock in. with thicker end.
chamfer
steering
knuckle
6. Installation of thrust plate
Coat the installation position of thrust plate of steering knuckle
with the HP-R grease; place the thrust plate with the surface
with chamfer facing the steering knuckle.
Remarks: It must measure the thickness of the thrust plate
before the installation; it should install the new thrust plate if
the thickness is less than 1.5mm. The nominal thickness of
the new thrust plate is 2mm.
7. Installation of steering knuckle oil seal
Use the special tools and hand hammer to knock in the new
steering knuckle oil seal slightly.
Installation of steering knuckle
1. Install the steering knuckle
a. Coat the drive shaft and inner of drive shaft dustproof cove
with the lithium base grease.
b. Insert the drive shaft into the steering knuckle, meanwhile
connect the lower ball pin to the steering knuckle and install the
slotted nut temporarily.
special
tools
special
tools
