Torsion bar spring

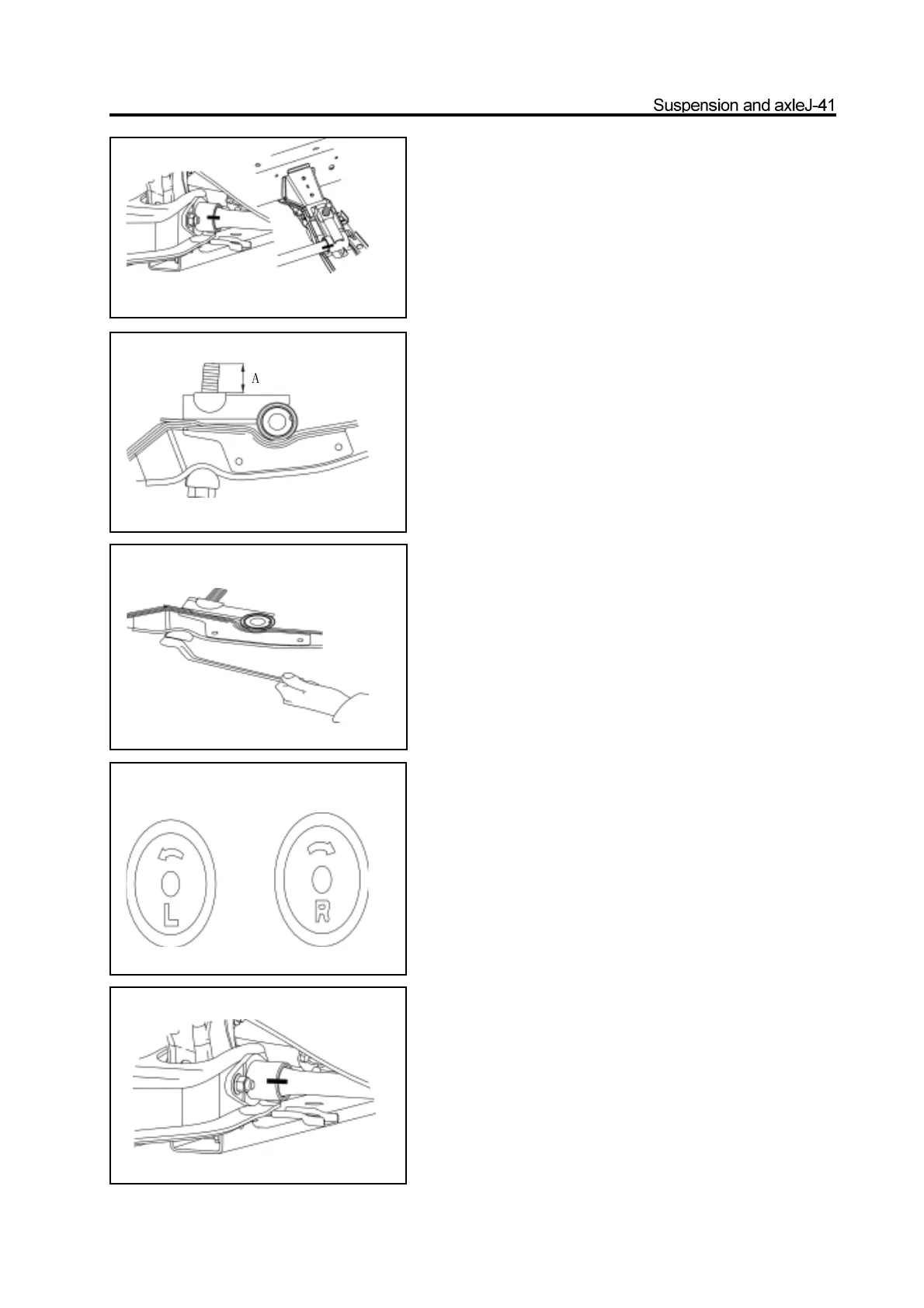

Disassembly of torsion bar spring
1. Make the assembly mark on the torsion bar spring,
torsion base and adjusting arm
2. Measure the length A of extension section of bolt
according to the length shown in figure.
Remarks: The measuring value is for reference when adjust the
ground clearance of chassis.
3. Loose the adjusting bolt until the torsion bar spring
has not the tension.
4. Remove the fixed arm and torsion bar spring
Installation of torsion bar spring
Remarks: There are the L and R indication marks, which must not
be exchanged on the rear end of the torsion bar spring. Mark L
means the left while R for right
1. For reused torsion bar spring
a. Cost the spline of torsion bar spring with grease thin.
b. Align the assembly mark and install the torsion bar spring on the
torsion bar.
c. Align the assembly mark and install the adjusting arm on the
torsion bar spring.
