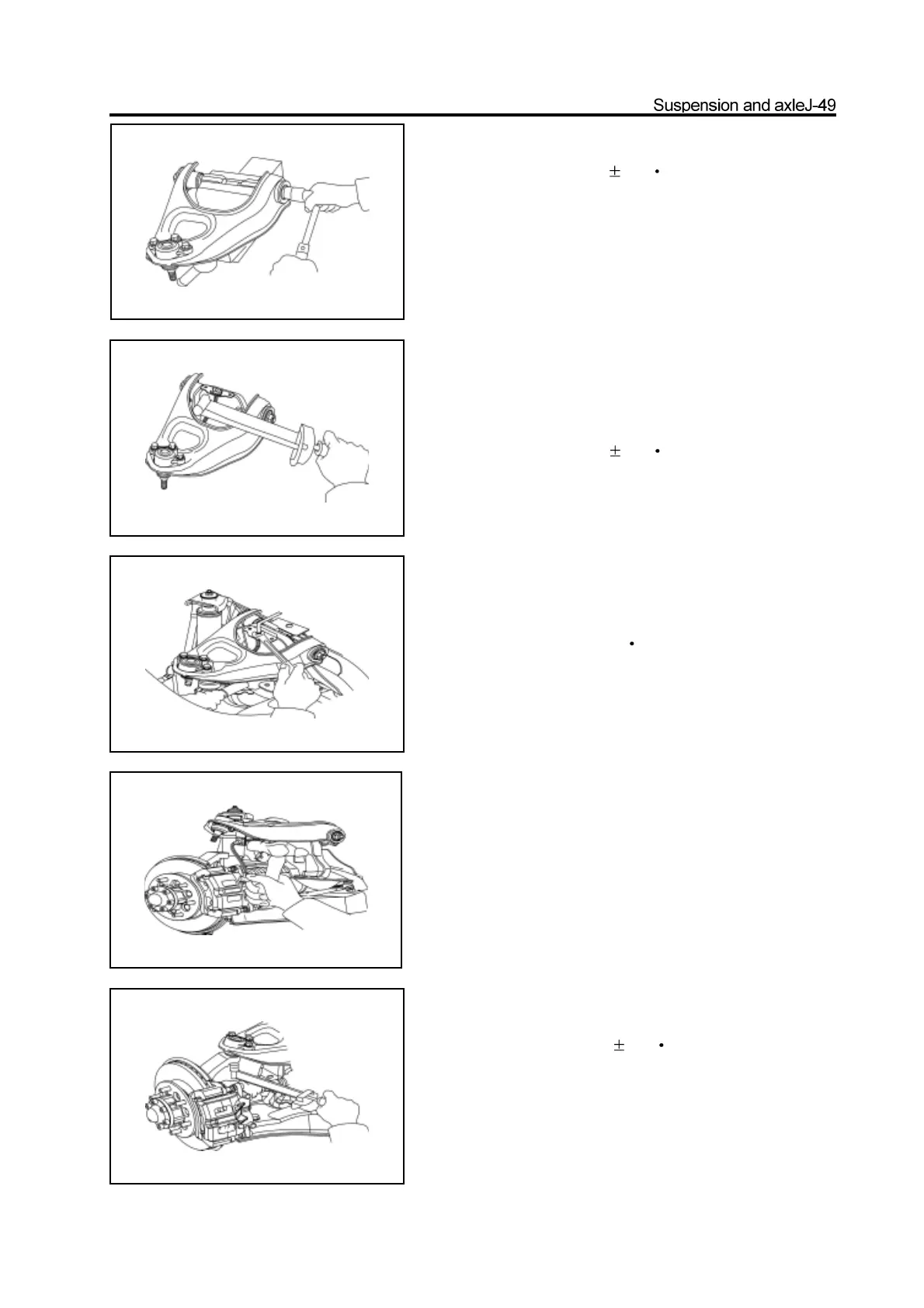

b. Tighten the upper arm shaft nut to specified torque.
Tightening force: 210
10N m
Installation of upper suspension arm
1. Install the upper suspension arm on the carriage
a. Install the upper suspension arm and camber adjusting shim.
b. Tighten all bolts to the specified torque.
Tightening force: 200 10N m
Remarks: Install the shim with same quantity and thickness to the
original position.
2. Connect the brake oil pipe of upper arm shaft Tighten
the oil pipe compression nut to specified torque.
Tightening force: 15-17N m
Remarks: It should tighten four connectors of two two-way valves
to the specified torque if disassemble the right upper arm.
3. Connect the brake hose to the upper arm oil pipe
bracket
a. Thread the brake hose through the hole on upper arm oil pipe
bracket.
b. Insert the sheet steel spring clip by the hammer to fix the brake
hose.
4. Connect the upper ball pin to the steering knuckle.
a. Tighten the slotted nut according to the specified torque.
Tightening force: 145
15N m
b. Install the new split pin.
Remarks: It should align the notch of nut with the pinhole when
install the split pin; the nut can be tightened but not loosed during
the alignment.
