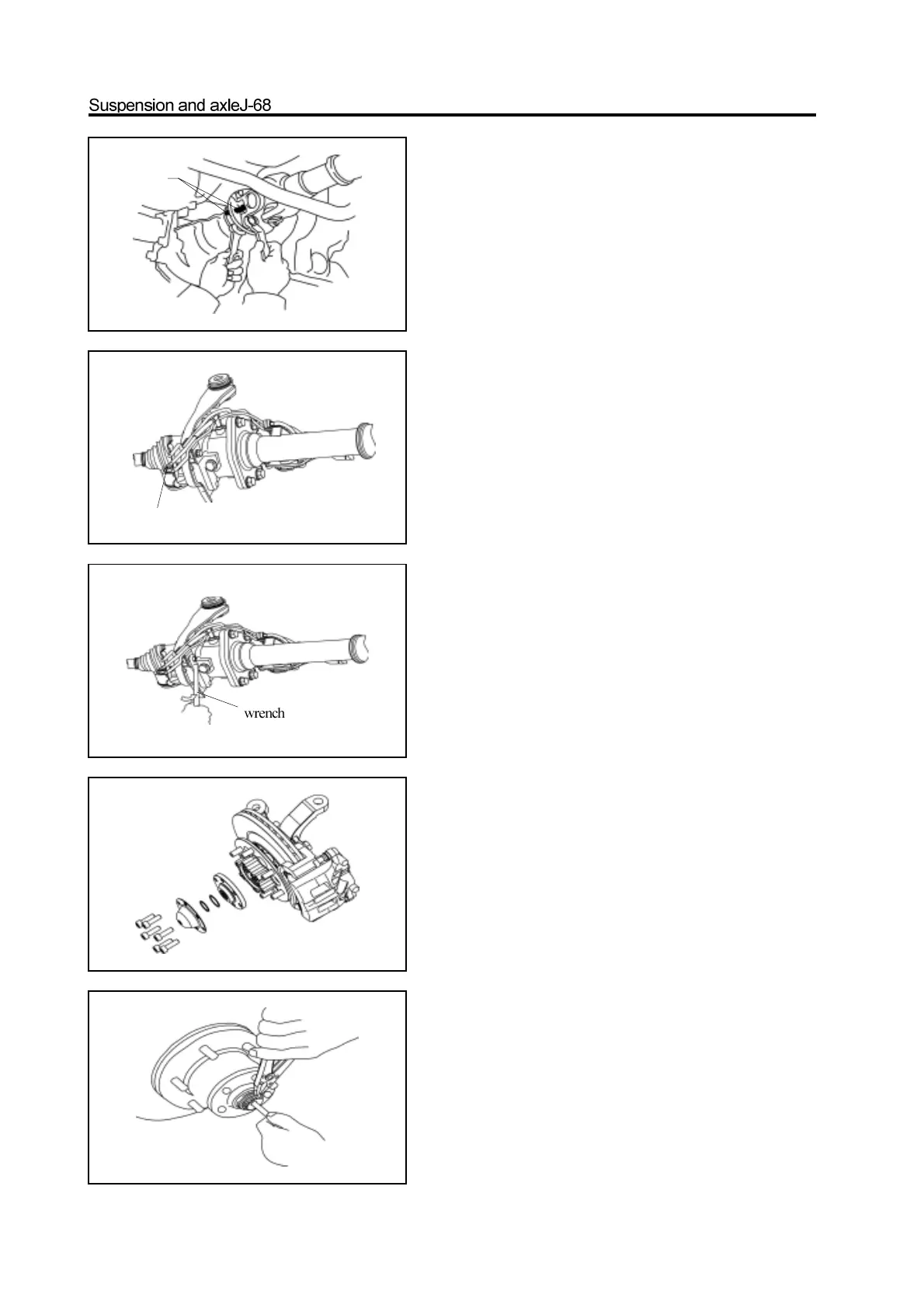

6. Use the wrench to screw off the bolt on the vent tube
bracket, which is used to fix the vent tube connector.
7. Disconnect the connection between the front drive
shaft assembly and steering knuckle front hub
assembly.
a. Screw off the connecting bolt which is used to fix the front
hub cover; remove the front hub cover.
b. Use the circlip pliers to remove the circlip from the front drive
shaft and remove the adjusting washer.
c. Remove the steering knuckle of both sides and separate it
form the front drive shaft assembly.
1. Support the front of the car; remove two front
wheels and the beam under the front reducer
assembly.
2. Drain the lubrication oil in the front reducer
assembly.
3. Remove the flange of front reducer assembly from
the drive shaft
Caution: Make the assembly mark on the flange of
front reducer assembly and drive shaft before discon-
nect them.
4. Disconnect the connector of power wire of electric
clutch
5. Disconnect three rubber connectors on the front
drive axle vent tube connector assembly.
assembly mark
disconnect three connectors in this place
