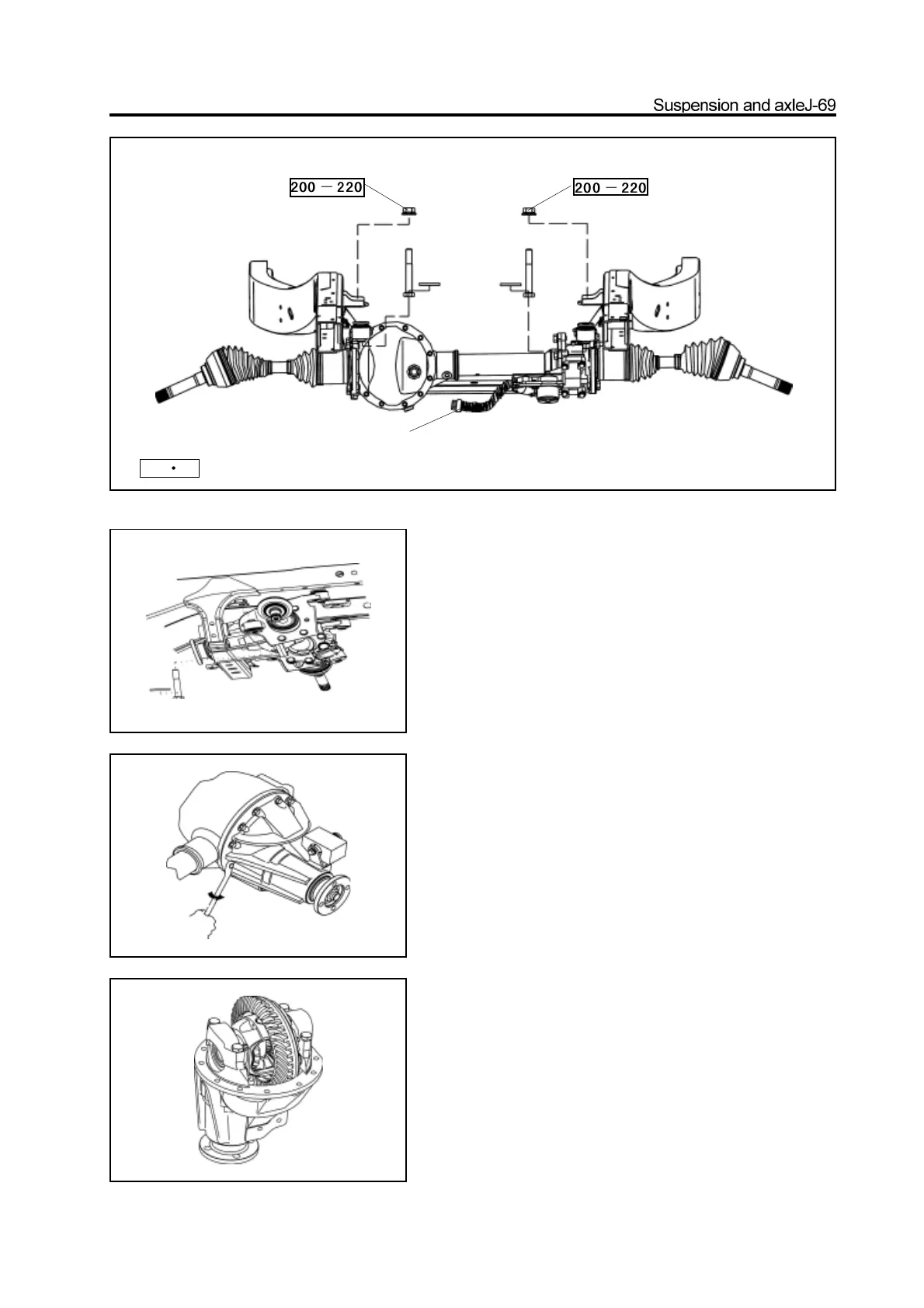

8. Use the jack to support the front reducer assembly
9. Remove the lifting bolt of front drive axle hanger
plank and carriage.
10. Remove the front drive axle assembly
Caution: Do not damage the drive shaft and front drive
shaft jacket
11. Remove the front drive shaft assembly of both sides
from the front drive axle assembly.
12. Use the wrench to remove the bolt and nut which is
used to fix the front reducer housing.
13. Remove the clump weight assembly and clump
weight bracket welded assembly
(Refer to “Disassembly of Front Reducer Assembly”)
electric clutch connector
N
m: specified torque
