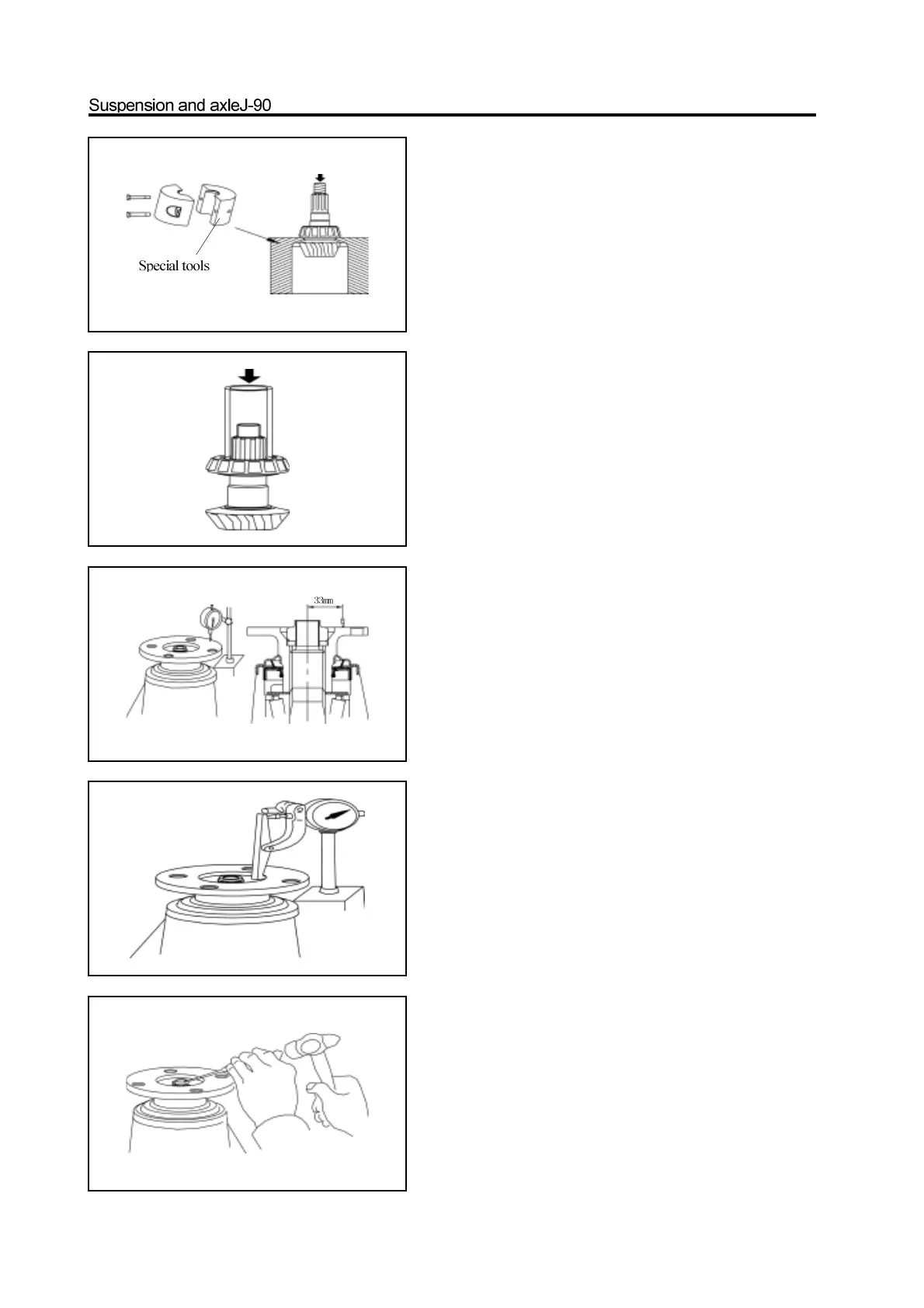

d. Remove the drive bevel gear and use the special toolsto remove
the large bearing of drive bevel gear beforereplacethe adjusting
washer.
e. Insert the new adjusting washer and usethespecial tools to
press in the large bearing of drivebevel gear.
f. Place the adjusting washer above the large bearing on the
drive bevel gear, install the spacer in the reducer housing;
install the drive gear flange andtighten the nut to the specified
torque.
g. Remeasure the pre-applied load of drive gear bearing clearance
and the total pre-applied load of reducer; ensure it meets the
requirement.
21. Use the dial indicator to measure the axial and
radial run-out tolerance of . Drive bevel gear flange.
Max. Axial runout : 0.1mm
Max. Radial run-out tolerance: 0.1mm
Remarks: It should check the big and small bearing of drive
bevel gear when the runout is more than 0.1mm.
22. Rivet the nut of drive bevel gear.
