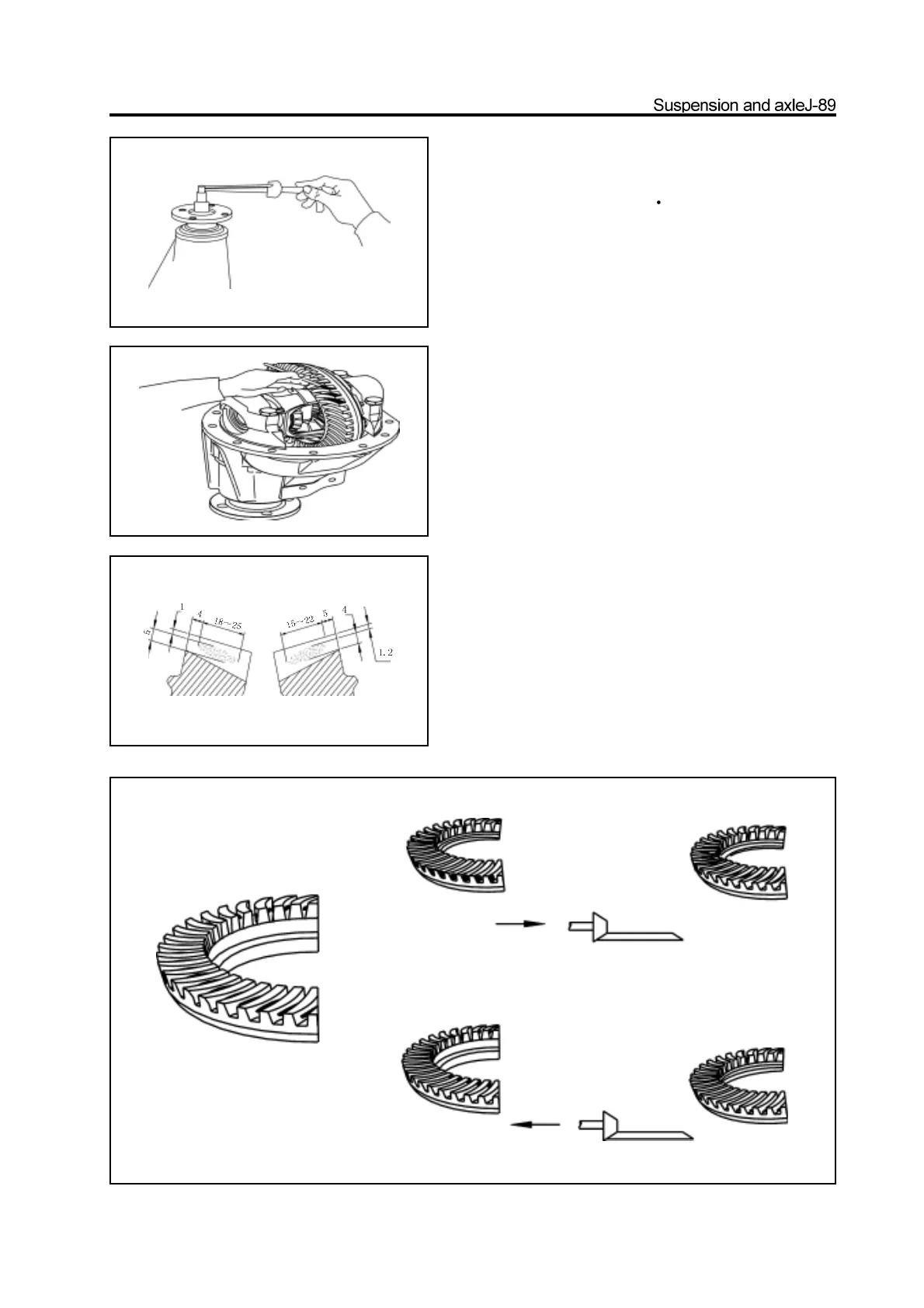

19. Use the torque measuring meter to measure the
total pre-applied load of front reducer.
specified torque : 1.8-2.4N m
sound contact
large end contact
toe contact
select the adjusting washer which can make the drive gear close to the
driven bevel gear
select the adjusting washer which can make the drive
gear away form the driven bevel gear r
small end contact
dedendum contact
20. Check the meshing mark of drive and driven
bevel gear.
a. Paint 3-4 teeth with the red lead in three different positions
of driven bevel gear.
b. Hold the flange of drive gear; rotate the driven bevel gear in
clockwise and anticlockwise.
c. Check the contacting condition of gear tooth.If the meshing
mark of drive and driven bevel gear does not consist with
thatshown in figure, it should select the proper adjusting
washer for modification according to the detailed form of
meshing mark.
convex of driven
concave of driven bevel
