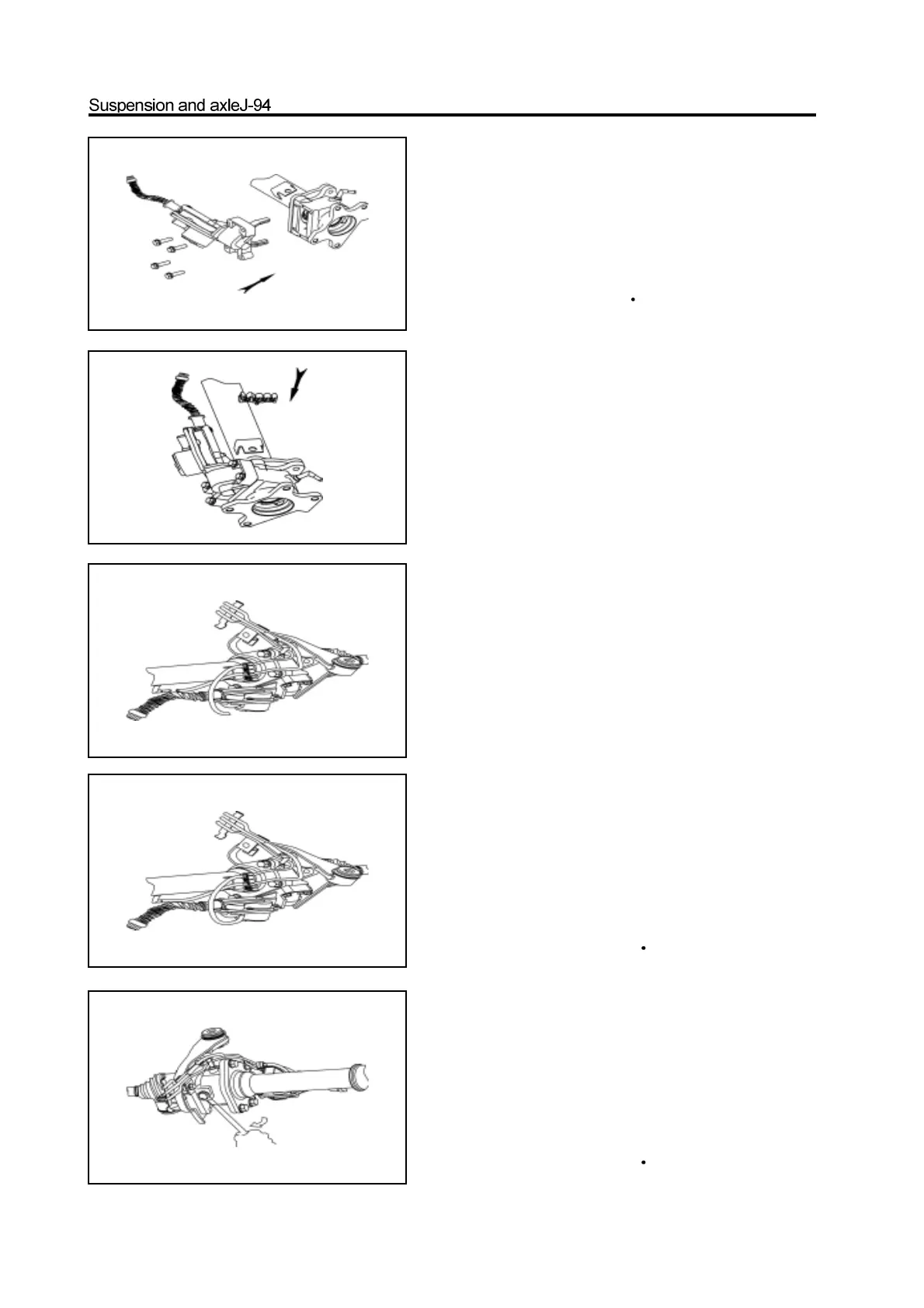

44.Insert the clip into the vent tube bracket.
45. Clamp the vent tube clip on the front drive axle
vent tube connecting tube assembly.
46. Connect the front drive axle vent tube connecting
tube assembly to three ports, the front axle tube,
electric clutch and electric clutch housing.
43. Install the electric clutch assembly on the electric
clutch housing.
a. Make the shift fork cross on the shift fork sleeve.
b. Align the location pin hole of electric clutch with two
location pins, and tighten it by bolt; tighten the bolt to the
specified torque. (Precoat the medium screw of bolt with one
or two drop of screw lock agent)
Specified torque : 23-26N
m
47. Screw off the oil filling plug of front drive axle
housing, then fill the axle housing with the hypoid
gear oil; then tighten the oil filling plug to the speci-
fied torque.
Gear oil number: GL-5
Filling amount: The oil level is flush with the lower edge of oil filling
port.
specified torque : 140-150N
m
48. Fill the electric clutch housing with the gear oil ;
then tighten the oil filling plug to the specified
torque.
Gear oil number: GL-5
Filling amount: The oil level is flush with the lower edge of oil filling
port.
Specified torque: 140-150N
m
