Safety airbag-30
wiring harness for release
shorting site
6m plus
2. Release outside the vehicle
Caution
Release the safety airbag somewhere open and plain as well as 6m plus from the obstacles and people
When release the safety airbag outdoors, try to avoid the strong wind and ignite windward in the breeze.
a. Remove the accumulator negative and positive and remove the accumulator.
Caution
Continue the operation 60 seconds after the removal of the accumulator.
b. Release the safety airbag module according to following procedure
driver’s side safety airbag module
remove the driver’s side safety airbag module off the vehicle.
Caution
The two ends of the terminal will short automatically without the joint connection of driver’s safety airbag module,
therefore the possible improper release caused by static interference can be avoided; if it improperly releases, keep the
released side up and store it somewhere plain, do not lay anything on it.

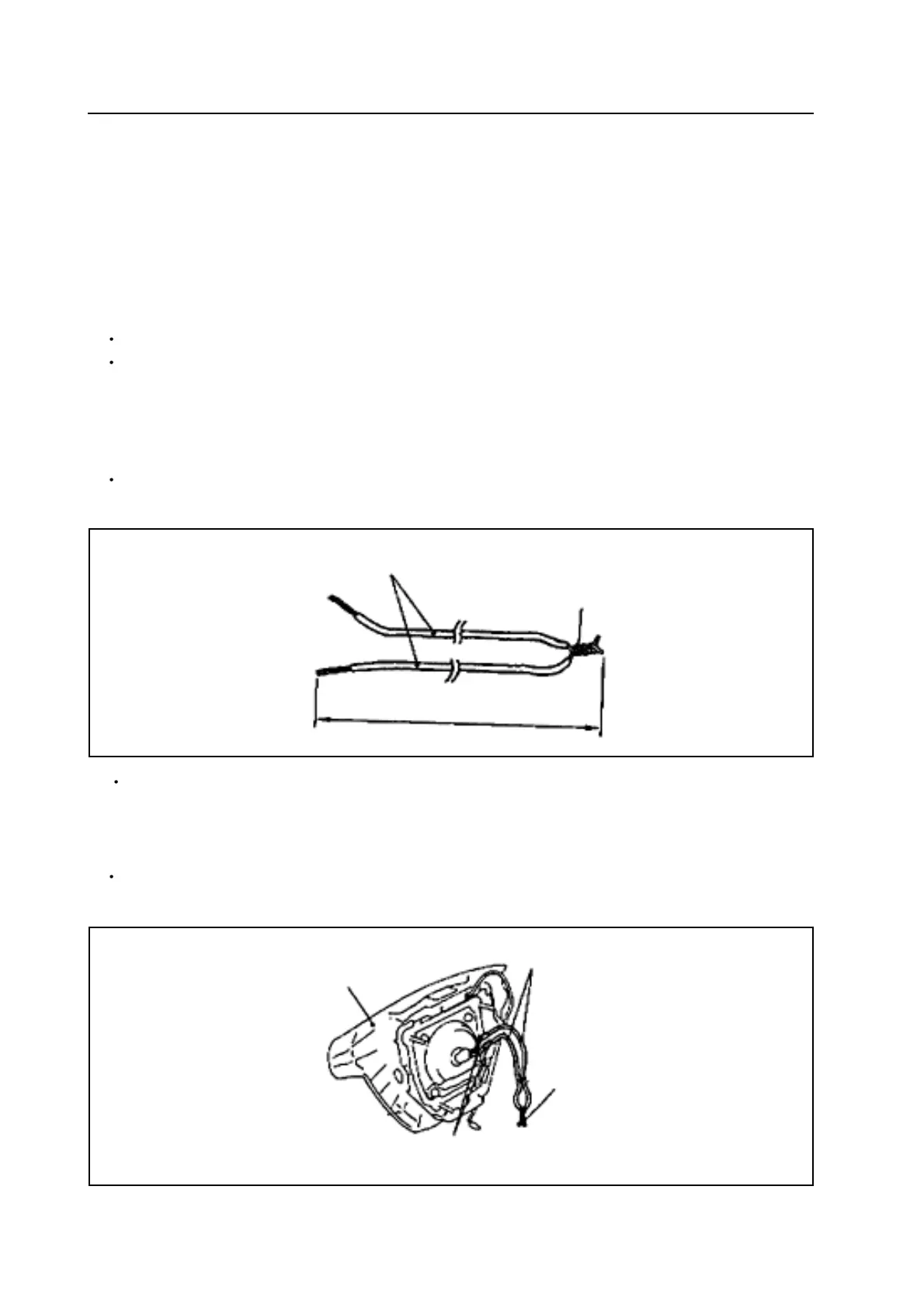

Prepare 2 6m plus release wiring harnesses and mutually connect the other ends(short-circuit) of them to avoid the possible
improper release caused by static interference.( refer to figure 9-4)
Touch the vehicle with your hands to eliminate the static electricity.
Caution
Strictly execute the previous procedure for it can prevent the possible incorrect release caused by the static interference
from happening.
Shut off the driver’s side safety airbag module wiring harness and connect it with two release wiring harnesses( refer to figure
9-5)
release wiring harness
passengers’ side safety airbag module
shoring site
insulating tape
