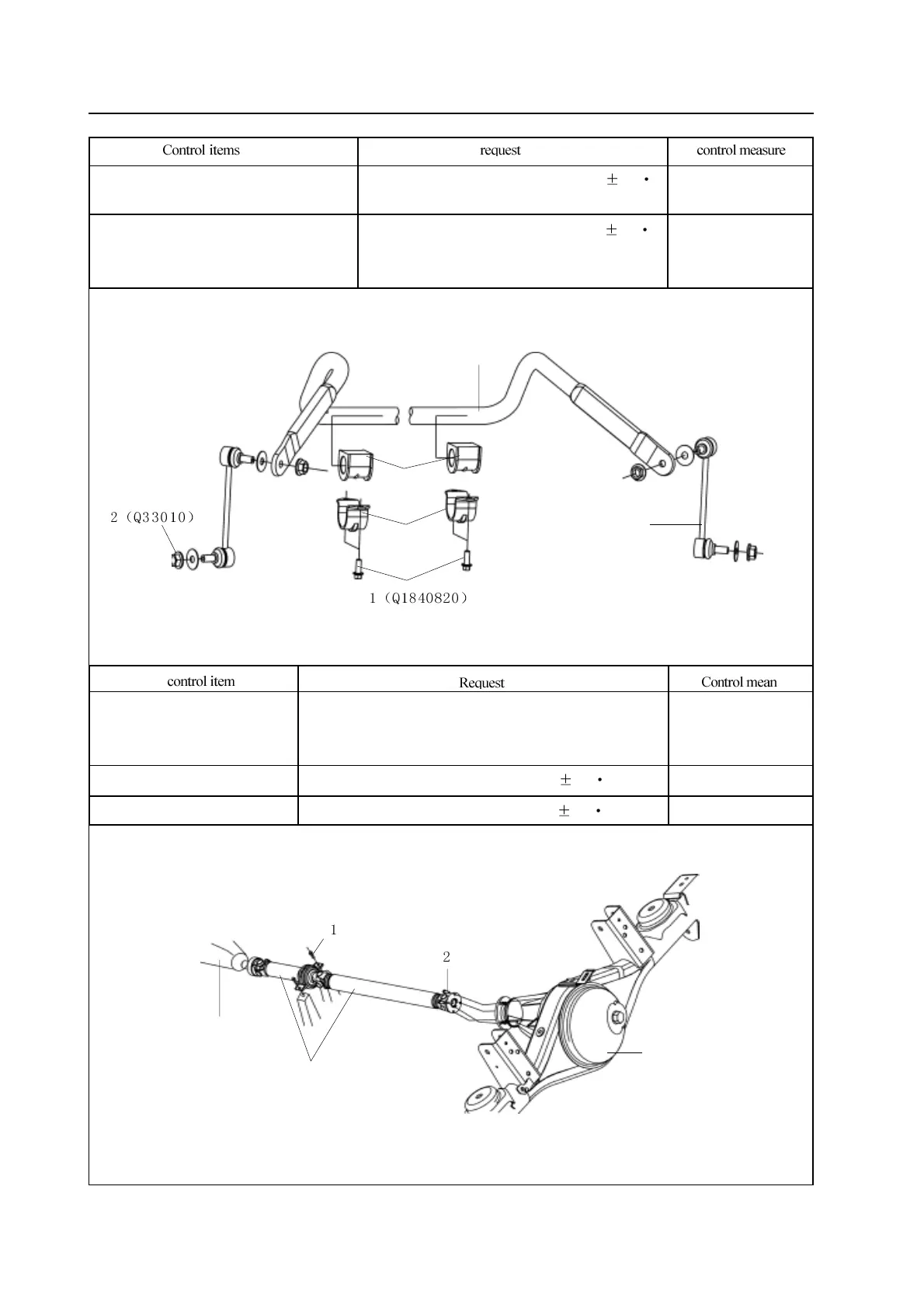

Appendix A-4
Connection of front transverse stabilizer rod
and carriage.
the fixed torque of nut 1in the Figure is 25
3N m
the fixed torque of nut 2in the Figure is 63
5N m
Connection of front transverse stabilizer rob
and front transverse stabilizer rod connecting
bar assembly
Torque wrench
Torque wrench
transmission assembly
drive shaft assembly
rear axle assembly
Drive shaft assembly installation
Plug the front part of drive shaft into transmission assembly
splinded shaft, after their good meshing, screw the central bearing
hexagon bolt into the corresponding screw hole of the carriage
Center bearing connecting bolt
the fixed torque of bolt 1 in the Figure is 65
5N m
Drive shaft bolt
the fixed torque of bolt 2in the Figure is 65
5N m
Torque wrench
Torque wrench
Viewing and handle
confirmation
front transverse stabilizer rod
bush
bush clip
front transverse stabilizer rod
connecting bar assembly
