Appendix A-6

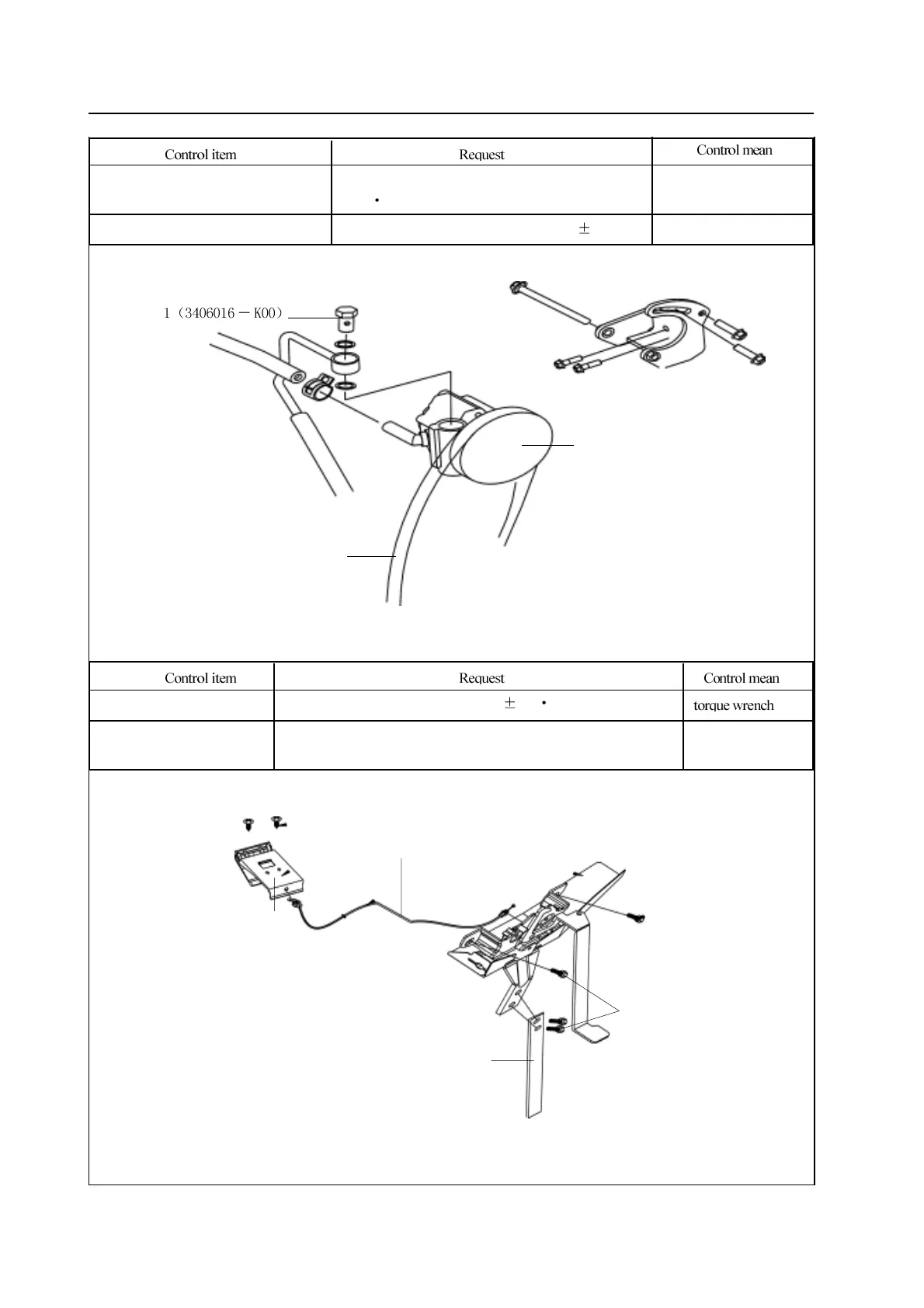

Driver steering oil pump installation
Fixed torque of tubular hexagon bolt 1 in the Figure is
40N
m
Multi-wedge belt
Multi-wedge belt 4PK1100 tension is 500
50N
Torque
Torque
multi-wedge belt 4PK1100
driver steering oil pump
cover lock mounting bolt
effect
cover lock mounting bolt’s torque is 9 2N m
the cover lock can be opened freely, the position is reliable
without any jam.
cover lock cable
cover lock buckle
fastening blot
cover lock mounting bracket
