c If the GbE mode is configured as In in the Set GbE Mode dialog, configure it to Out
and click
OK.
The device reboots.
d Expand the device tree in the Physical Output box to reveal the GbE ports.
e Select the required GbE port icon in the Physical Output box.
fClick
Properties on the EMS toolbar.
g Configure the GbE port, see 4.5.5.2 GbE Ports for details.
h Select a socket in the GbE branch in the Physical Output box.
iClick
Properties on the EMS toolbar.
j Configure the socket, see GbE Socket Properties (Output Mode) for details.
4. To associate a multiplex in port to a CAM Slot:
a Select the required CAM Slot name in the Physical Input box.
bClick
Properties on the EMS toolbar.

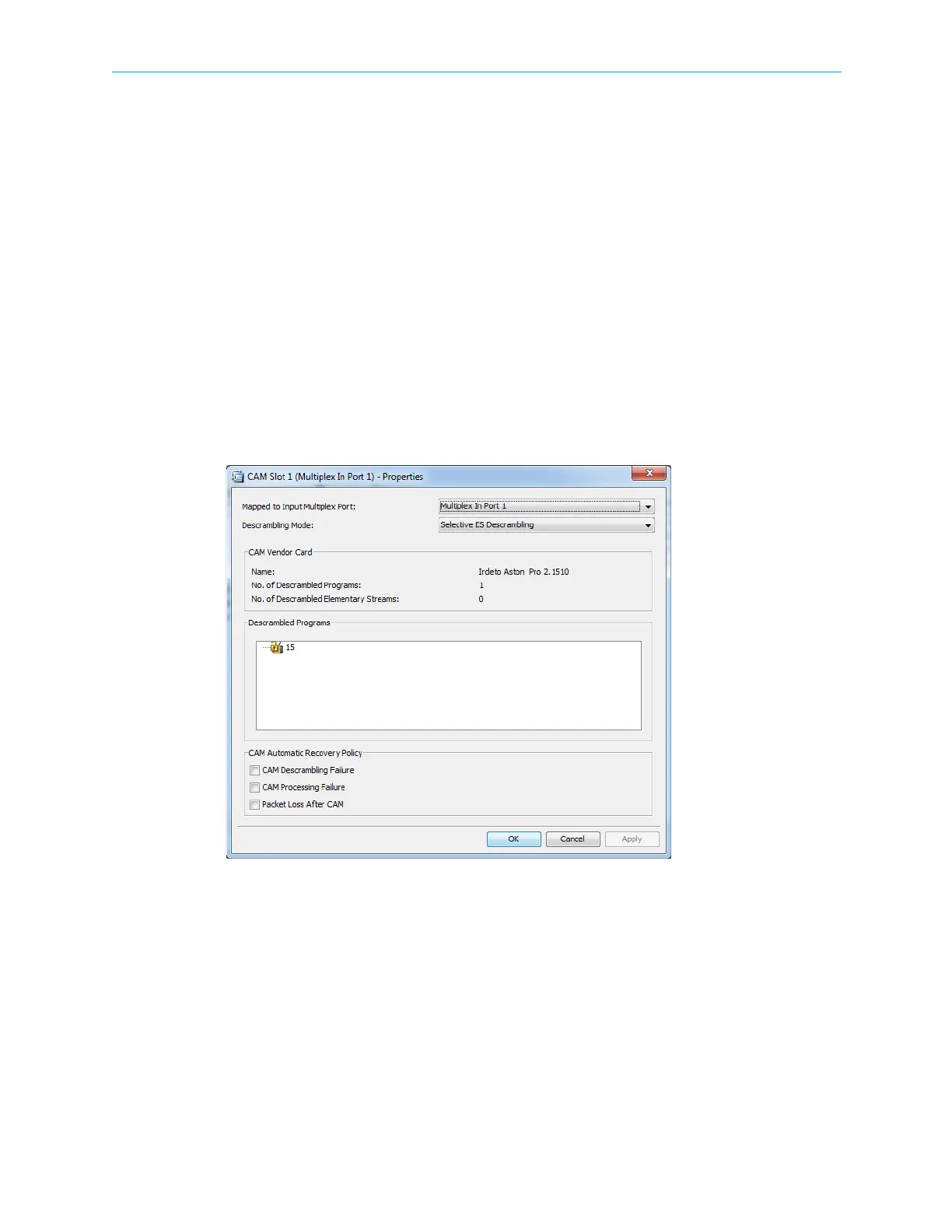

The dialog displays with the programs descrambled by the slot.
c Select a multiplex in port to connect to the CAM slot.
5. To descramble a program:
a Right-click a program in the Multiplex & Decoding Output box.
b Select
Properties.
The Program Properties dialog displays.
cMark the
Descramble with checkbox.
d Select a CAM slot.
eClick
Apply.
