Hioki 3153 - Page 164

151
_____________________________________________________________________________________________
9.1 External I/O Terminal
______________________________________________________________________________________________

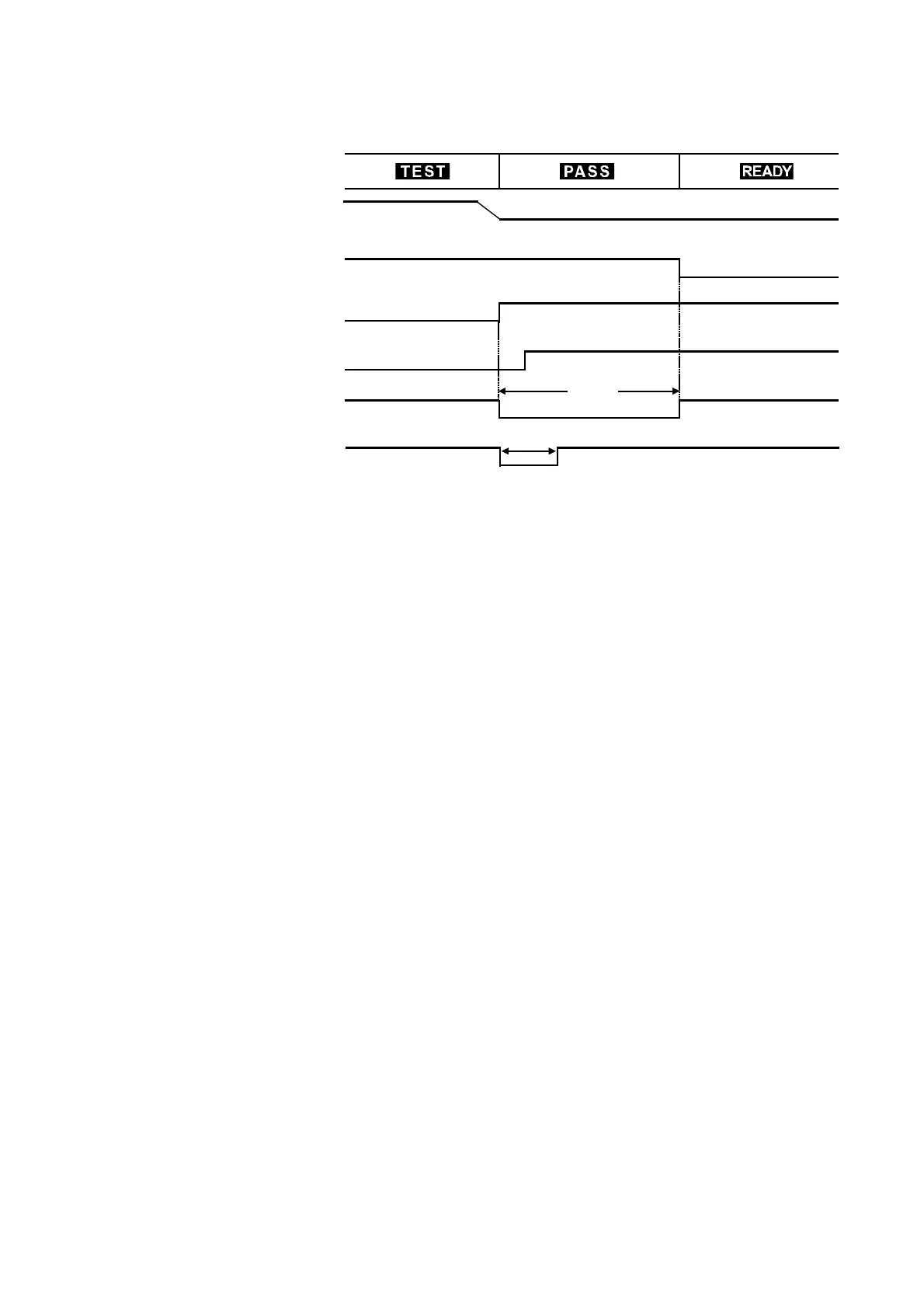

H.V.ON
―――――――
READY
―――――――
TEST
――――――
PASS
――――――
Voltage Output
300 ms
FILE-END
――――――――――
(Program mode)
100 ms
Insulation-resistance mode (When the PASS hold function is not
used)
Even in the FAIL state, when UPPER FAIL is activated, the
U-FAIL
――――――――――
signal
becomes LOW level. Similarly, with LOWER-FAIL, the
L-FAIL
――――――――――
signal
becomes LOW level. When the FAIL Hold function is set, the signal remains
at LOW level until the Hold function is disabled.
If a withstand-voltage test fails, the
W-FAIL
――――――――――
signal becomes LOW level.
Similarly, if an insulation-resistance test fails, the
I-FAIL
――――――――――
signal becomes
LOW level.
When the Hold function is disabled or the unit automatically returns to the
READY state, the
PASS
――――――――
signal becomes HIGH level and the
READY
――――――――――
signal
becomes LOW level.
In the program mode, as soon as the
FAIL
―――――――
signal enters LOW level, the
FILE-END
――――――――――――――
signal enters LOW level (100 ms) as well, as in the case of a
PASS result.
