From the New Radial Contour Segment screen, select LINE F1, and the Radial Mill Contour
Line Segment screen appears with fields based on your selection in the Coordinates field
(Rotary or Linear).
When Rotary is selected in the COORDINATES field, these fields appear:

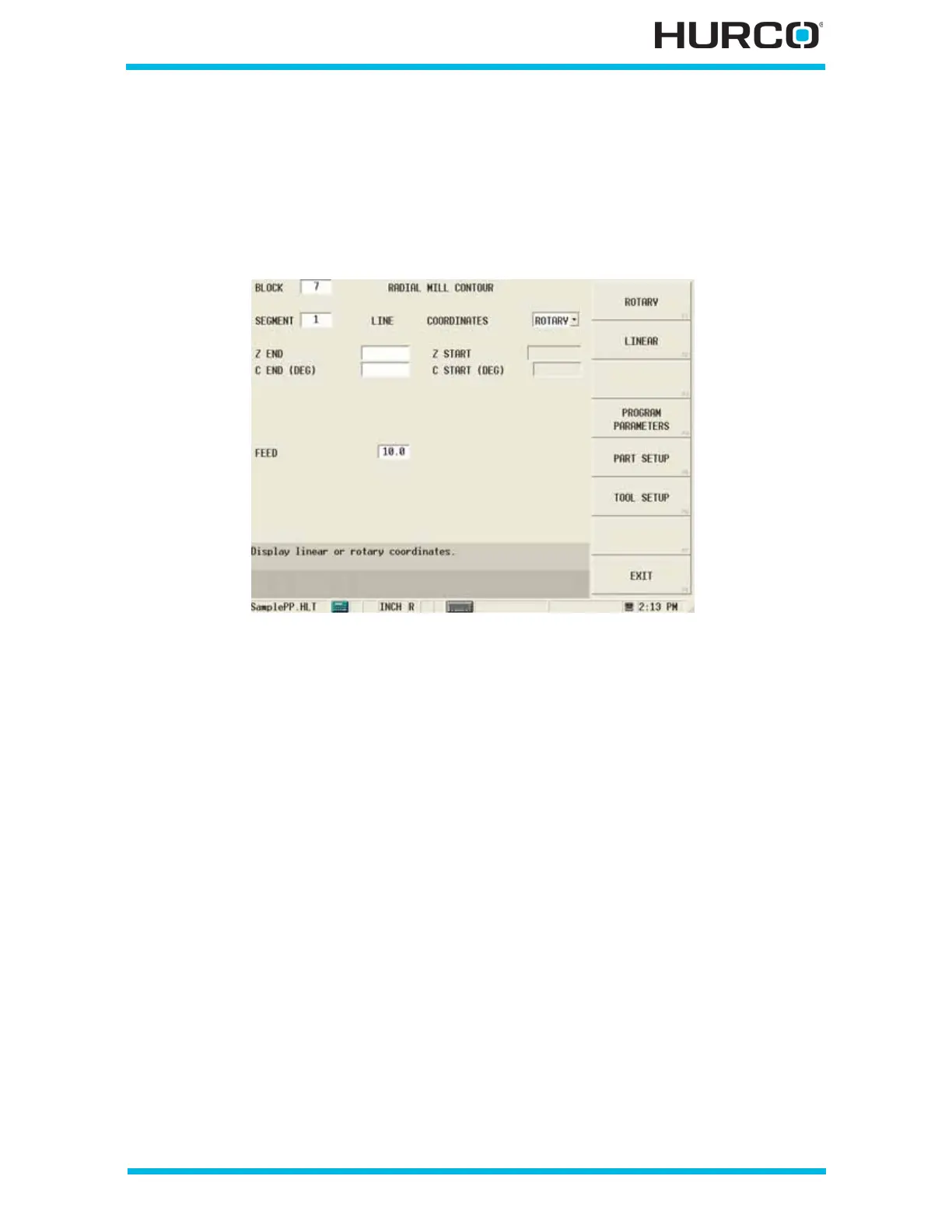

Figure 2–67. Live-Tooling Radial Mill Contour Line Segment screen: Rotary Coordinates
• Z END—defines the Z end point of the line segment.
• C END (DEG)—defines the angle of the line segment from the start point to
the end point, measured counterclockwise from the home position.
• Z START—defines the Z start point for the segment. This read-only field is
carried forward from the previous segment and can only be edited in that
screen.
• C START (DEG)—defines the angle of the line segment from the start point
to the end point, measured counterclockwise from the home position. This
read-only field is carried forward from the previous segment and can only be
edited in that screen.
• FEED—contains the feed rate from the previous segment. This value can be
accepted or changed.
