3 - 20 Sample P art Program v546CO WinMax Lathe Conversational Part Programming
Step 10: Enter programming information for Element #1, Turn, in Block #2.
Select the NEXT ELEMENT F2 softkey and the New Profile Element screen appears with
softkey selections for the types of Elements. Select TURN F3 to program the first move to
turn to the face of the material.

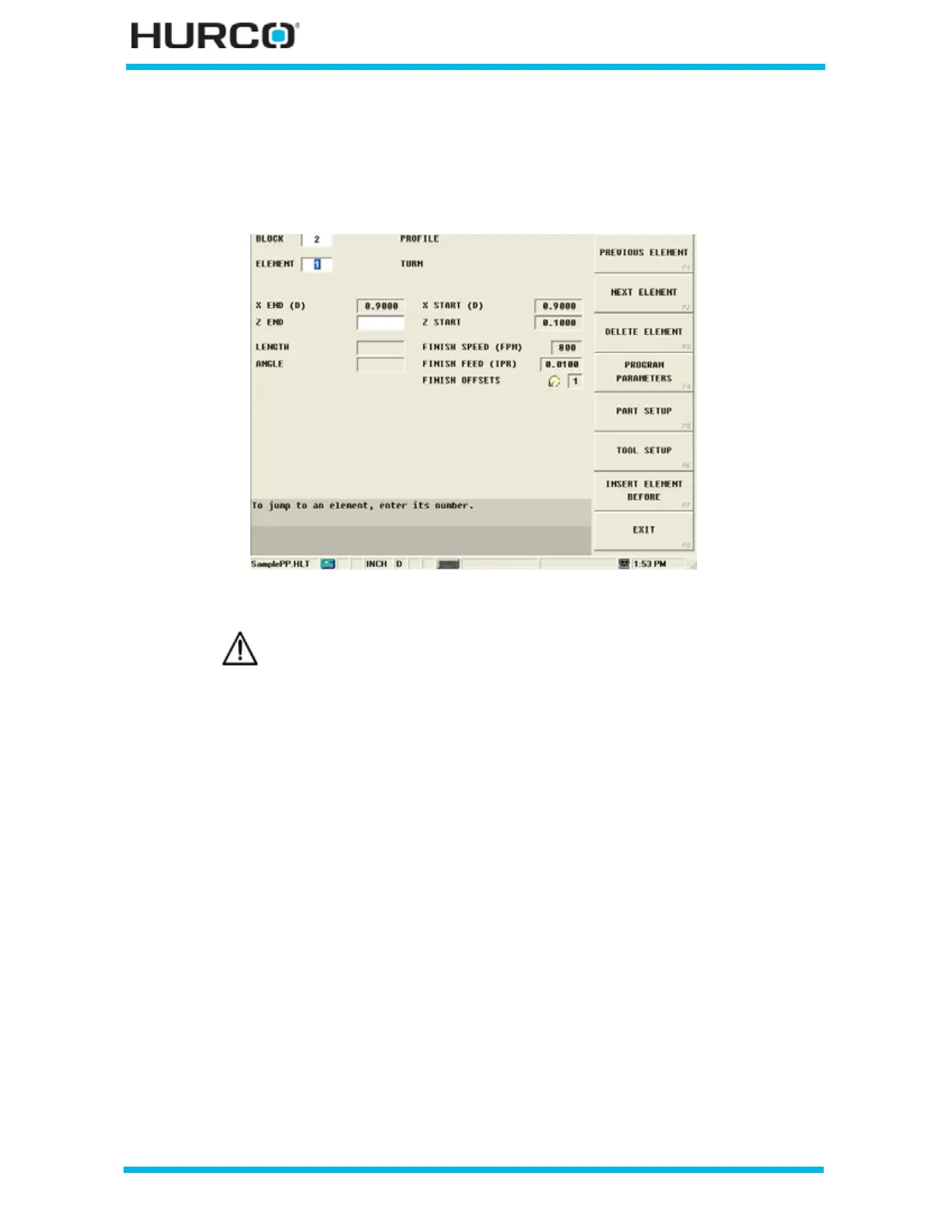

Figure 3–31. Profile Turn Element Screen
Since the first Element and the last Element must be perpendicular,
start with a Turn and end with a Face.
