Hurco winmax - Enter Programming Information for Element #7, Chamfer, in Block #2

WinMax Lathe Conversational Part Programming v546CO Sample Part Program 3-31
• The control calculates and enters values for X End (D), Z END, X Start (D), Z
Start, X Center (D), and Z Center on the Blend Arc Element Screen. Select
PREVIOUS ELEMENT F1 to view the Blend Arc Element Screen.

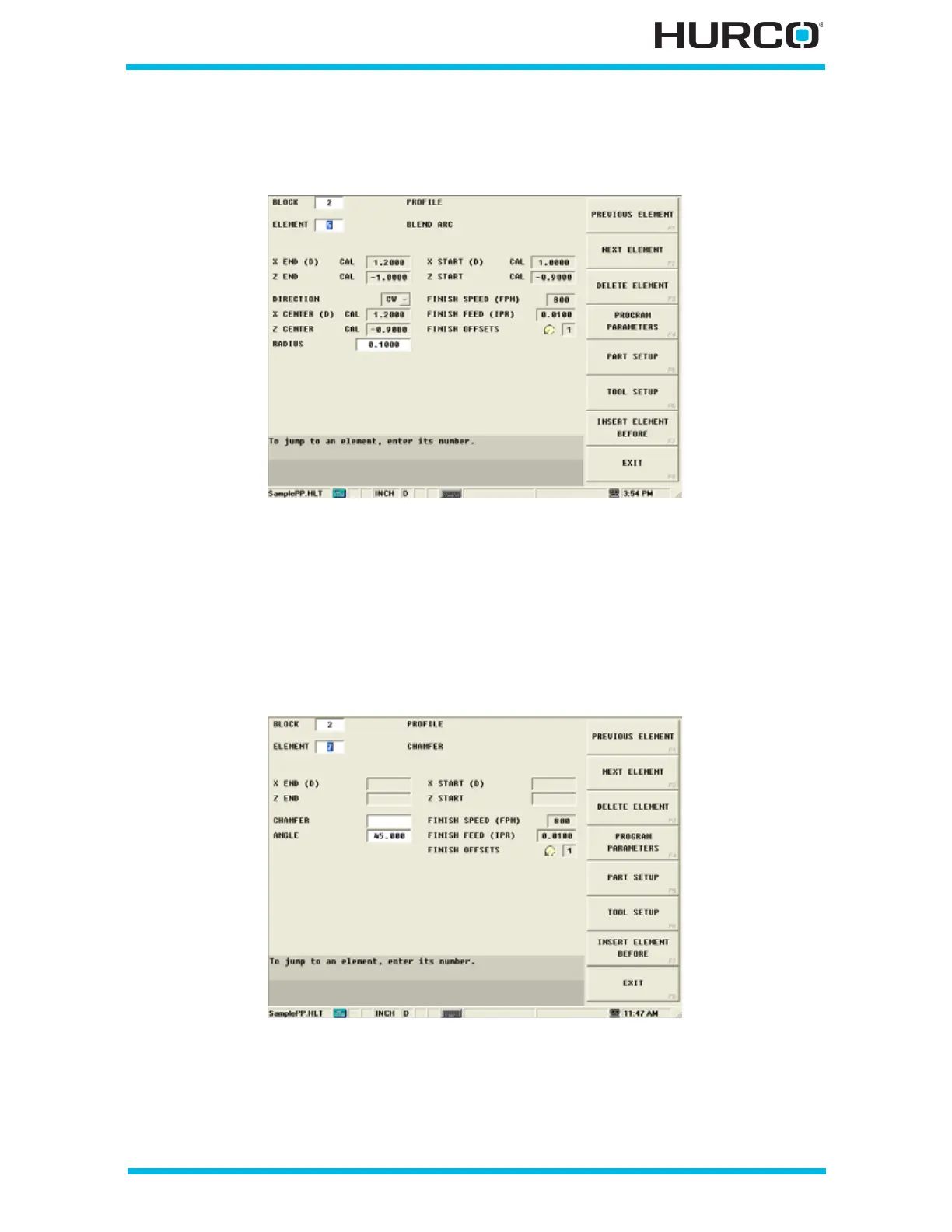

Figure 3–44. Profile Blend Arc Element with control-calculated values
Select NEXT ELEMENT F2 to return to the Element #6, Face, Screen.
Step 16: Enter programming information for Element #7, Chamfer, in Block #2.
Select the NEXT ELEMENT F2 softkey and the New Profile Element screen appears with
softkey selections for the types of Elements. Select Chamfer F6 to chamfer the next
corner.
Figure 3–45. Profile Chamfer Element Screen
