WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-93
Geometry Tab
Finishing follows the geometry of the contour defined in the Geometry tab. The fields on
the Geometry tab are defined as follows:
• CYLINDER DIAMETER or RADIUS—defines the diameter or radius of the
cylinder.
• COORDINATES—defines the coordinates as either Linear or Rotary.
• Linear coordinates are used when working from a flat drawing. When
Linear is selected, the X coordinates move in the physical Z direction, the
Y coordinates wrap around the C axis, and the Z coordinates move in the
physical X direction.
• Rotary coordinates move around the cylinder as specified.
The fields are based on your selection in the Coordinates field (Rotary or Linear).
When Rotary is selected in the COORDINATES field, these fields appear:

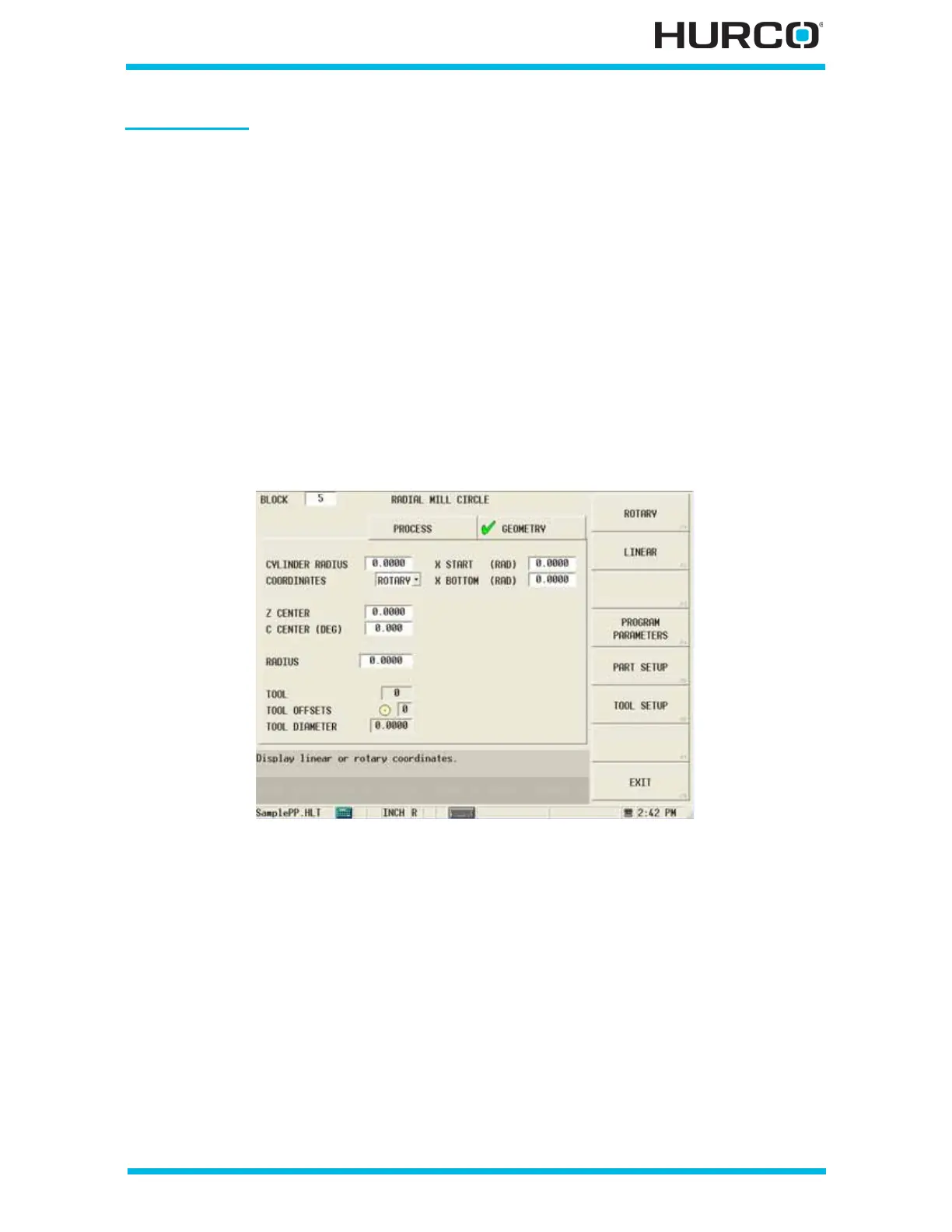

Figure 2–78. Live-Tooling Radial Mill Circle screen Geometry tab: Rotary Coordinates
• Z CENTER—defines the Z coordinate for the center point of the circle.
• C CENTER (DEG)—defines the angle of the circle from the start point to the
end point, measured counterclockwise from the home position.
• DIAMETER or RADIUS—defines the diameter or radius of the circle.
• X START (DIA) or (RAD)—defines the location where Plunge Feedrate
begins. The feedrate is set in the Plunge Feed field in the Process tab.
• X BOTTOM (DIA) or (RAD)—defines the bottom of the hole and the location
where the Plunge Feed Rate ends.
