WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-17
Turn Finish Operation
A rule to follow when programming a Turn Finish operation is that a Finish Pass can move
in any direction, i.e, a Turn Element can follow another Turn Element.
The following fields appear when Turn Finish is selected in the Operation field:

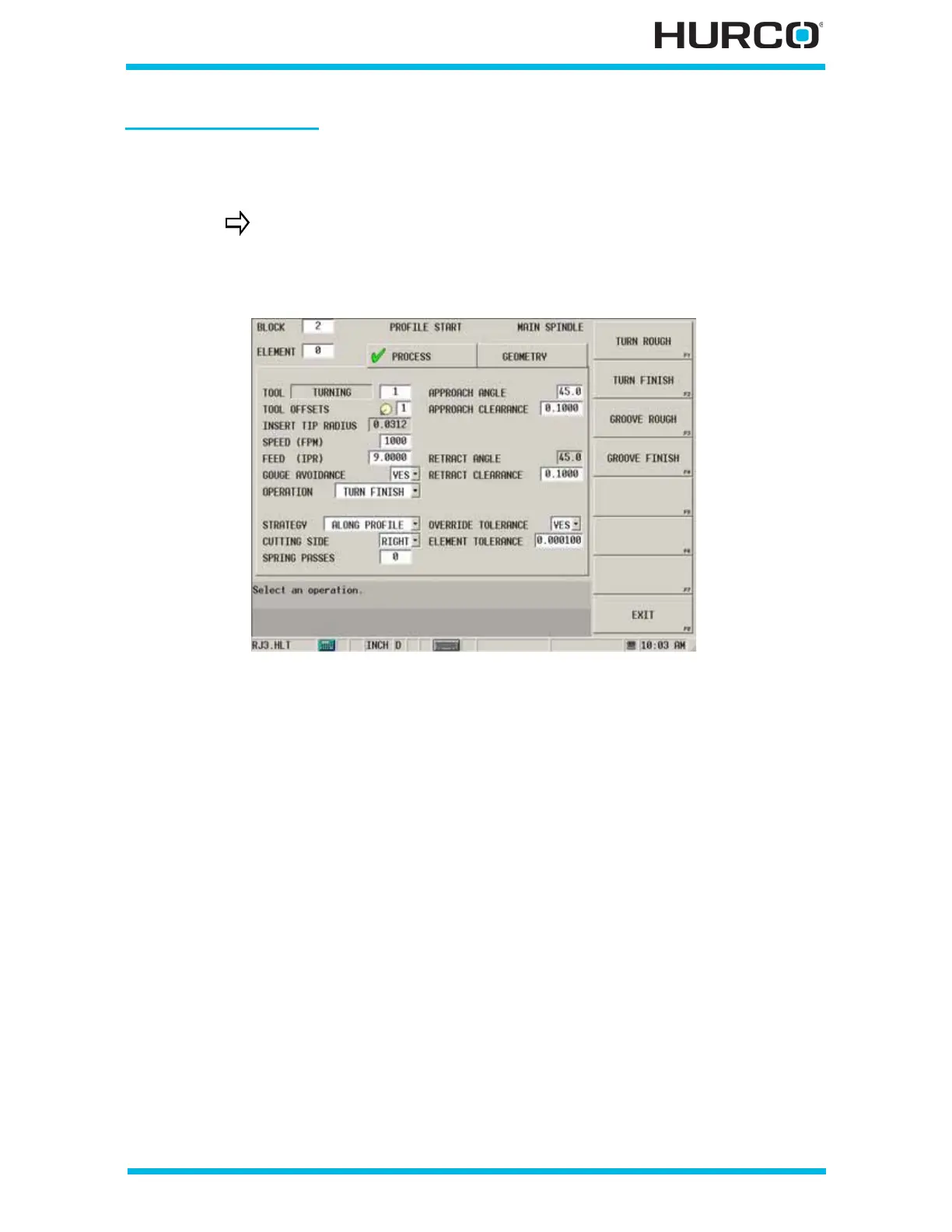

Figure 2–8. Profile Start Process Tab Turn Finish Operation screen
Refer to Figure 2–17. Sample OD Operation Elements, on page 2 -
27 for an example of a Turn Element.
