Hurco winmax - Enter Programming Information for Element #9, Face, in Block #2

WinMax Lathe Conversational Part Programming v546CO Sample Part Program 3-35
Step 18: Enter programming information for Element #9, Face, in Block #2.
Select the NEXT ELEMENT F2 softkey and the New Profile Element screen appears with
softkey selections for the types of Elements. Select FACE F1 to move off the part and to
finish perpendicular to Element #1.

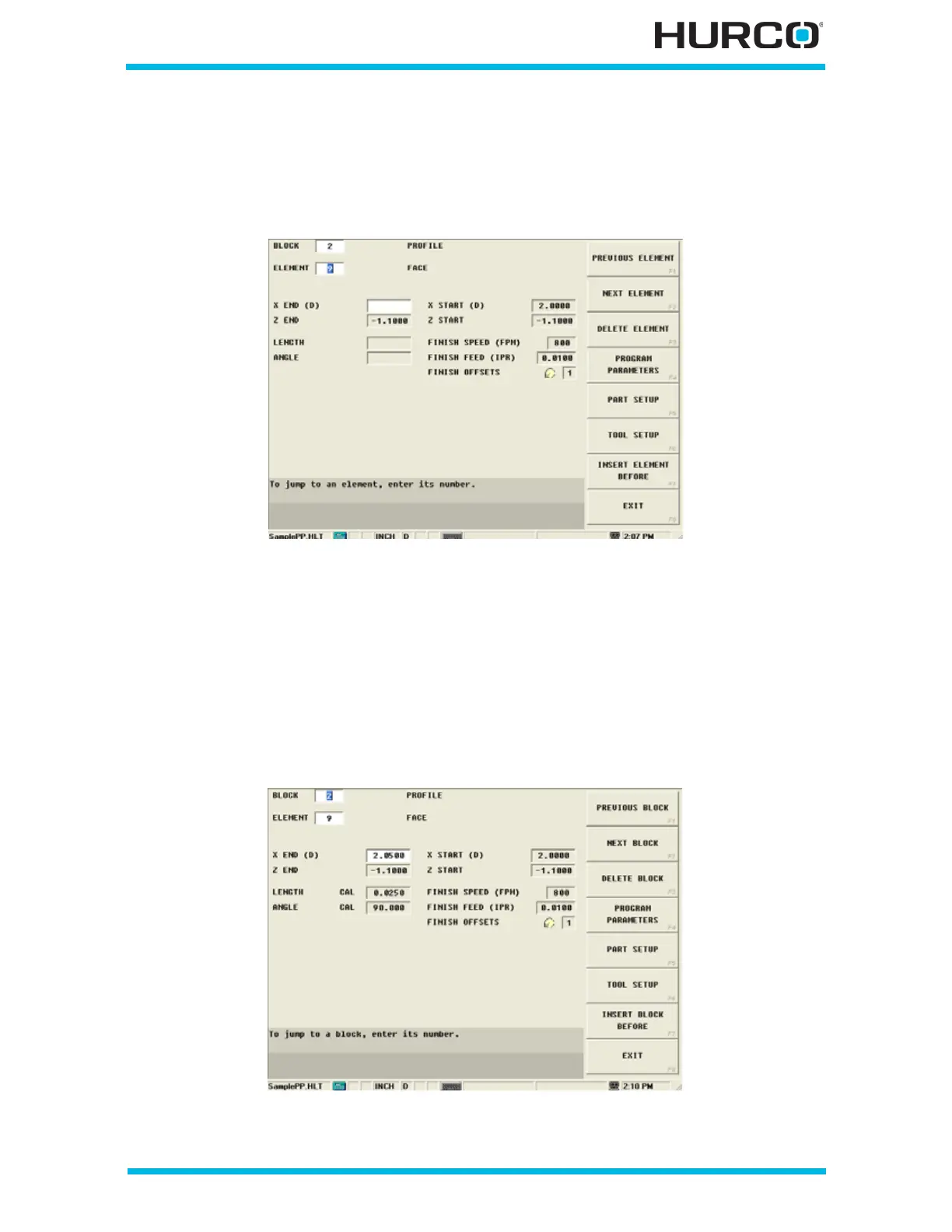

Figure 3–50. Profile Face Element Screen
Enter 2.05 to face away from the part.
• The control calculates and enters values for Length and Angle based on the
Z End value.
•The X Start (D) and Z Start values are carried over from the previous
element’s X END (D) and Z END values.
•The Finish fields are inactive because Turn Rough is selected in the Profile
Start Process tab.
Figure 3–51. Profile Face Element Screen with X End (D) value
