2 - 126 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
No Linear Y Motion

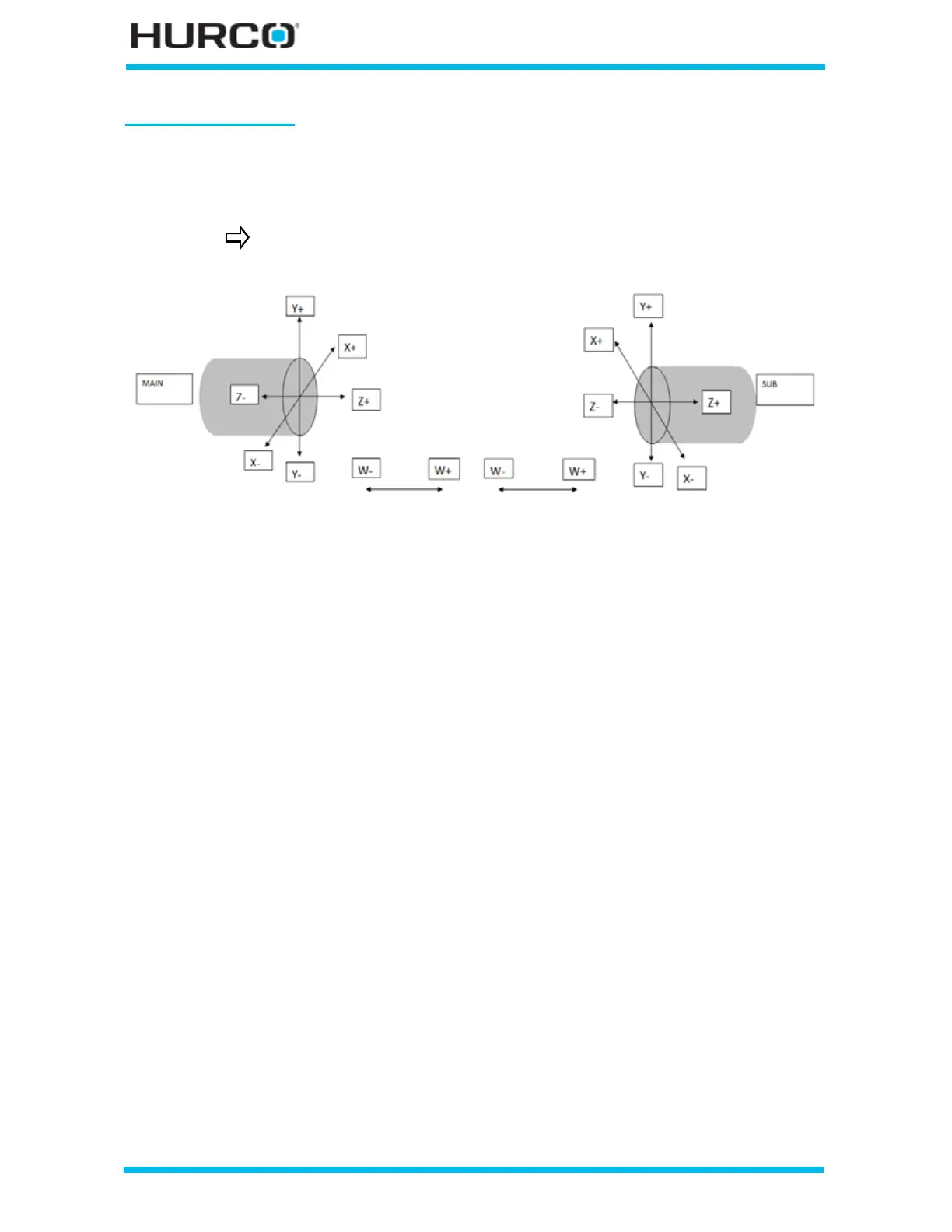

The following figure shows the part coordinate system for TMM, TMX MY, and TMX MYS
machines, for use when the Y-Axis travel of the machine is inadequate for the geometry
of the feature being machined.
Figure 2–105. Main and Sub-spindle Axial surface of the part without Linear Y
Please refer to Axial Lines and Arcs, on page 2 - 128, Axial Circle, on page 2 - 147, Axial
Frame, on page 2 - 153, Axial Slot, on page 2 - 160, Axial Flats, on page 2 - 168, or Axial
Lettering, on page 2 - 175 for information about the Geometry tab screen for the
different types of Axial Milling. For information about Axial Holes, please refer to Axial
Holes, on page 2 - 178.
TMM machines always use this mapping for Axial milling.
Main Spindle Linear Y not selected
Part Coordinate system
Sub-spindle Linear Y not selected
Part Coordinate system
