WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-95
These fields are read-only and are carried over from Tool Setup for the tool specified in
the Process tab.
• TOOL—identifies the tool number that will be used in the part program.
• TOOL OFFSETS—identifies the tool offset and orientation programmed in
Tool Setup that will be used. The tool offset defaults to the same number as
the tool.
• TOOL DIAMETER—contains the tool diameter programmed in Tool Setup for
the current tool. This field is read-only and can only be edited in Tool Setup.
Radial Frame
From the New Block (Radial Milling) softkey menu, select Radial Frame F3, and the Radial
Mill Frame screen appears with Process and Geometry tabs. Program the tool and cutting
information using the Process tab. Describe the finish shape using the Geometry tab.
Process Tab
The program determines how many rough passes to make to remove the material based
on the entries in the Radial Mill Frame screen Process tab fields.

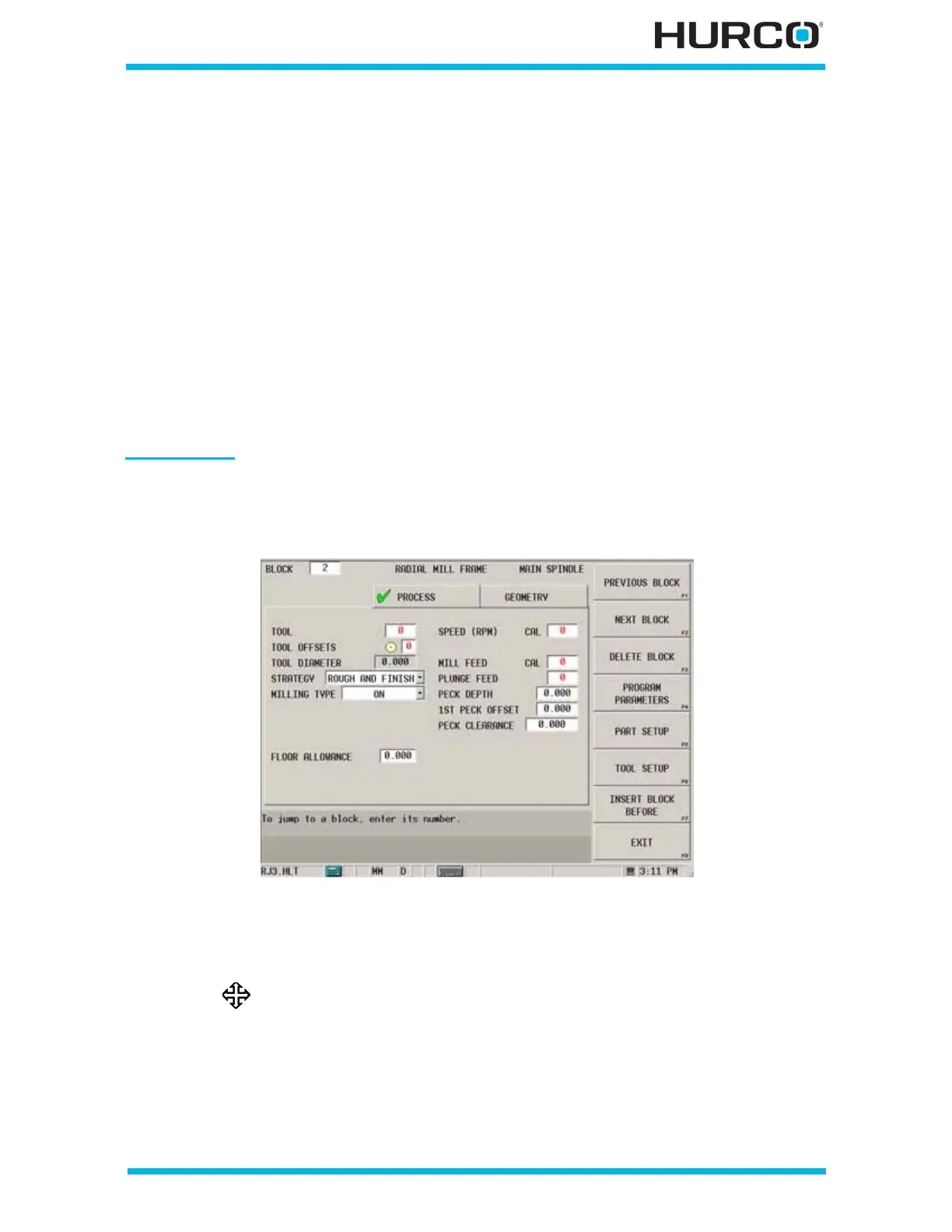

Figure 2–80. Live-Tooling Radial Mill Frame screen Process tab
The Radial Mill Frame screen Process tab fields are defined as follows:
• TOOL—identifies the tool number that will be used in the part program.
• TOOL OFFSETS—identifies the tool offset and orientation programmed in
Tool Setup that will be used. The tool offset defaults to the same number as
the tool.
Please refer to Axial Frame, on page 2 - 153 for Axial Mill Frame
screen Process tab field definitions.
