3 - 12 Sample P art Program v546CO WinMax Lathe Conversational Part Programming
Step 6: Enter programming information for Element #1, Face, in Block #1.
Profiles contain Elements that describe the profile shape. Move the cursor to the Element
field (below the Block field) and select the NEXT ELEMENT F2 softkey. The New Profile
Element screen appears with softkey selections for the types of Elements.

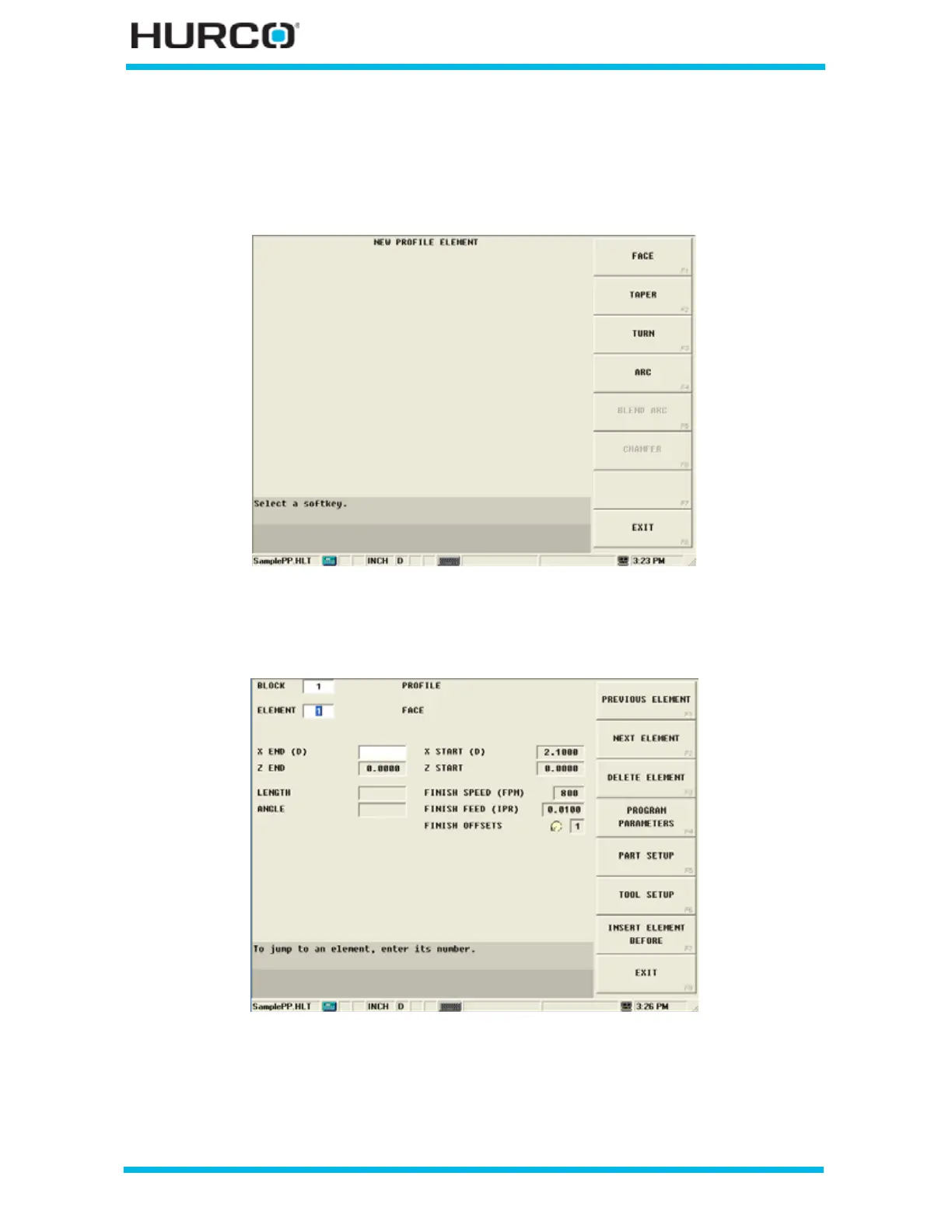

Figure 3–20. New Profile Element Screen
Select FACE F1 to program the first move to cut down the face of the material.
Figure 3–21. Profile Face Element Screen
To Next Page
