WinMax Lathe Conversational Part Programming v546CO Sample Part Program 3-13
Enter an X End (D) value (-0.0500) that will cause the tool to cut past the centerline of
the stock.
• The control calculates and enters values for Length and Angle based on the
X End value.
•The X Start (D) and Z Start values are carried over from the previous
element’s X END (D) and Z END values.
•The Finish fields are inactive because Turn Rough is selected in the Profile
Start Process tab.

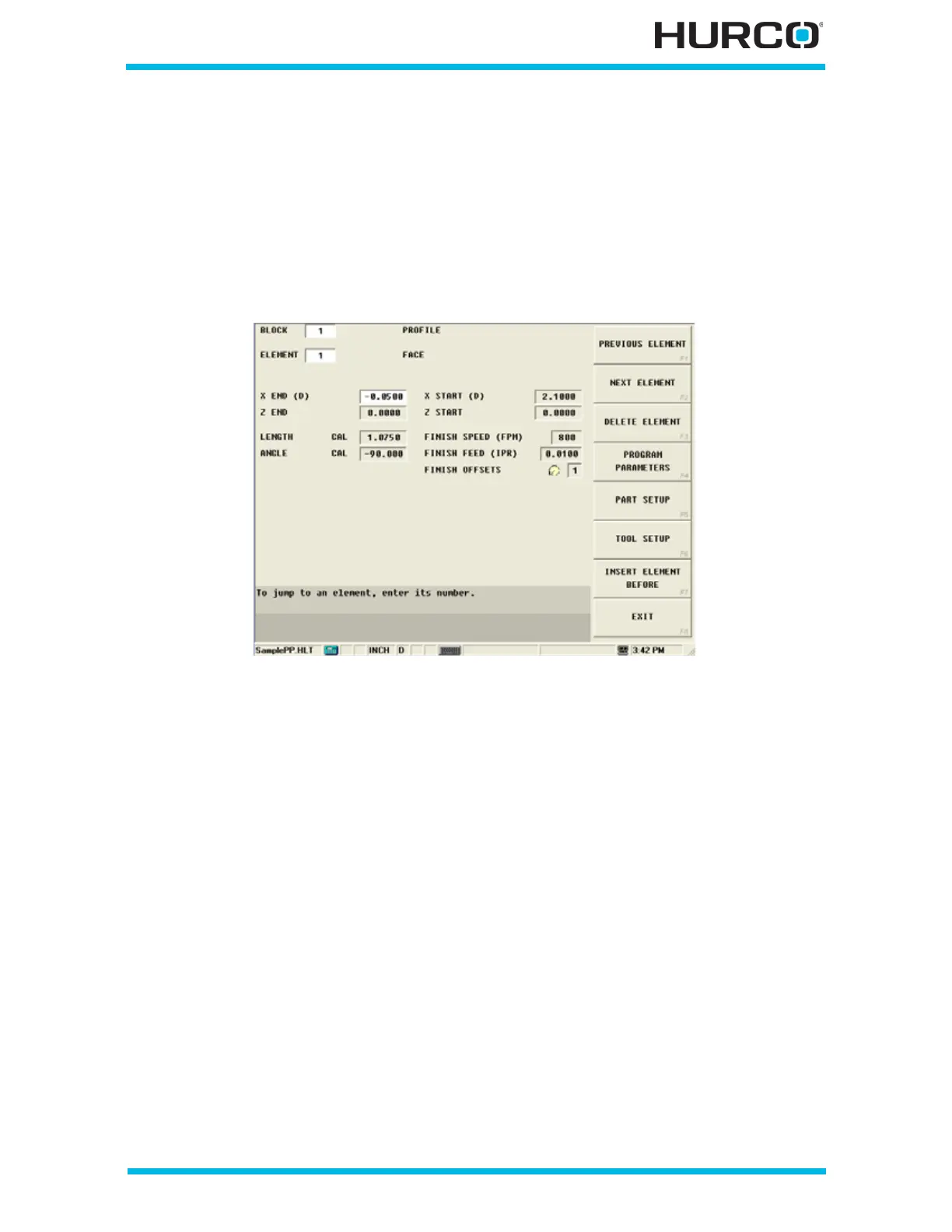

Figure 3–22. Profile Face Screen with X End value
