WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-127
Linear Y Motion
The following figure shows the Y-Axis coordinate system mapping for TMX MY and TMX
MYS machines. When Rectangular Coordinates and Linear Y Motion are selected on the
Geometry tab, linear Y-axis motion occurs using the combined motion of the X and X’
physical axes.

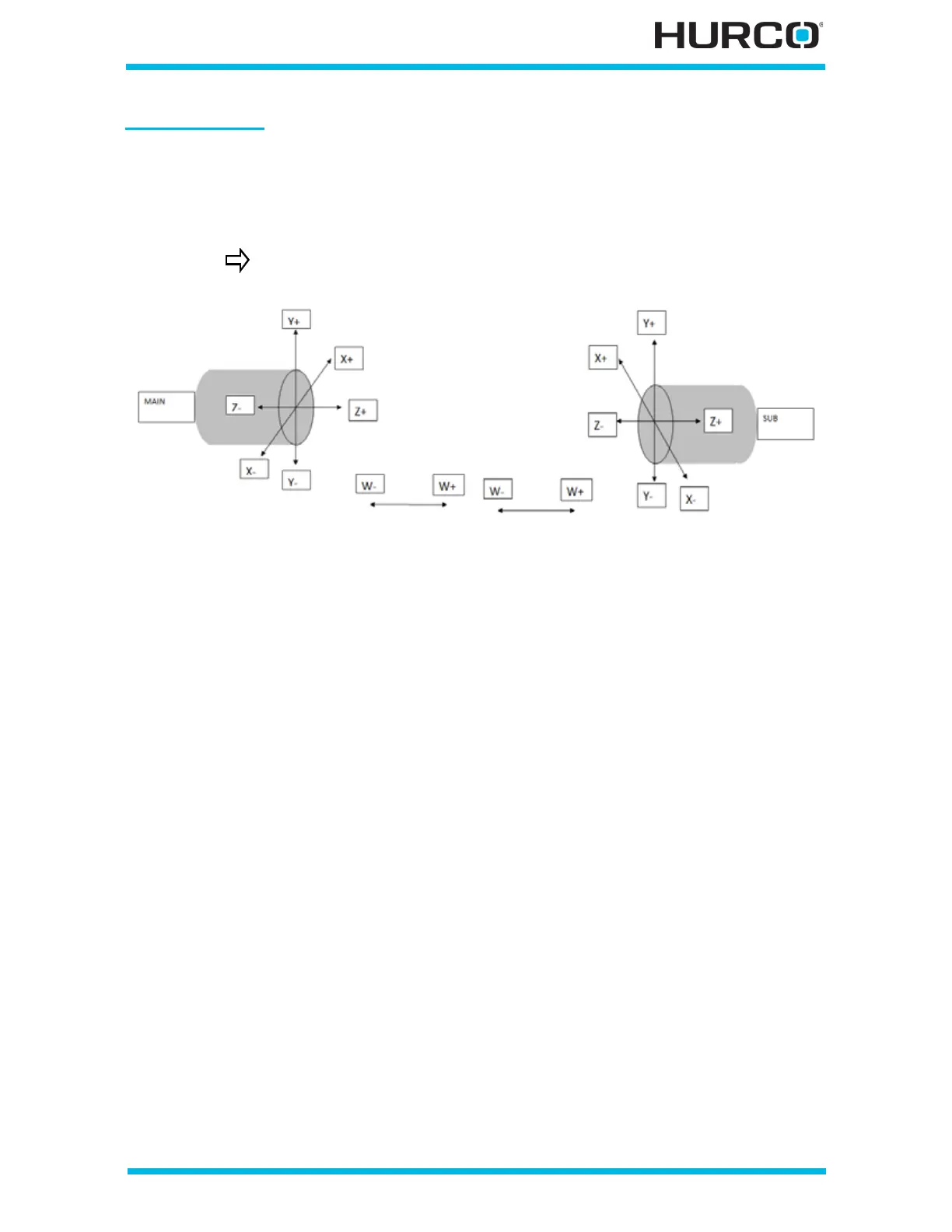

Figure 2–106. Main and Sub-spindle Axial surface of the part with Linear Y
Please refer to Axial Lines and Arcs, on page 2 - 128, Axial Circle, on page 2 - 147, Axial
Frame, on page 2 - 153, Axial Slot, on page 2 - 160, Axial Flats, on page 2 - 168, or Axial
Lettering, on page 2 - 175 for information about the Geometry tab screen for the
different types of Axial Milling. For information about Axial Holes, please refer to Axial
Holes, on page 2 - 178.
TMM machines do not use this mapping.
Main Spindle Linear Y selected
Part Coordinate system
Sub-spindle Linear Y selected
Part Coordinate system
