WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-171
Geometry Tab
Finishing follows the geometry of the contour defined in the Geometry tab. The fields on
the Geometry tab are defined as follows:
• COORDINATES—defines the coordinates as either Rectangular or Polar.
• Rectangular coordinates are used when working from a flat drawing.
• Polar coordinates move around the cylinder as specified.
The remaining fields appear based on your selection in the Coordinates field (Polar or
Rectangular):
When Polar is selected in the COORDINATES field, these fields appear:

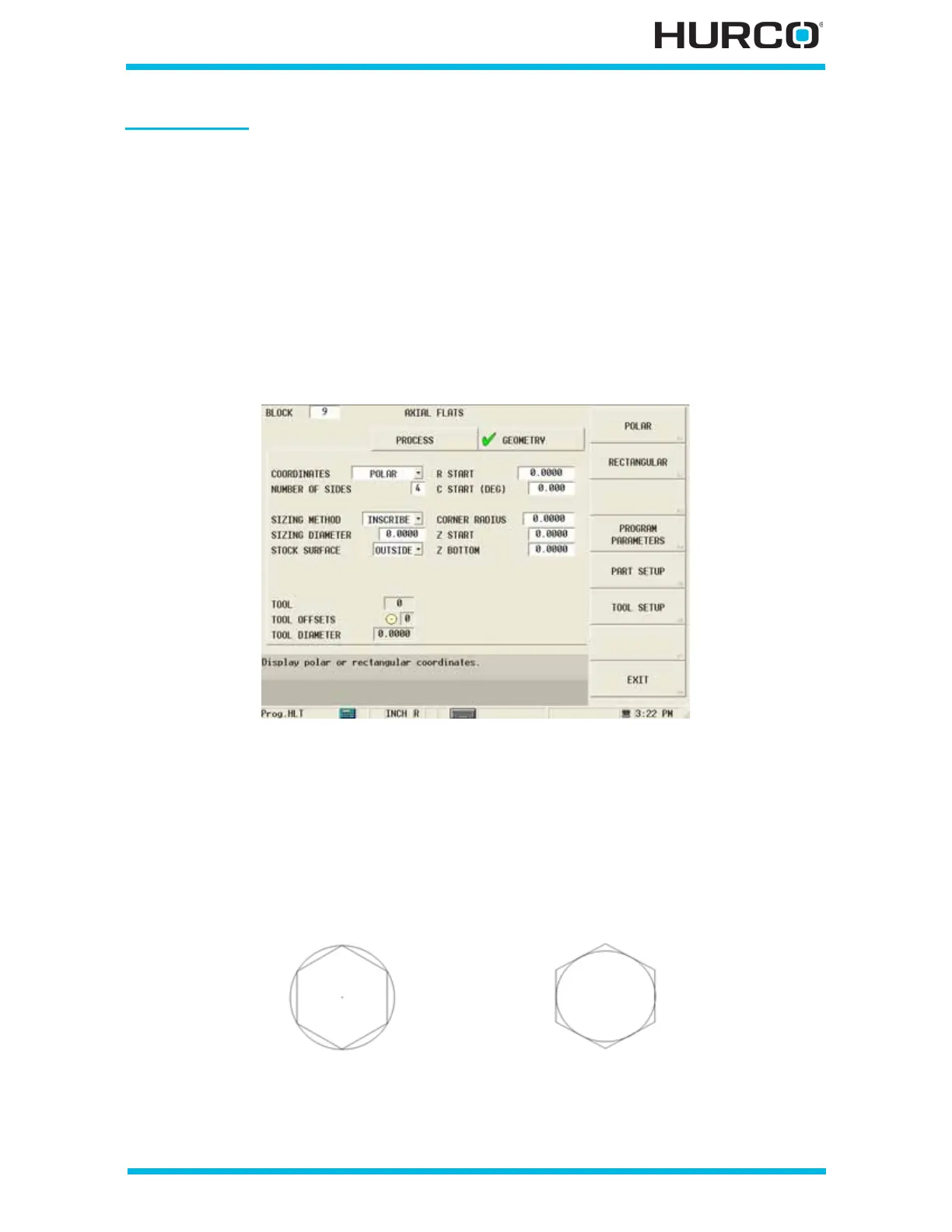

Figure 2–142. Live-Tooling Axial Mill Axial Flats screen Geometry tab: Polar Coordinates
• NUMBER OF SIDES—defines the number of sides for the polygon.
• SIZING METHOD—identifies the sizing method:
• INSCRIBE—defines the sizing method as inscribed in the sizing circle.
• ENCOMPASS—defines the sizing method as encompassing the sizing
circle.
Figure 2–143. Inscribe and Encompass
Inscribe Encompass
