3 - 30 Sample P art Program v546CO WinMax Lathe Conversational Part Programming
Step 15: Enter programming information for Element #6, Face, in Block #2.
Select the NEXT ELEMENT F2 softkey and the New Profile Element screen appears with
softkey selections for the types of Elements. Select FACE F1 to face to the next diameter
location.

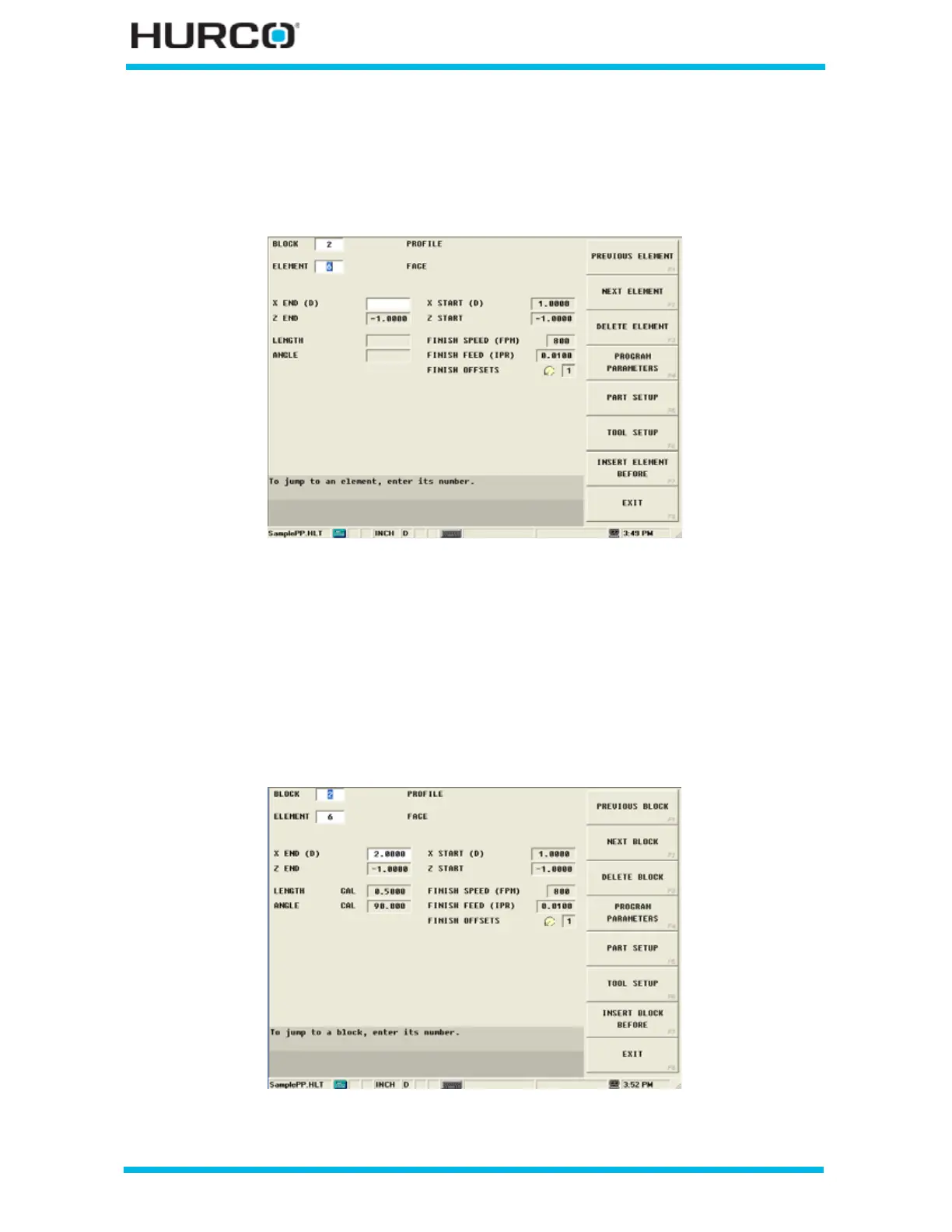

Figure 3–42. Profile Face Element Screen
Enter 2 in the X End (D) field.
• The control calculates and enters values for Length and Angle based on the
X End value.
•The X Start (D) and Z Start values are carried over from the previous
element’s X END (D) and Z END values.
•The Finish fields are inactive because Turn Rough is selected in the Profile
Start Process tab.
Figure 3–43. Profile Face Element Screen with X End (D) value
