2 - 136 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
Line
From the New Axial Contour Segment screen, select LINE F1, and the Axial Mill Contour
Line Segment screen appears with fields based on your choice in the Coordinates field
(Polar or Rectangular).
When Polar is selected in the COORDINATES field, these fields appear:

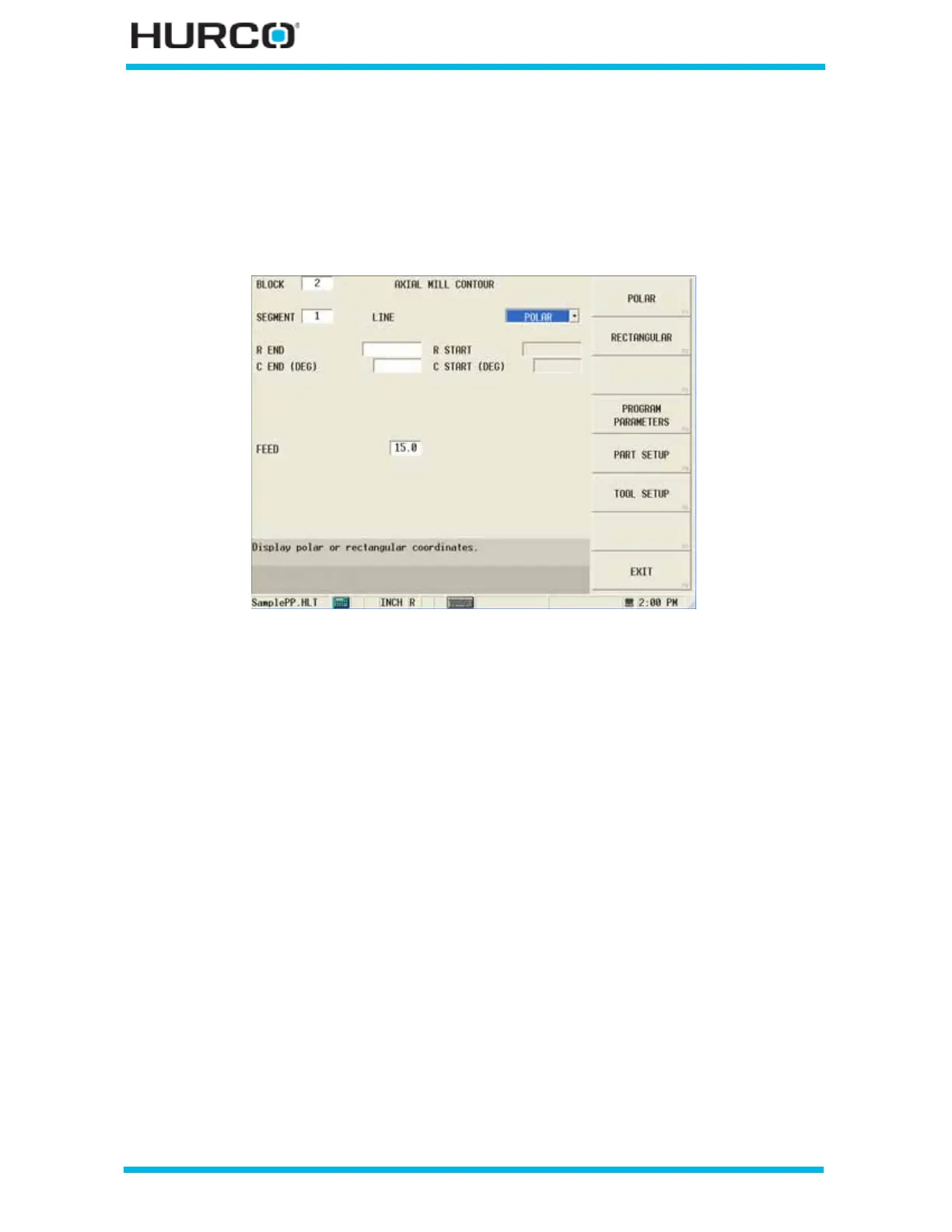

Figure 2–113. Live-Tooling Axial Mill Contour Line Segment screen: Polar Coordinates
• R END—defines the starting distance from the centerline.
• C END (DEG)—defines the angle of the line segment from the start point to
the end point, measured counterclockwise from the home position.
• R START—defines the starting distance from the centerline. This read-only
field is carried forward from the previous segment and can only be edited in
that screen.
• C START (DEG)—defines the angle of the line segment from the start point
to the end point, measured counterclockwise from the home position. This
read-only field is carried forward from the previous segment and can only be
edited in that screen.
• FEED—contains the feed rate from the previous segment. This value can be
accepted or changed.
To Next Page
