2 - 114 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
Radial Holes
From the New Block screen, select LIVE TOOLING F3. Select Radial Holes F2 from the
New Block Live Tooling softkey menu. The Radial Holes screen appears.

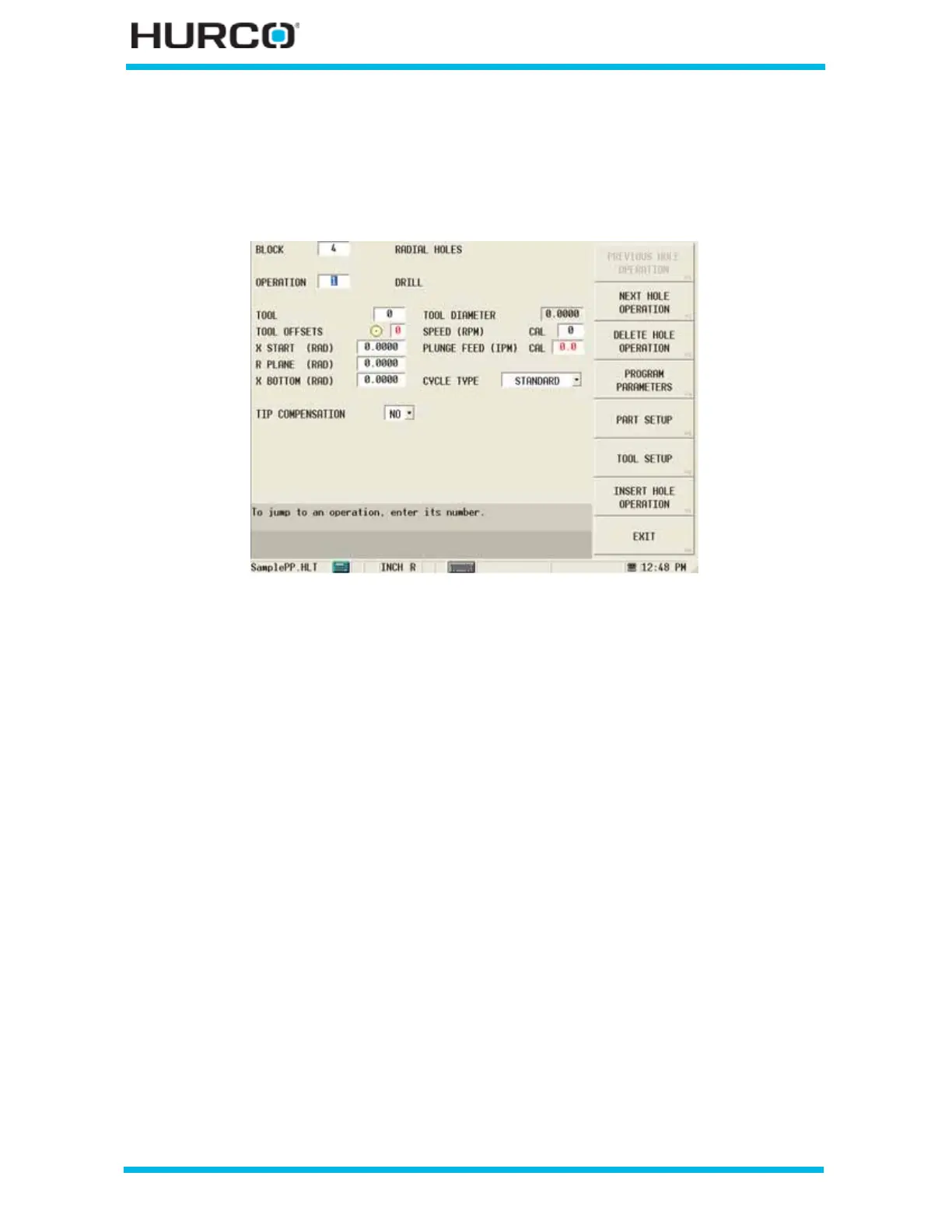

Figure 2–95. Live-Tooling Radial Holes screen
The Radial Holes screen defaults to the Drill Operation. When the cursor is in the
OPERATION field, these softkey choices appear. Upon editing the last field in each holes
operation, the cursor returns to the Operation field.
• PREVIOUS HOLE OPERATION F1—displays the previous Hole Operation in
this data block. This softkey is not available for the first operation.
• NEXT HOLE OPERATION F2—displays the next Hole Operation in this data
block. This softkey is not available for the last operation.
• DELETE HOLE OPERATION F3—deletes the current Hole Operation. Select
this softkey and a message appears asking if you are sure you want to
delete. Select OK or CANCEL.
• INSERT HOLE OPERATION F7—accesses New Radial Holes Operation
screen with these Radial Holes softkey selections:
• RADIAL HOLE CYCLE F1—accesses the Radial Holes Drill data block for
programming different types of drilling cycles. Refer to Radial Hole Cycle,
on page 2 - 115 for programming details.
• RADIAL LOCATIONS F2—accesses the Radial Holes Locations data block
for programming drilling locations. Refer to Radial Locations, on page 2 -
121 for programming details.
• RADIAL LOOP AROUND C-AXIS F3—accesses the Radial Holes Loop
Around C-Axis data block for programming holes around the C axis. Refer
to Radial Loop Around C-Axis, on page 2 - 123 for programming details.
