Circular Style

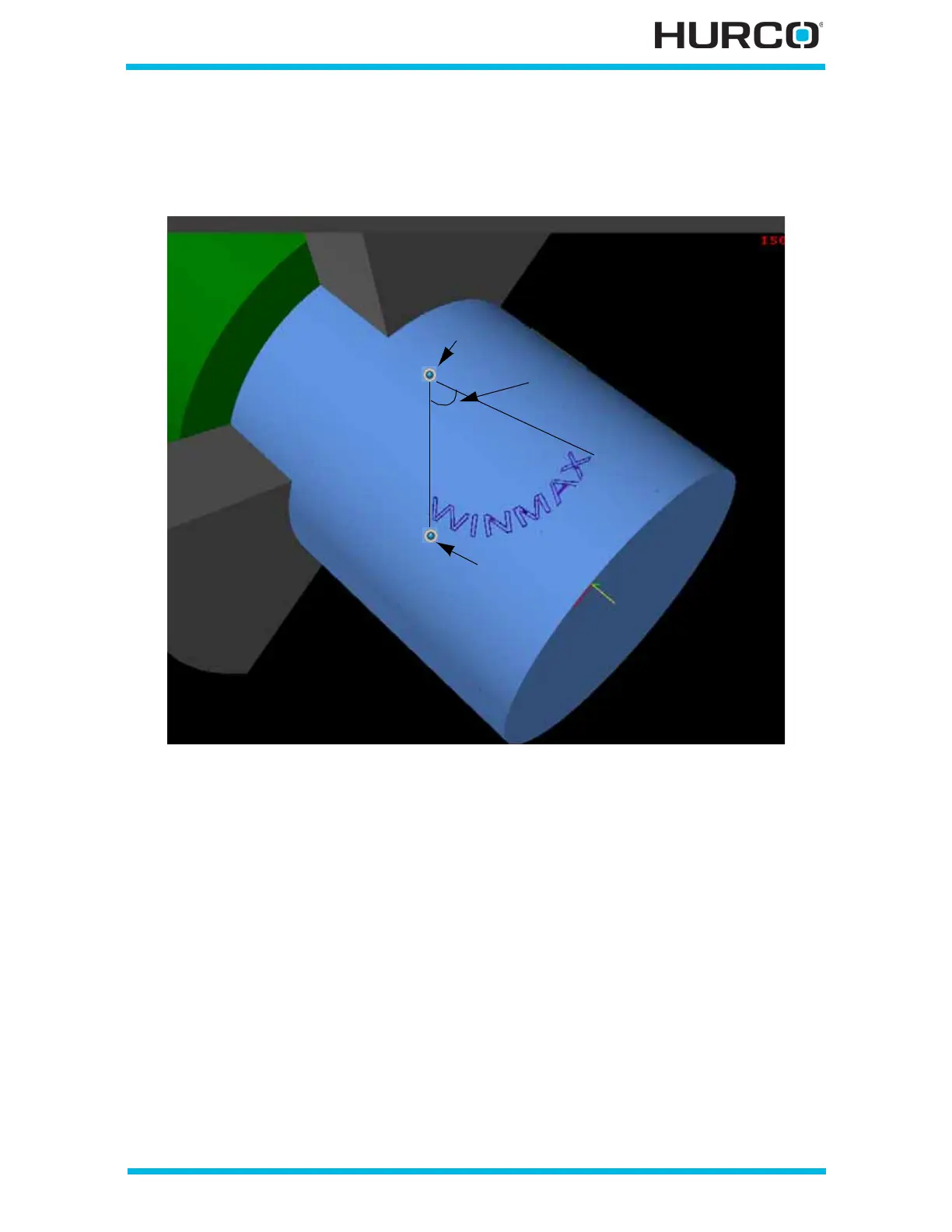

The Circular Style example shows the Reference Location is Bottom, Start of the text. The
Direction is Counterclockwise.
• Z/X’ CENTER—specifies the Center of the circle for the reference point.
• C (DEG)/Y’ CENTER—specifies the Center of the circle for the reference
point.
• WIDTH (DEG)—programs the text width as a sweep angle. Enter an angular
value from 0 to 360° when Circular Style is selected.
• DIAMETER—defines the diameter of the circle for circular text when Circular
Style is selected.
• DIRECTION—defines the direction for circular text.
Reference Location
Width (Deg)
Center
