2 - 112 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
• COORDINATES—specifies Linear or Rotary as the coordinates. The axes
listed on the screen change depending upon this selection.
Linear Style

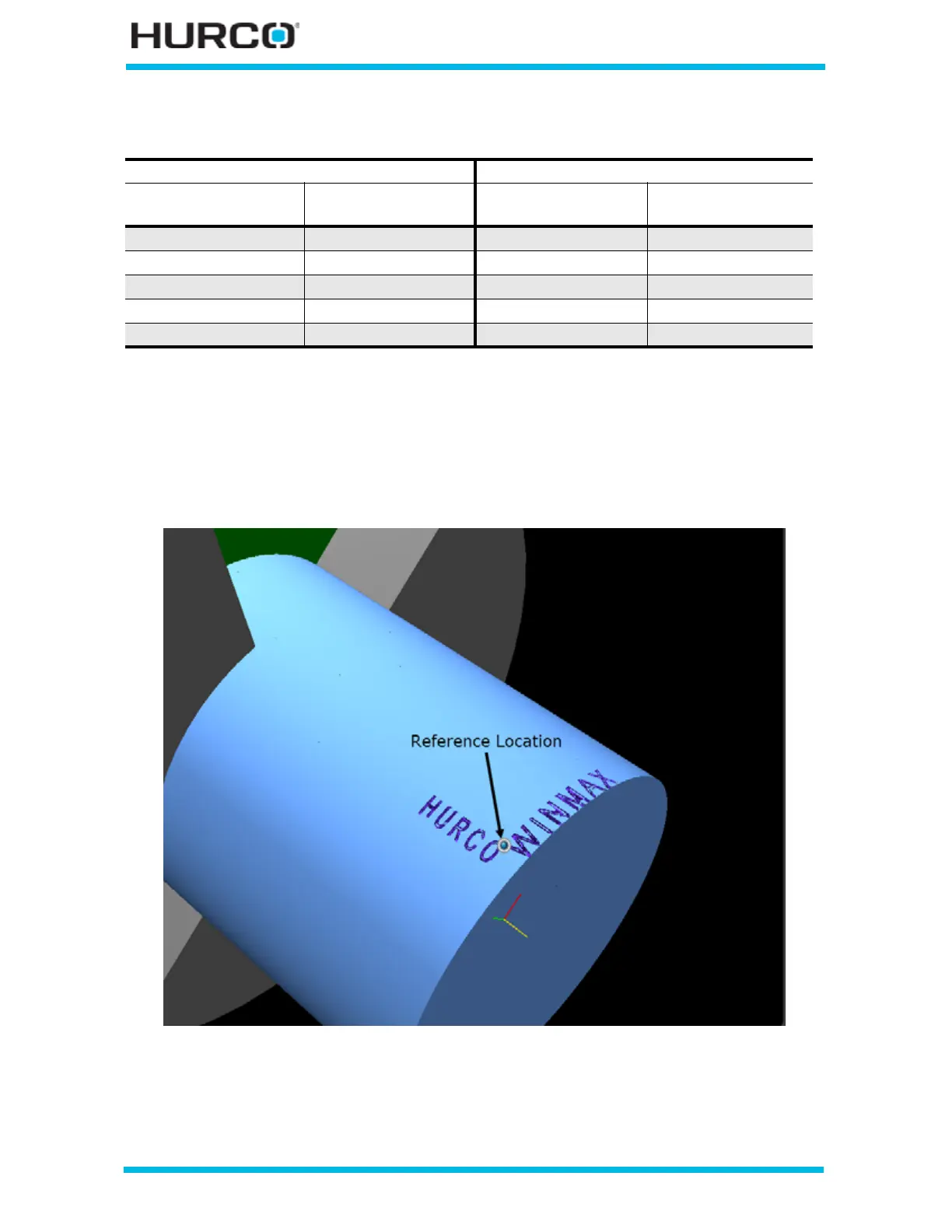

The Reference Location is a combination of the Height Ref Loc (Top, Center, or Bottom)
and the Width Ref Loc (Start, Center, or End).
• The Hurco example shows the Reference Location is Top, End of the text.
• The WinMax example shows the Reference Location is Top, Start of the text.
• Z/X’ REFERENCE—indicates the X’/Z coordinate.
• C (Deg)/Y’ REFERENCE—indicates the Y’/C (Deg) coordinate.
• WIDTH—defines the width of the text. When the default of 0.0000 is used,
the font and Height calculate the width used with Linear Style.
Linear Style Circular Style
Rotary
Coordinates
Linear
Coordinates
Rotary
Coordinates
Linear
Coordinates
Z Reference X' Reference Z Center X' Center
C Reference (Deg) Y' Reference C Center (Deg) Y' Center
X Start Z' Start X Start Z' Start
R Plane R Plane R Plane R Plane
X Bottom Z' Bottom X Bottom Z' Bottom
