3 - 14 Sample P art Program v546CO WinMax Lathe Conversational Part Programming
Step 7: Enter programming information for Element #2, Turn, in Block #1.
Move the cursor to the Element field again (below the Block field) and select the NEXT
ELEMENT F2 softkey. The New Profile Element screen appears with softkey selections for
the types of Elements.
Select TURN F3 to program the next move to turn away from the face of the material.

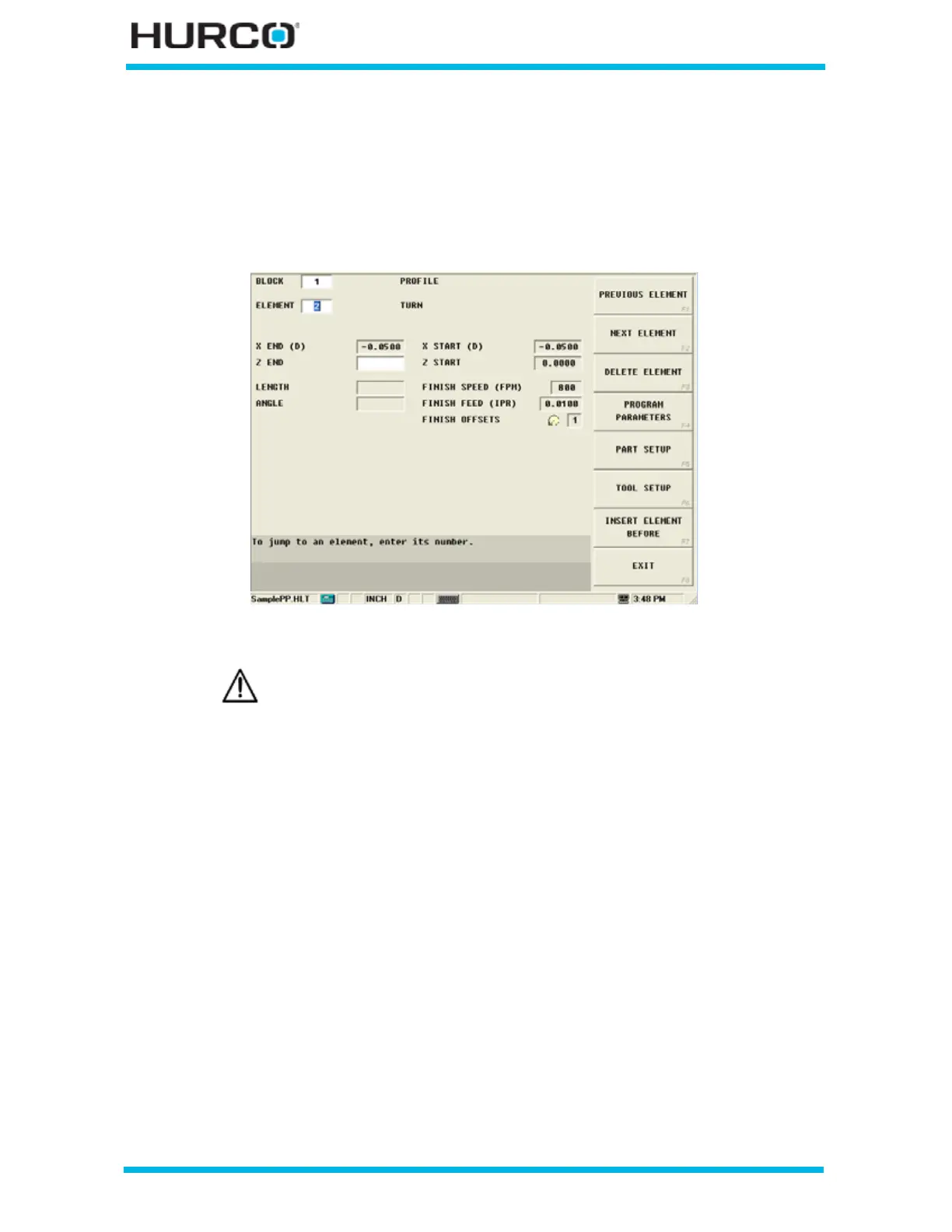

Figure 3–23. Profile Turn Element Screen
Since the first Element and the last Element must be perpendicular,
start with a Face and end with a Turn.
